Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2017-02-06 23:37:18.0 |
| Date & Time (Local) | 1395/11/19 03:07:18.0 |

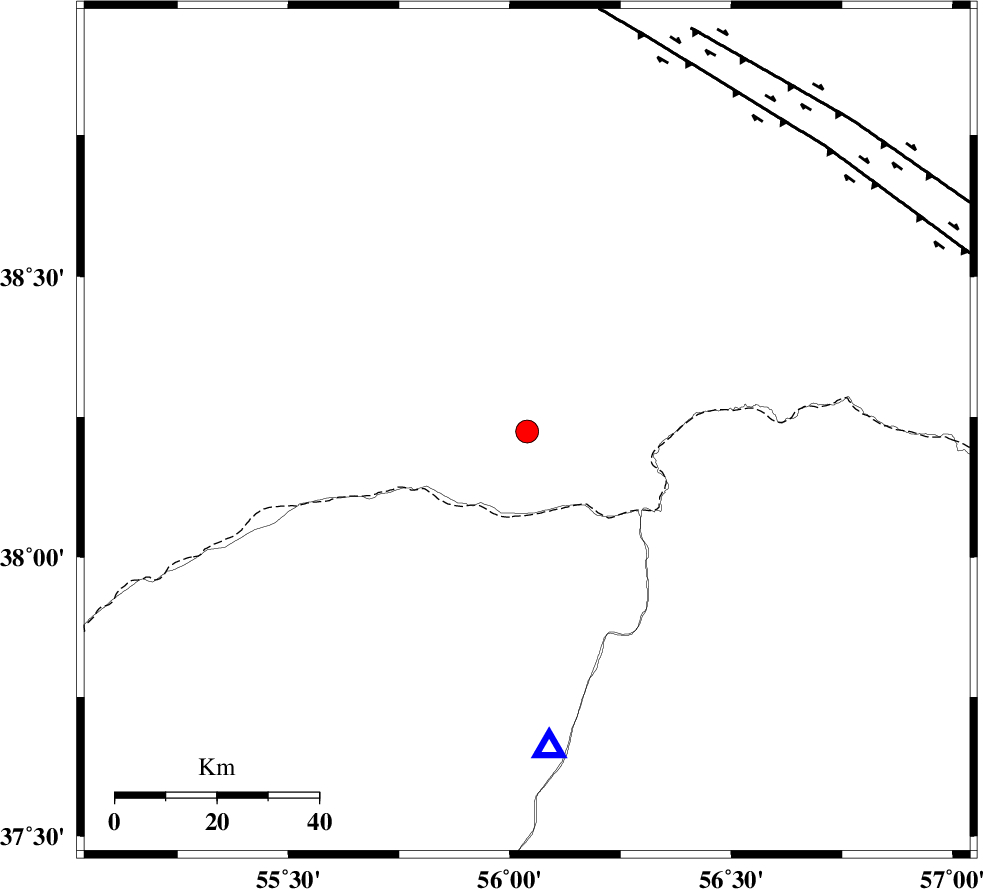

| Location | Lat:38.224 Lon: 56.039 |
| Region | Turkmenistan |
Nearest Cities |
|
| 37 km North of Moravehtappeh, Golestan Province | |
| 39 km North West of Qazanqayeh, Golestan Province | |
| 54 km North East of Karand, Golestan Province | |
| 60 km North West of Garmab, Khorasan(north) Province | |
| 60 km North West of Yekehsoud-e paeen, Khorasan(north) Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 81 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 86 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 109 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113130 | IIEES | MRVT | E | 718.3 | 0.34 | 2017-02-06 23:37:38 | 2017-02-07 06:07:00 | n |
| 113131 | IIEES | BJRD | N | 292.7 | 0.39 | 2017-02-06 23:38:00 | 2017-02-07 06:07:00 | n |
| 113132 | IIEES | BJRD | E | 558.5 | 0.39 | 2017-02-06 23:38:01 | 2017-02-07 06:07:00 | n |
| 113133 | IIEES | THKV | N | 27.1 | 0.6 | 2017-02-06 23:39:30 | 2017-02-07 06:07:00 | n |
| 113134 | IIEES | THKV | E | 25 | 0.54 | 2017-02-06 23:39:32 | 2017-02-07 06:07:00 | n |
| 113135 | IIEES | GIDE | N | 10.2 | 0.68 | 2017-02-06 23:39:38 | 2017-02-07 06:07:00 | n |
| 113136 | IIEES | GIDE | E | 7.6 | 0.49 | 2017-02-06 23:39:48 | 2017-02-07 06:07:00 | n |
| 113137 | IIEES | GHVR | E | 6.9 | 0.74 | 2017-02-06 23:40:19 | 2017-02-07 06:07:00 | n |
| 113138 | IIEES | GHVR | N | 9 | 0.8 | 2017-02-06 23:40:27 | 2017-02-07 06:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2017-02-06 23:37:29 | -0.02 | y | 62.8 | 176 | |||
| IIEES | BJRD | Z | Pg | E | 2017-02-06 23:37:35 | -5.41 | n | 4 | 134 | 115 | ||
| IIEES | SHRO | Z | Pn | E | 2017-02-06 23:37:57 | 0.07 | y | 246 | 181 | |||
| IIEES | SHRO | E | Sg | E | 2017-02-06 23:38:30 | -0.07 | y | 246 | 181 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-06 23:38:24 | -0.03 | y | 463 | 233 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-06 23:38:30 | 0.33 | y | 507 | 241 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-06 23:38:30 | -0.1 | y | 517 | 169 | |||
| IIEES | THKV | Z | Pn | E | 2017-02-06 23:38:32 | 0.04 | y | 525 | 242 | |||
| IIEES | GIDE | Z | Pn | E | 2017-02-06 23:38:32 | -3.63 | n | 4 | 560 | 257 | ||
| IIEES | GHVR | Z | Pn | E | 2017-02-06 23:38:41 | 0.5 | y | 598 | 227 | |||
| IIEES | SHRT | Z | Pn | E | 2017-02-06 23:38:45 | -0.04 | y | 636 | 142 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-06 23:38:50 | -0.69 | y | 676 | 235 | |||
| IIEES | GRMI | Z | Pn | E | 2017-02-06 23:38:55 | 0.11 | y | 713 | 278 | |||
| IIEES | BSRN | Z | Pn | E | 2017-02-06 23:38:59 | 0.17 | y | 749 | 157 | |||
| IIEES | MAKU | Z | Pn | E | 2017-02-06 23:39:29 | -0.92 | y | 994 | 281 | |||
