Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2017-02-06 12:54:31.1 |
| Date & Time (Local) | 1395/11/18 16:24:31.1 |

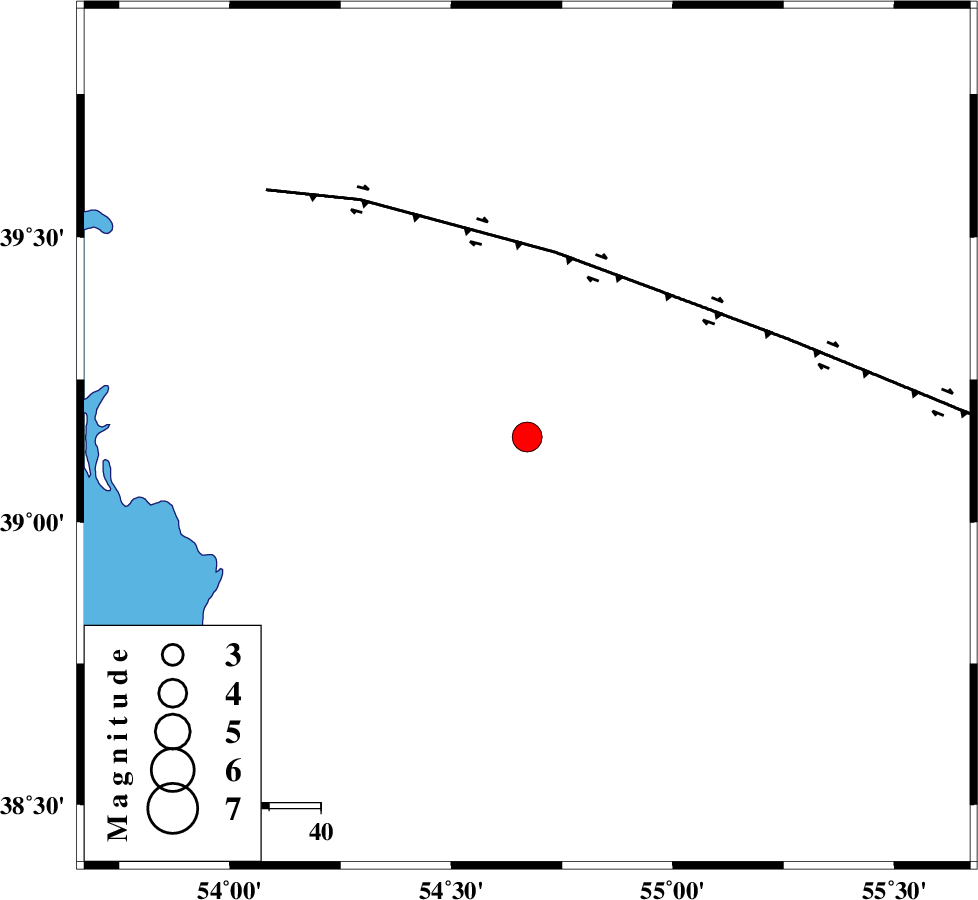

| Location | Lat:39.149 Lon: 54.671 |
| Region | Turkmenistan |
Nearest Cities |
|
| 152 km North West of Karand, Golestan Province | |
| 169 km North West of Qareh aghaj, Golestan Province | |
| 170 km North West of Dashliborun, Golestan Province | |
| 175 km South East of Turkmenbasi, Turkmenistan Province | |
| 178 km North West of Moravehtappeh, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 36 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 18 |
| Error in Latitude | >8.7 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113169 | IIEES | MRVT | N | 1040 | 0.4 | 2017-02-06 12:55:31 | 2017-02-07 07:00:00 | n |
| 113170 | IIEES | MRVT | E | 944.6 | 0.52 | 2017-02-06 12:55:37 | 2017-02-07 07:00:00 | n |
| 113171 | IIEES | BJRD | E | 1100.6 | 0.75 | 2017-02-06 12:56:07 | 2017-02-07 07:00:00 | n |
| 113172 | IIEES | BJRD | N | 754.2 | 0.75 | 2017-02-06 12:56:12 | 2017-02-07 07:00:00 | n |
| 113173 | IIEES | DAMV | N | 216.1 | 0.46 | 2017-02-06 12:56:28 | 2017-02-07 07:00:00 | n |
| 113174 | IIEES | DAMV | E | 130.7 | 0.26 | 2017-02-06 12:56:31 | 2017-02-07 07:00:00 | n |
| 113175 | IIEES | GIDE | N | 137.2 | 0.38 | 2017-02-06 12:56:36 | 2017-02-07 07:00:00 | n |
| 113176 | IIEES | GIDE | E | 170 | 0.64 | 2017-02-06 12:56:41 | 2017-02-07 07:00:00 | n |
| 113177 | IIEES | THKV | E | 305.1 | 0.57 | 2017-02-06 12:56:34 | 2017-02-07 07:00:00 | n |
| 113178 | IIEES | THKV | N | 350.4 | 0.46 | 2017-02-06 12:56:34 | 2017-02-07 07:00:00 | n |
| 113179 | IIEES | GRMI | E | 100.7 | 0.39 | 2017-02-06 12:56:56 | 2017-02-07 07:00:00 | n |
| 113180 | IIEES | GRMI | N | 142.4 | 0.39 | 2017-02-06 12:56:56 | 2017-02-07 07:00:00 | n |
| 113181 | IIEES | ZNJK | E | 59.4 | 0.64 | 2017-02-06 12:57:06 | 2017-02-07 07:00:00 | n |
| 113182 | IIEES | ZNJK | N | 61.1 | 0.4 | 2017-02-06 12:57:06 | 2017-02-07 07:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2017-02-06 12:55:04 | -0.49 | y | 207 | 143 | |||
| IIEES | MRVT | N | Sg | E | 2017-02-06 12:55:29 | -0.06 | y | 207 | 143 | |||
| IIEES | BJRD | Z | Pn | E | 2017-02-06 12:55:09 | -5.2 | n | 4 | 288 | 123 | ||
| IIEES | SHRO | Z | Pn | E | 2017-02-06 12:55:24 | 0.42 | y | 368 | 161 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-06 12:55:36 | 0.4 | y | 458 | 212 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-06 12:55:38 | -0.11 | y | 477 | 222 | |||
| IIEES | GIDE | Z | Pn | E | 2017-02-06 12:55:38 | -0.42 | y | 485 | 241 | |||
| IIEES | THKV | Z | Pn | E | 2017-02-06 12:55:39 | 0.09 | y | 491 | 224 | |||
| IIEES | GRMI | Z | Pn | E | 2017-02-06 12:55:52 | 0.28 | y | 588 | 268 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-02-06 12:55:51 | -0.98 | y | 594 | 244 | |||
| IIEES | GHVR | Z | Pn | E | 2017-02-06 12:55:53 | 0.34 | y | 601 | 212 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-06 12:55:59 | 0.27 | y | 648 | 159 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-06 12:56:00 | -0.05 | y | 657 | 220 | |||
| IIEES | NASN | Z | Pn | E | 2017-02-06 12:56:09 | 0.16 | y | 724 | 194 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-02-06 12:56:10 | -0.02 | y | 733 | 217 | |||
| IIEES | SHRT | Z | Pn | E | 2017-02-06 12:56:17 | 0.26 | y | 791 | 139 | |||
| IIEES | SNGE | Z | Pn | E | 2017-02-06 12:56:17 | 0.03 | y | 791 | 238 | |||
| IIEES | MAKU | Z | Pn | E | 2017-02-06 12:56:26 | 0.39 | y | 862 | 275 | |||
| IIEES | BSRN | Z | Pn | E | 2017-02-06 12:56:29 | 0.08 | y | 893 | 152 | |||
