Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2017-03-10 19:08:08.9 |
| Date & Time (Local) | 1395/12/20 22:38:08.9 |

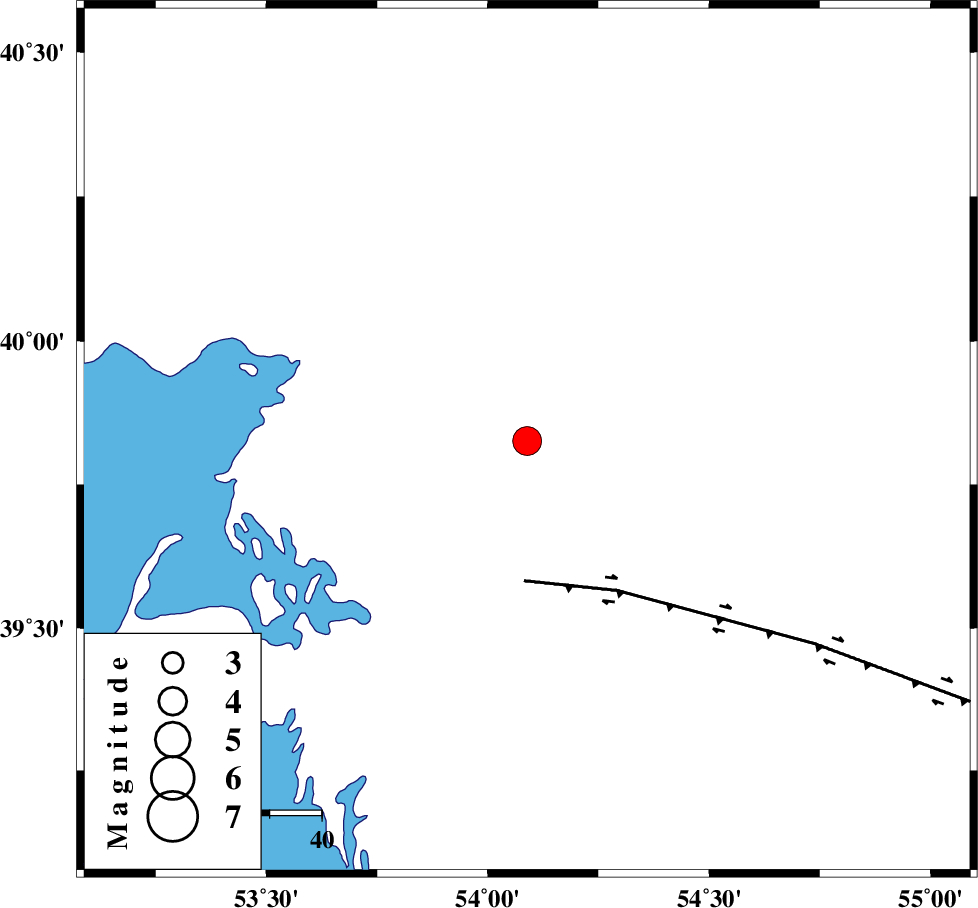

| Location | Lat:39.826 Lon: 54.089 |
| Region | Turkmenistan, 98 km South-East of Turkmenbasi |
Nearest Cities |
|
| 98 km South East of Turkmenbasi, Turkmenistan Province | |
| 242 km North West of Karand, Golestan Province | |
| 253 km North West of Dashliborun, Golestan Province | |
| 259 km North West of Qareh aghaj, Golestan Province | |
| 268 km North West of Moravehtappeh, Golestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 27 km | |
| Number of Phases | 18 |
| RMS | 0.2 |
| Number of Stations | 17 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113883 | IIEES | BJRD | E | 178.3 | 0.63 | 2017-03-10 19:10:12 | 2017-03-11 06:58:00 | n |
| 113884 | IIEES | DAMV | E | 76.6 | 0.57 | 2017-03-10 19:10:13 | 2017-03-11 06:58:00 | n |
| 113885 | IIEES | THKV | E | 90.3 | 0.4 | 2017-03-10 19:10:15 | 2017-03-11 06:58:00 | n |
| 113886 | IIEES | THKV | N | 84.8 | 0.62 | 2017-03-10 19:10:16 | 2017-03-11 06:58:00 | n |
| 113887 | IIEES | GRMI | N | 125.4 | 0.31 | 2017-03-10 19:10:28 | 2017-03-11 06:58:00 | n |
| 113888 | IIEES | GRMI | E | 154.7 | 0.36 | 2017-03-10 19:10:30 | 2017-03-11 06:58:00 | n |
| 113889 | IIEES | ZNJK | E | 110.3 | 0.37 | 2017-03-10 19:10:29 | 2017-03-11 06:58:00 | n |
| 113890 | IIEES | ZNJK | N | 105.9 | 0.31 | 2017-03-10 19:10:32 | 2017-03-11 06:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2017-03-10 19:08:53 | 0.04 | y | 297 | 144 | |||
| IIEES | BJRD | Z | Pn | E | 2017-03-10 19:09:02 | 0 | y | 373 | 128 | |||
| IIEES | SHRO | Z | Pn | E | 2017-03-10 19:09:13 | 0.11 | y | 456 | 158 | |||
| IIEES | DAMV | Z | Pn | E | 2017-03-10 19:09:19 | 0.1 | y | 502 | 203 | |||
| IIEES | CHTH | Z | Pn | E | 2017-03-10 19:09:19 | -0.14 | y | 507 | 212 | |||
| IIEES | THKV | Z | Pn | E | 2017-03-10 19:09:20 | -0.04 | y | 518 | 214 | |||
| IIEES | GRMI | Z | Pn | E | 2017-03-10 19:09:32 | 8.63 | n | 4 | 546 | 260 | ||
| IIEES | ZNJK | Z | Pn | E | 2017-03-10 19:09:29 | 0.16 | y | 588 | 235 | |||
| IIEES | GHVR | Z | Pn | E | 2017-03-10 19:09:36 | 0.17 | y | 645 | 204 | |||
| IIEES | ASAO | Z | Pn | E | 2017-03-10 19:09:42 | -0.03 | y | 688 | 213 | |||
| IIEES | TABS | Z | Pn | E | 2017-03-10 19:09:48 | 0.13 | y | 737 | 158 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-03-10 19:09:52 | 0.11 | y | 769 | 210 | |||
| IIEES | NASN | Z | Pn | E | 2017-03-10 19:09:54 | -0.24 | y | 788 | 189 | |||
| IIEES | SNGE | Z | Pn | E | 2017-03-10 19:09:55 | 0.1 | y | 794 | 231 | |||
| IIEES | MAKU | Z | Pn | E | 2017-03-10 19:09:59 | 2.35 | n | 4 | 809 | 269 | ||
| IIEES | YZKH | Z | Pn | E | 2017-03-10 19:09:59 | -0.15 | y | 826 | 177 | |||
| IIEES | SHRT | Z | Pn | E | 2017-03-10 19:10:05 | -0.34 | y | 881 | 139 | |||
| IIEES | ILBA | Z | Pn | E | 2017-03-10 19:10:18 | -0.6 | y | 984 | 228 | |||
