Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2017-03-15 16:05:07.4 |
| Date & Time (Local) | 1395/12/25 19:35:07.4 |

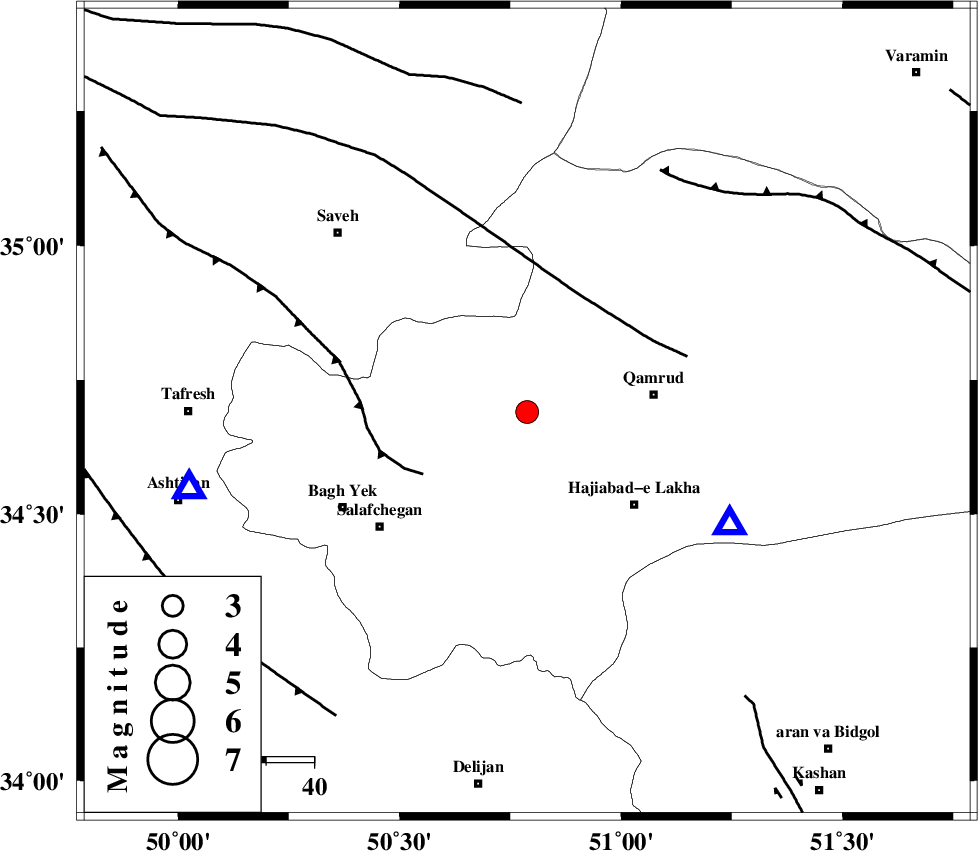

| Location | Lat:34.69 Lon: 50.788 |
| Region | Qom Province, 9 km of Qom |
Nearest Cities |
|
| 9 km North of Qom, Qom Province | |
| 25 km East of Gazran, Qom Province | |
| 26 km West of Qamrud, Qom Province | |
| 29 km North West of Hajiabad-e lakha, Qom Province | |
| 35 km North of Kahak, Qom Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| INDES_F (Length: 98 km) , Distance to epicenter: 25 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 27 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 58 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 16 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114120 | IIEES | GHVR | E | 2683.8 | 0.34 | 2017-03-15 16:05:33 | 2017-03-18 09:15:00 | n |
| 114121 | IIEES | ASAO | N | 1157.2 | 0.6 | 2017-03-15 16:05:32 | 2017-03-18 09:15:00 | n |
| 114122 | IIEES | KHMZ | N | 529.1 | 0.36 | 2017-03-15 16:05:46 | 2017-03-18 09:15:00 | n |
| 114123 | IIEES | THKV | N | 1000.3 | 0.08 | 2017-03-15 16:05:48 | 2017-03-18 09:15:00 | n |
| 114124 | IIEES | CHTH | E | 355.6 | 0.24 | 2017-03-15 16:05:51 | 2017-03-18 09:15:00 | n |
| 114125 | IIEES | DAMV | E | 568 | 0.16 | 2017-03-15 16:05:54 | 2017-03-18 09:15:00 | n |
| 114126 | IIEES | DAMV | N | 555.4 | 0.41 | 2017-03-15 16:05:54 | 2017-03-18 09:15:00 | n |
| 114127 | IIEES | GIDE | E | 125 | 0.91 | 2017-03-15 16:06:33 | 2017-03-18 09:15:00 | n |
| 114128 | IIEES | GIDE | N | 147.8 | 0.56 | 2017-03-15 16:06:37 | 2017-03-18 09:15:00 | n |
| 114129 | IIEES | NASN | E | 87.6 | 0.33 | 2017-03-15 16:06:26 | 2017-03-18 09:15:00 | n |
| 114130 | IIEES | ILBA | E | 27.8 | 0.43 | 2017-03-15 16:07:15 | 2017-03-18 09:15:00 | n |
| 114131 | IIEES | SHRO | N | 12.3 | 0.54 | 2017-03-15 16:07:56 | 2017-03-18 09:15:00 | n |
| 114132 | IIEES | TABS | N | 8.9 | 0.64 | 2017-03-15 16:08:25 | 2017-03-18 09:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2017-03-15 16:05:16 | 0.17 | y | 47.9 | 119 | |||
| IIEES | ASAO | Z | Pg | E | 2017-03-15 16:05:19 | -0.09 | y | 71.7 | 258 | |||
| IIEES | KHMZ | Z | Pg | E | 2017-03-15 16:05:28 | -0.98 | y | 130 | 216 | |||
| IIEES | THKV | Z | Pg | E | 2017-03-15 16:05:30 | -0.21 | y | 136 | 3 | |||
| IIEES | CHTH | Z | Pg | E | 2017-03-15 16:05:30 | -0.63 | y | 139 | 13 | |||
| IIEES | DAMV | Z | Pg | E | 2017-03-15 16:05:31 | -0.61 | y | 150 | 46 | |||
| IIEES | GIDE | Z | Pn | E | 2017-03-15 16:05:48 | 0.6 | y | 260 | 342 | |||
| IIEES | NASN | Z | Pn | E | 2017-03-15 16:05:50 | 0.47 | y | 281 | 138 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-03-15 16:05:51 | 0.07 | y | 291 | 320 | |||
| IIEES | SNGE | Z | Pn | E | 2017-03-15 16:05:55 | 1.15 | y | 318 | 279 | |||
| IIEES | YZKH | Z | Pn | E | 2017-03-15 16:06:09 | 0.02 | y | 436 | 125 | |||
| IIEES | ILBA | Z | Pn | E | 2017-03-15 16:06:09 | -0.32 | y | 439 | 256 | |||
| IIEES | SHRO | Z | Pn | E | 2017-03-15 16:06:17 | 0.95 | y | 497 | 71 | |||
| IIEES | MRVT | Z | Pn | E | 2017-03-15 16:06:26 | -0.17 | y | 580 | 54 | |||
| IIEES | TABS | Z | Pn | E | 2017-03-15 16:06:28 | -0.08 | y | 595 | 99 | |||
| IIEES | BSRN | Z | Pn | E | 2017-03-15 16:06:58 | -0.21 | y | 833 | 109 | |||
