Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2017-03-16 00:48:25.7 |
| Date & Time (Local) | 1395/12/26 04:18:25.7 |

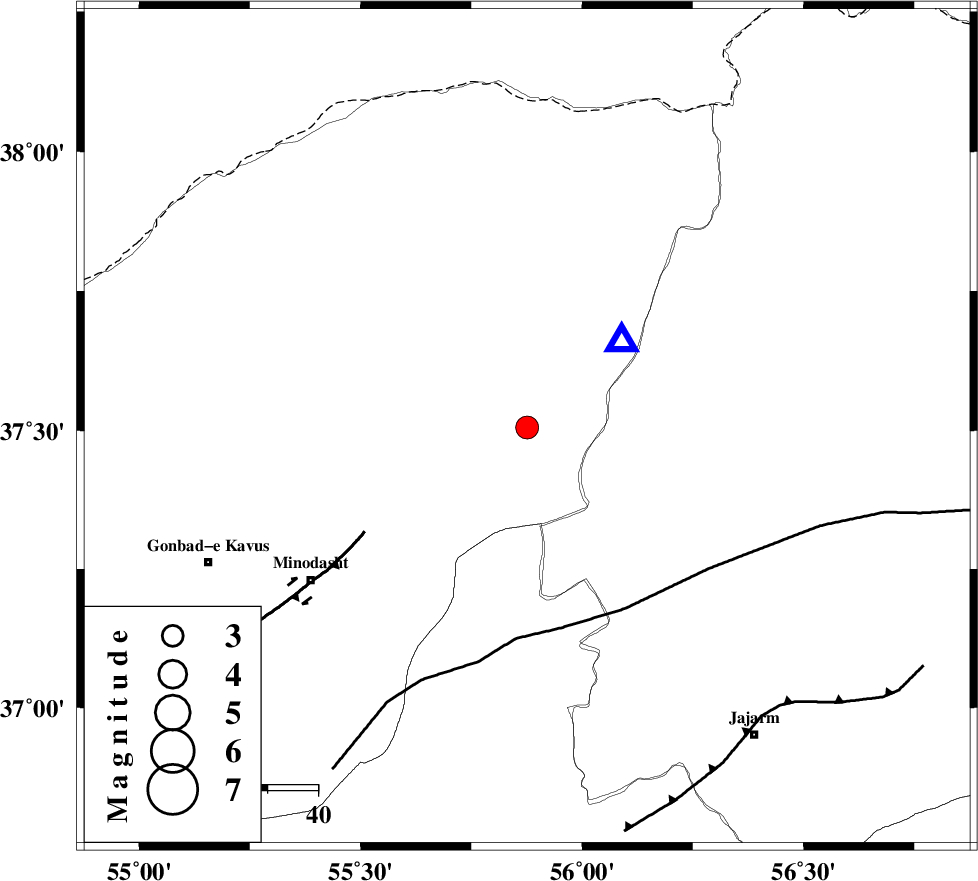

| Location | Lat:37.505 Lon: 55.876 |
| Region | Golestan Province, 37 km North-East of Kalaleh |
Nearest Cities |
|
| 16 km South of Golidagh, Golestan Province | |
| 23 km East of Pashikmar, Golestan Province | |
| 27 km North East of Aq qamish, Golestan Province | |
| 29 km North East of Ajen sangarli, Golestan Province | |
| 35 km North East of Tamarqarquzi-e sofla, Golestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 41 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 74 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 93 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114158 | IIEES | MRVT | N | 5795.2 | 0.17 | 2017-03-16 00:48:36 | 2017-03-18 10:59:00 | n |
| 114159 | IIEES | MRVT | E | 5878.2 | 0.2 | 2017-03-16 00:48:36 | 2017-03-18 10:59:00 | n |
| 114160 | IIEES | BJRD | N | 1006.2 | 0.6 | 2017-03-16 00:49:10 | 2017-03-18 10:59:00 | n |
| 114161 | IIEES | BJRD | E | 594.8 | 0.3 | 2017-03-16 00:49:10 | 2017-03-18 10:59:00 | n |
| 114162 | IIEES | SHRO | E | 342.3 | 0.47 | 2017-03-16 00:49:15 | 2017-03-18 10:59:00 | n |
| 114163 | IIEES | SHRO | N | 205.8 | 0.24 | 2017-03-16 00:49:15 | 2017-03-18 10:59:00 | n |
| 114164 | IIEES | DAMV | E | 19.8 | 0.67 | 2017-03-16 00:50:21 | 2017-03-18 10:59:00 | n |
| 114165 | IIEES | DAMV | N | 17.6 | 0.49 | 2017-03-16 00:50:26 | 2017-03-18 10:59:00 | n |
| 114166 | IIEES | TABS | N | 18.8 | 0.36 | 2017-03-16 00:50:44 | 2017-03-18 10:59:00 | n |
| 114167 | IIEES | CHTH | N | 28.4 | 0.94 | 2017-03-16 00:50:41 | 2017-03-18 10:59:00 | n |
| 114168 | IIEES | THKV | E | 16.8 | 0.71 | 2017-03-16 00:50:49 | 2017-03-18 10:59:00 | n |
| 114169 | IIEES | THKV | N | 15 | 0.71 | 2017-03-16 00:50:59 | 2017-03-18 10:59:00 | n |
| 114170 | IIEES | YZKH | N | 6.1 | 0.71 | 2017-03-16 00:51:21 | 2017-03-18 10:59:00 | n |
| 114171 | IIEES | YZKH | E | 6 | 1 | 2017-03-16 00:51:24 | 2017-03-18 10:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2017-03-16 00:48:30 | -0.04 | y | 25.4 | 48 | |||
| IIEES | BJRD | Z | Pg | E | 2017-03-16 00:48:48 | 0.15 | y | 137 | 80 | |||
| IIEES | SHRO | Z | Pg | E | 2017-03-16 00:48:53 | -0.23 | y | 166 | 176 | |||
| IIEES | SHRO | E | Sg | E | 2017-03-16 00:49:13 | 0.14 | y | 166 | 176 | |||
| IIEES | DAMV | Z | Pn | E | 2017-03-16 00:49:24 | 0.55 | y | 407 | 240 | |||
| IIEES | TABS | Z | Pn | E | 2017-03-16 00:49:28 | 0.04 | y | 442 | 165 | |||
| IIEES | CHTH | Z | Pn | E | 2017-03-16 00:49:30 | -0.26 | y | 460 | 249 | |||
| IIEES | THKV | Z | Pn | E | 2017-03-16 00:49:32 | -0.02 | y | 480 | 250 | |||
| IIEES | YZKH | Z | Pn | E | 2017-03-16 00:49:45 | -0.03 | y | 579 | 192 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-03-16 00:49:53 | -0.18 | y | 646 | 264 | |||
| IIEES | BSRN | Z | Pn | E | 2017-03-16 00:49:57 | -0.35 | y | 683 | 153 | |||
