Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2017-04-05 06:38:06.5 |
| Date & Time (Local) | 1396/1/16 11:08:06.5 |

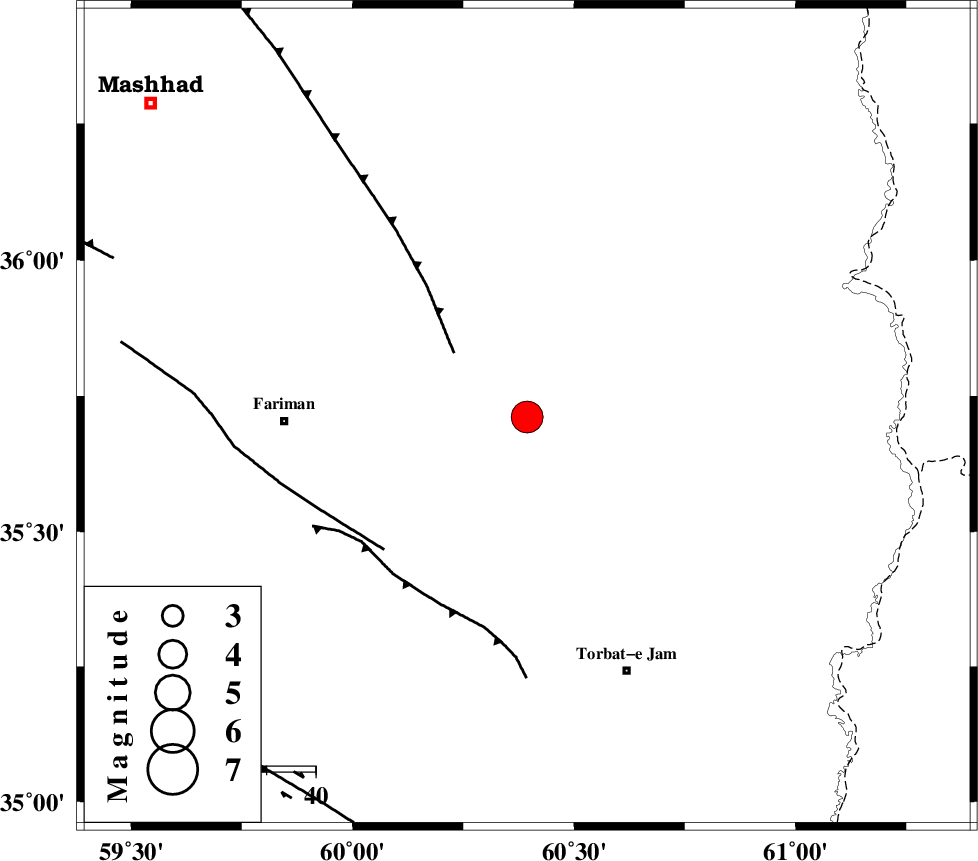

| Location | Lat:35.711 Lon: 60.394 |
| Region | Khorasan(center) Province, 49 km -East of Fariman |
Nearest Cities |
|
| 23 km North West of Musaabad, Khorasan(center) Province | |
| 29 km North East of Sefidsang, Khorasan(center) Province | |
| 29 km South East of Kalateh menar, Khorasan(center) Province | |
| 34 km North of Nasrabad, Khorasan(center) Province | |
| 40 km North East of Galandarabad, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BINALUD_F1 (Length: 178 km) , Distance to epicenter: 20 km | |
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 40 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 42 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >7 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114585 | IIEES | SHRT | N | 2206.5 | 0.61 | 2017-04-05 06:39:14 | 2017-04-05 07:14:00 | n |
| 114586 | IIEES | SHRT | E | 3307.4 | 0.46 | 2017-04-05 06:39:17 | 2017-04-05 07:14:00 | n |
| 114587 | IIEES | BJRD | E | 1067.1 | 0.81 | 2017-04-05 06:39:57 | 2017-04-05 07:14:00 | n |
| 114588 | IIEES | BJRD | N | 947.6 | 0.72 | 2017-04-05 06:40:03 | 2017-04-05 07:14:00 | n |
| 114589 | IIEES | TABS | N | 721.6 | 0.62 | 2017-04-05 06:40:03 | 2017-04-05 07:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-05 06:38:42 | -0.53 | y | 229 | 182 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-05 06:38:57 | 0.11 | y | 346 | 310 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-05 06:39:01 | 0.28 | y | 377 | 234 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-05 06:39:02 | -0.86 | y | 397 | 276 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-05 06:39:08 | 0.37 | y | 432 | 196 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-05 06:39:09 | 0.47 | y | 441 | 301 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-05 06:39:34 | -0.31 | y | 650 | 237 | |||
| IIEES | KRBR | Z | P | E | 2017-04-05 06:39:44 | 1.01 | y | 720 | 209 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-05 06:39:49 | -0.02 | y | 769 | 247 | |||
