Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2017-04-07 13:11:34.5 |
| Date & Time (Local) | 1396/1/18 17:41:34.5 |
| Location | Lat:35.725 Lon: 60.394 |
| Region | Khorasan(center) Province, 50 km -East of Fariman |
Nearest Cities |
|
| 24 km North West of Musaabad, Khorasan(center) Province | |
| 28 km South East of Kalateh menar, Khorasan(center) Province | |
| 29 km North East of Sefidsang, Khorasan(center) Province | |
| 35 km North of Nasrabad, Khorasan(center) Province | |
| 41 km North East of Galandarabad, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |

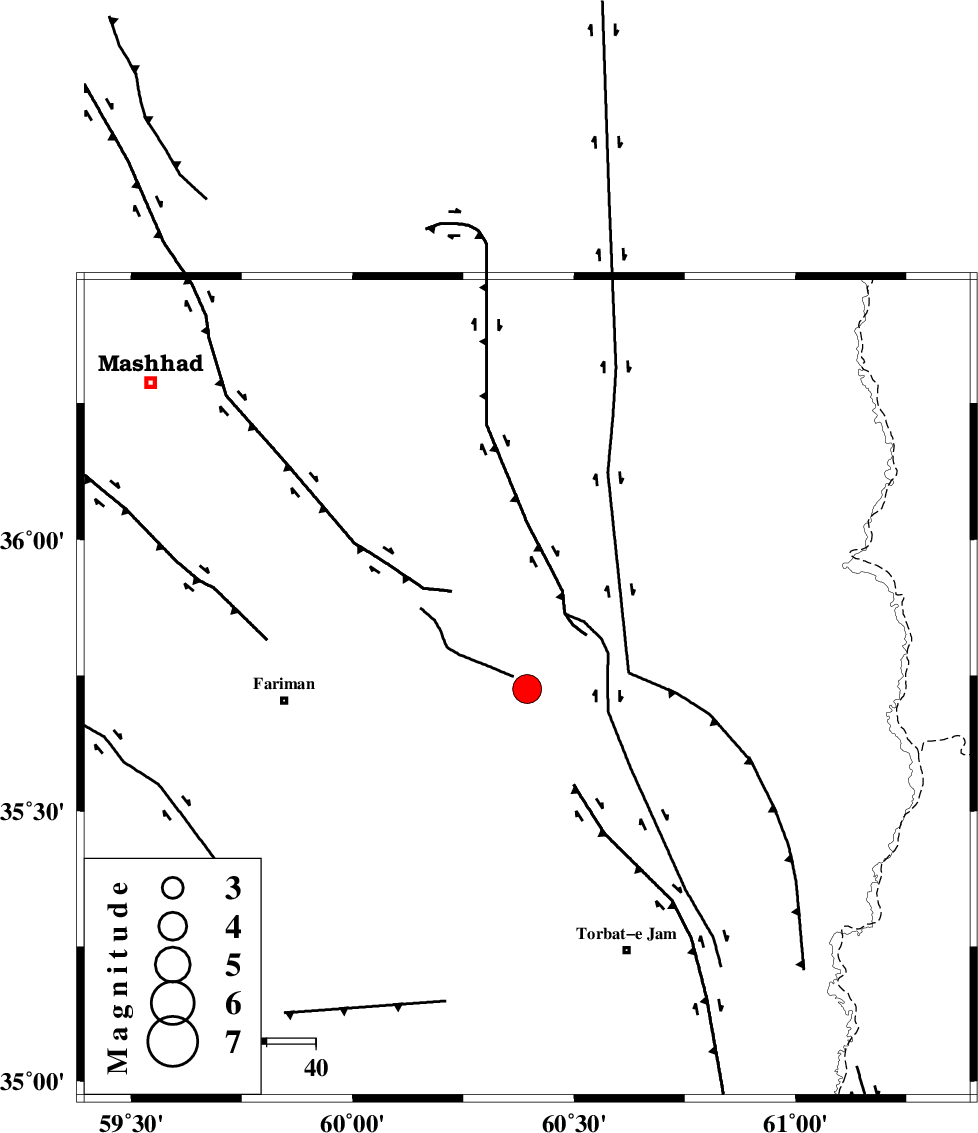

Faults within 150 km: |
|
| BINALUD_F1 (Length: 178 km) , Distance to epicenter: 19 km | |
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 41 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 43 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >4 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114713 | IIEES | SHRT | N | 894.9 | 0.39 | 2017-04-07 13:12:45 | 2017-04-08 06:36:00 | n |
| 114714 | IIEES | SHRT | E | 868.4 | 0.39 | 2017-04-07 13:12:50 | 2017-04-08 06:36:00 | n |
| 114715 | IIEES | BJRD | N | 444.8 | 0.58 | 2017-04-07 13:13:14 | 2017-04-08 06:36:00 | n |
| 114716 | IIEES | BJRD | E | 603.4 | 0.46 | 2017-04-07 13:13:17 | 2017-04-08 06:36:00 | n |
| 114717 | IIEES | TABS | N | 345 | 0.51 | 2017-04-07 13:13:32 | 2017-04-08 06:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-07 13:12:10 | -0.36 | y | 231 | 182 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-07 13:12:25 | 0.33 | y | 345 | 310 | |||
| IIEES | BJRD | N | Sg | E | 2017-04-07 13:13:11 | -0.13 | y | 345 | 310 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-07 13:12:29 | 0.2 | y | 378 | 233 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-07 13:12:31 | -0.11 | y | 397 | 276 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-07 13:12:36 | 0.26 | y | 433 | 196 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-07 13:12:36 | 0.06 | y | 440 | 300 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-07 13:13:03 | 0.1 | y | 651 | 237 | |||
| IIEES | KRBR | Z | Pn | E | 2017-04-07 13:13:12 | -0.09 | y | 722 | 209 | |||
| IIEES | DAMV | Z | Pn | E | 2017-04-07 13:13:17 | -0.02 | y | 762 | 272 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-07 13:13:18 | 0.01 | y | 770 | 247 | |||
| IIEES | GHVR | Z | Pn | E | 2017-04-07 13:13:27 | 0.06 | y | 845 | 263 | |||
| IIEES | GIDE | Z | Pn | E | 2017-04-07 13:13:39 | -0.95 | y | 950 | 281 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-04-07 13:13:44 | 0.34 | y | 980 | 260 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-04-07 13:13:53 | -0.1 | y | 1058 | 279 | |||
| IIEES | GRMI | Z | Pn | E | 2017-04-07 13:13:43 | -23 | n | 4 | 1159 | 291 | ||
