Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2017-04-06 11:51:07.4 |
| Date & Time (Local) | 1396/1/17 16:21:07.4 |

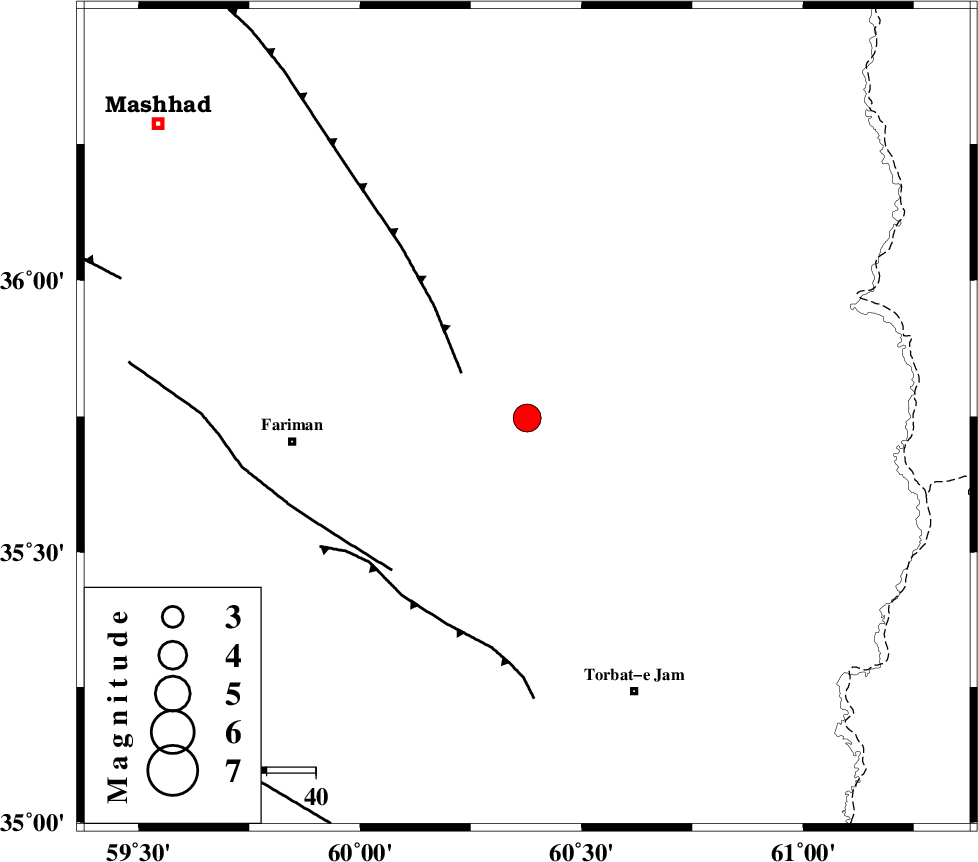

| Location | Lat:35.747 Lon: 60.377 |
| Region | Khorasan(center) Province, 48 km -East of Fariman |
Nearest Cities |
|
| 25 km South East of Kalateh menar, Khorasan(center) Province | |
| 27 km North West of Musaabad, Khorasan(center) Province | |
| 29 km North East of Sefidsang, Khorasan(center) Province | |
| 37 km North of Nasrabad, Khorasan(center) Province | |
| 41 km North East of Galandarabad, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BINALUD_F1 (Length: 178 km) , Distance to epicenter: 16 km | |
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 42 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 44 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114725 | IIEES | SHRT | N | 1170.2 | 0.21 | 2017-04-06 11:52:16 | 2017-04-08 07:15:00 | n |
| 114726 | IIEES | SHRT | E | 683.6 | 0.49 | 2017-04-06 11:52:23 | 2017-04-08 07:15:00 | n |
| 114727 | IIEES | BJRD | E | 538.4 | 0.64 | 2017-04-06 11:52:52 | 2017-04-08 07:15:00 | n |
| 114728 | IIEES | BJRD | N | 373.7 | 0.64 | 2017-04-06 11:52:53 | 2017-04-08 07:15:00 | n |
| 114729 | IIEES | TABS | N | 274.4 | 0.55 | 2017-04-06 11:53:04 | 2017-04-08 07:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-06 11:51:43 | -0.3 | y | 233 | 182 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-06 11:51:57 | 0.06 | y | 343 | 310 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-06 11:52:02 | 0.19 | y | 378 | 233 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-06 11:52:03 | -0.42 | y | 395 | 275 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-06 11:52:09 | 0.08 | y | 435 | 196 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-06 11:52:09 | 0.27 | y | 438 | 300 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-06 11:52:36 | 0.03 | y | 651 | 237 | |||
| IIEES | KRBR | Z | P | E | 2017-04-06 11:52:46 | 0.88 | y | 723 | 209 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-06 11:52:50 | -0.56 | y | 770 | 247 | |||
