Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2017-04-12 09:37:34.0 |
| Date & Time (Local) | 1396/1/23 14:07:34.0 |

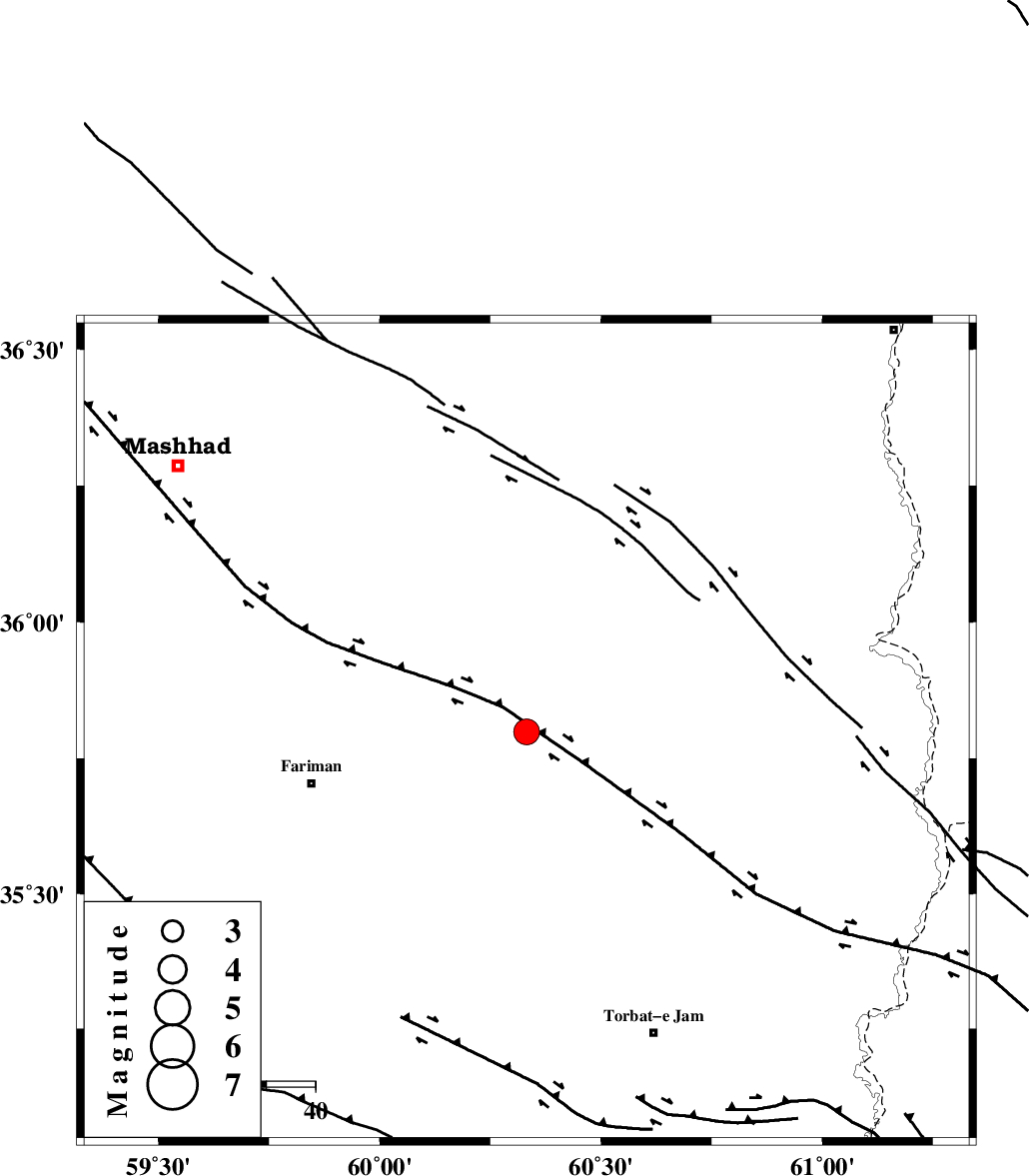

| Location | Lat:35.798 Lon: 60.332 |
| Region | Khorasan(center) Province, 45 km -East of Fariman |
Nearest Cities |
|
| 18 km South East of Kalateh menar, Khorasan(center) Province | |
| 28 km North East of Sefidsang, Khorasan(center) Province | |
| 34 km North West of Musaabad, Khorasan(center) Province | |
| 40 km North East of Galandarabad, Khorasan(center) Province | |
| 43 km South West of Mozdavand, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BINALUD_F1 (Length: 178 km) , Distance to epicenter: 10 km | |
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 44 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 45 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114919 | IIEES | SHRT | N | 541.9 | 0.33 | 2017-04-12 09:38:50 | 2017-04-12 09:59:00 | n |
| 114920 | IIEES | SHRT | E | 433.1 | 0.33 | 2017-04-12 09:38:52 | 2017-04-12 09:59:00 | n |
| 114921 | IIEES | BJRD | N | 136.3 | 0.43 | 2017-04-12 09:39:14 | 2017-04-12 09:59:00 | n |
| 114922 | IIEES | BJRD | E | 166.1 | 0.57 | 2017-04-12 09:39:19 | 2017-04-12 09:59:00 | n |
| 114923 | IIEES | TABS | N | 202.9 | 0.55 | 2017-04-12 09:39:32 | 2017-04-12 09:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-12 09:38:11 | -0.24 | y | 239 | 181 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-12 09:38:23 | 0.1 | y | 336 | 310 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-12 09:38:29 | 0.32 | y | 379 | 232 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-12 09:38:29 | -0.38 | y | 391 | 275 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-12 09:38:35 | 0.16 | y | 432 | 300 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-12 09:38:36 | 0.24 | y | 439 | 195 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-12 09:39:03 | 0.52 | y | 651 | 236 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-12 09:39:16 | -0.96 | y | 768 | 246 | |||
