Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2017-04-17 07:26:24.2 |
| Date & Time (Local) | 1396/1/28 11:56:24.2 |
| Location | Lat:35.453 Lon: 59.622 |
| Region | Khorasan(center) Province, 34 km South-West of Fariman |
Nearest Cities |
|
| 17 km South of Zarlag, Khorasan(center) Province | |
| 18 km East of Nasr, Khorasan(center) Province | |
| 27 km North East of Karizak-e nagahani, Khorasan(center) Province | |
| 28 km North West of Choqmaq, Khorasan(center) Province | |
| 34 km South West of Fariman, Khorasan(center) Province | |
| Depth | 18 km |
| Agency | |

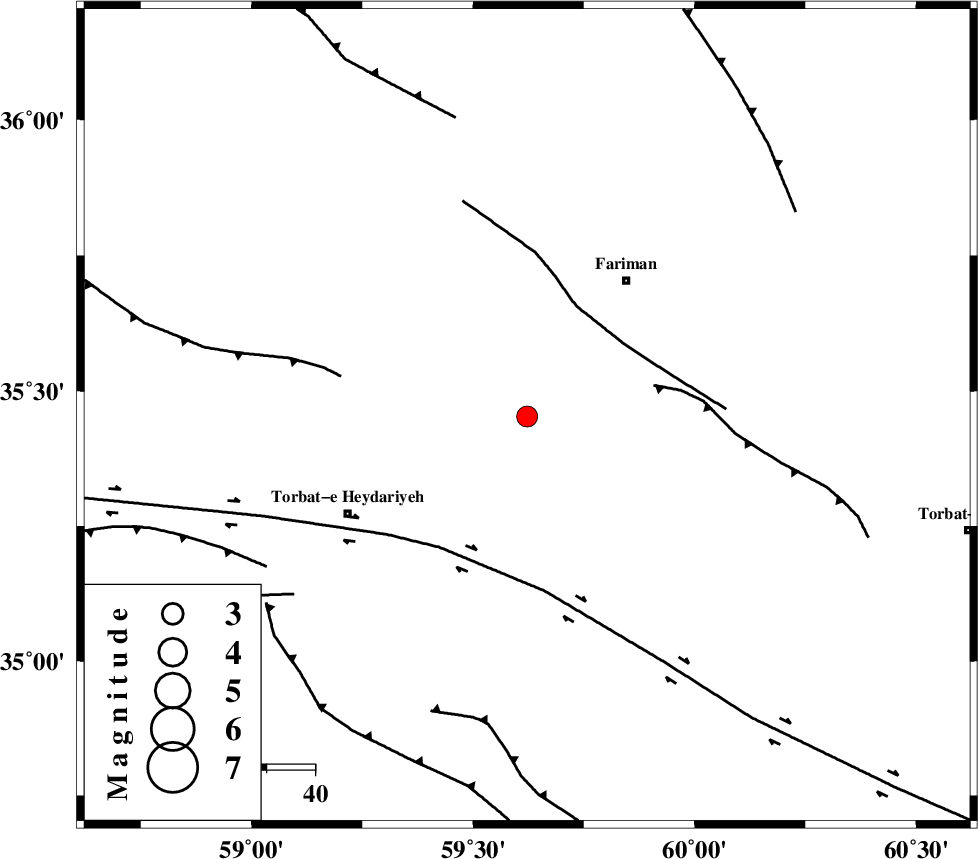

Faults within 150 km: |
|
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 25 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 27 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 32 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115153 | IIEES | SHRT | N | 168.9 | 0.32 | 2017-04-17 07:27:26 | 2017-04-17 07:55:00 | n |
| 115154 | IIEES | SHRT | E | 205.7 | 0.44 | 2017-04-17 07:27:28 | 2017-04-17 07:55:00 | n |
| 115155 | IIEES | TABS | E | 23.6 | 0.41 | 2017-04-17 07:27:58 | 2017-04-17 07:55:00 | n |
| 115156 | IIEES | TABS | N | 36.5 | 0.47 | 2017-04-17 07:27:58 | 2017-04-17 07:55:00 | n |
| 115157 | IIEES | BJRD | E | 16.6 | 0.88 | 2017-04-17 07:27:59 | 2017-04-17 07:55:00 | n |
| 115158 | IIEES | YZKH | N | 4 | 0.66 | 2017-04-17 07:29:28 | 2017-04-17 07:55:00 | n |
| 115159 | IIEES | YZKH | E | 4.9 | 0.6 | 2017-04-17 07:29:28 | 2017-04-17 07:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-17 07:26:57 | -0.3 | y | 210 | 163 | |||
| IIEES | SHRT | N | Sg | E | 2017-04-17 07:27:23 | 0.19 | y | 210 | 163 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-17 07:27:09 | -0.08 | y | 305 | 230 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-17 07:27:11 | 0.14 | y | 318 | 322 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-17 07:27:12 | -0.05 | y | 332 | 282 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-17 07:27:20 | 0.05 | y | 390 | 187 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-17 07:27:21 | 0.05 | y | 400 | 309 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-17 07:27:43 | 0.05 | y | 576 | 235 | |||
