Event Specification
Magnitude |
6 |
| Date & Time (UTC) | 2017-04-05 06:09:10.6 |
| Date & Time (Local) | 1396/1/16 10:39:10.6 |

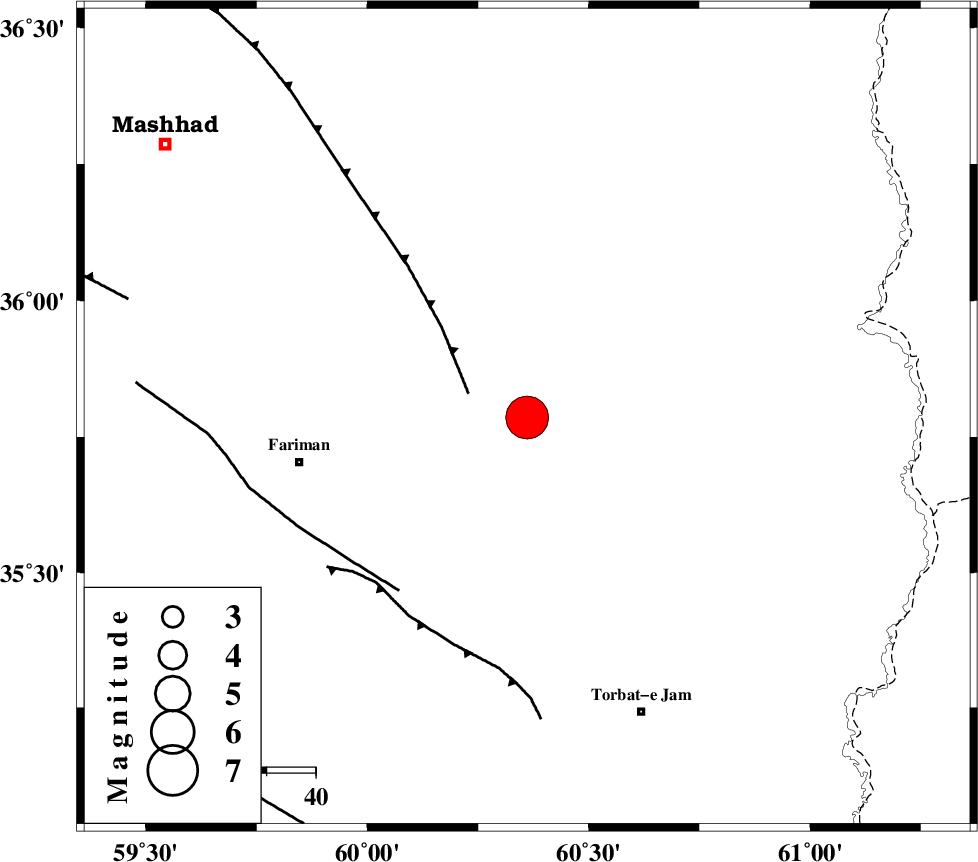

| Location | Lat:35.785 Lon: 60.361 |
| Region | Khorasan(center) Province, 47 km -East of Fariman |
Nearest Cities |
|
| 21 km South East of Kalateh menar, Khorasan(center) Province | |
| 29 km North East of Sefidsang, Khorasan(center) Province | |
| 31 km North West of Musaabad, Khorasan(center) Province | |
| 41 km North East of Galandarabad, Khorasan(center) Province | |
| 41 km North of Nasrabad, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BINALUD_F1 (Length: 178 km) , Distance to epicenter: 13 km | |
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 44 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 46 km | |
| Number of Phases | 24 |
| RMS | 0.4 |
| Number of Stations | 22 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 8 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115160 | IIEES | SHRT | E | 65888 | 0.39 | 2017-04-05 06:10:22 | 2017-04-17 07:55:00 | n |
| 115161 | IIEES | BJRD | N | 35792.7 | 0.41 | 2017-04-05 06:10:56 | 2017-04-17 07:55:00 | n |
| 115162 | IIEES | BJRD | E | 40916.6 | 0.52 | 2017-04-05 06:11:04 | 2017-04-17 07:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-05 06:09:48 | 0.16 | y | 237 | 182 | |||
| IIEES | SHRT | N | Sg | E | 2017-04-05 06:10:17 | -0.21 | y | 237 | 182 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-05 06:10:00 | -0.03 | y | 339 | 310 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-05 06:10:05 | 0.21 | y | 380 | 232 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-05 06:10:07 | -0.14 | y | 393 | 275 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-05 06:10:12 | -0.04 | y | 435 | 300 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-05 06:10:12 | -0.06 | y | 439 | 195 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-05 06:10:39 | 0.38 | y | 652 | 236 | |||
| IIEES | KRBR | Z | Pn | E | 2017-04-05 06:10:49 | 0.5 | y | 726 | 209 | |||
| IIEES | DAMV | Z | Pn | E | 2017-04-05 06:10:52 | -0.31 | y | 759 | 271 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-05 06:10:53 | -0.28 | y | 770 | 247 | |||
| IIEES | CHTH | Z | Pn | E | 2017-04-05 06:11:02 | 0.47 | y | 834 | 274 | |||
| IIEES | THKV | Z | Pn | E | 2017-04-05 06:11:05 | 0.22 | y | 856 | 274 | |||
| IIEES | GIDE | Z | Pn | E | 2017-04-05 06:11:15 | -0.76 | y | 946 | 281 | |||
| IIEES | ASAO | Z | Pn | E | 2017-04-05 06:11:16 | -0.23 | y | 951 | 265 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-04-05 06:11:20 | 0 | y | 978 | 260 | |||
| IIEES | BNDS | Z | Pn | E | 2017-04-05 06:11:24 | 0.43 | y | 1011 | 204 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-04-05 06:11:29 | 0.33 | y | 1054 | 279 | |||
| IIEES | CHBR | Z | Pn | E | 2017-04-05 06:11:37 | -1.01 | y | 1129 | 179 | |||
| IIEES | AHRM | Z | Pn | E | 2017-04-05 06:11:40 | -0.08 | y | 1146 | 231 | |||
| IIEES | GRMI | Z | Pn | E | 2017-04-05 06:11:18 | -23 | n | 4 | 1154 | 291 | ||
| IIEES | SNGE | Z | Pn | E | 2017-04-05 06:11:45 | -0.06 | y | 1183 | 270 | |||
| IIEES | ILBA | Z | Pn | E | 2017-04-05 06:12:01 | -0.84 | y | 1317 | 264 | |||
| IIEES | MAKU | Z | Pn | E | 2017-04-05 06:12:15 | -1.74 | y | 1439 | 291 | |||
