Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2017-04-22 09:22:40.4 |
| Date & Time (Local) | 1396/2/2 13:52:40.4 |

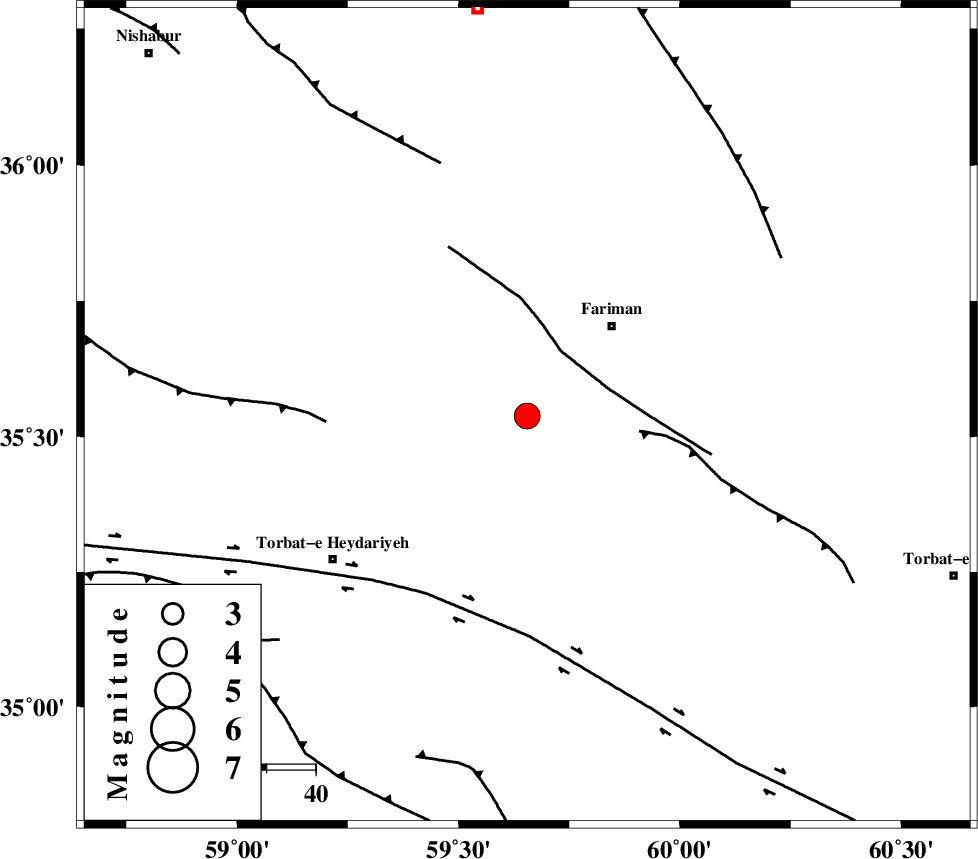

| Location | Lat:35.538 Lon: 59.655 |
| Region | Khorasan(center) Province, 25 km South-West of Fariman |
Nearest Cities |
|
| 7 km of Zarlag, Khorasan(center) Province | |
| 19 km North East of Nasr, Khorasan(center) Province | |
| 25 km South West of Fariman, Khorasan(center) Province | |
| 26 km South of Farhadgard, Khorasan(center) Province | |
| 29 km West of Galandarabad, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 15 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 23 km | |
| BALHAR_F (Length: 117 km) , Distance to epicenter: 41 km | |
| Number of Phases | 7 |
| RMS | 0.6 |
| Number of Stations | 7 |
| Error in Latitude | >8.3 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115294 | IIEES | SHRT | E | 1060.6 | 0.31 | 2017-04-22 09:23:45 | 2017-04-22 10:44:00 | n |
| 115295 | IIEES | SHRT | N | 1081.1 | 0.26 | 2017-04-22 09:23:47 | 2017-04-22 10:44:00 | n |
| 115296 | IIEES | TABS | N | 250.4 | 0.54 | 2017-04-22 09:24:18 | 2017-04-22 10:44:00 | n |
| 115297 | IIEES | TABS | E | 162.7 | 0.36 | 2017-04-22 09:24:19 | 2017-04-22 10:44:00 | n |
| 115298 | IIEES | NASN | E | 5.4 | 0.13 | 2017-04-22 09:26:06 | 2017-04-22 10:44:00 | n |
| 115299 | IIEES | NASN | N | 5.3 | 0.64 | 2017-04-22 09:26:11 | 2017-04-22 10:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-04-22 09:23:14 | -0.09 | y | 218 | 164 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-22 09:23:27 | 0.57 | y | 313 | 229 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-22 09:23:29 | 0.49 | y | 333 | 280 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-22 09:23:37 | -0.23 | y | 396 | 307 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-22 09:23:37 | 0.07 | y | 399 | 187 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-22 09:24:00 | -0.2 | y | 584 | 235 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-22 09:24:13 | -1.37 | y | 700 | 246 | |||
