Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2017-04-24 11:09:12.2 |
| Date & Time (Local) | 1396/2/4 15:39:12.2 |

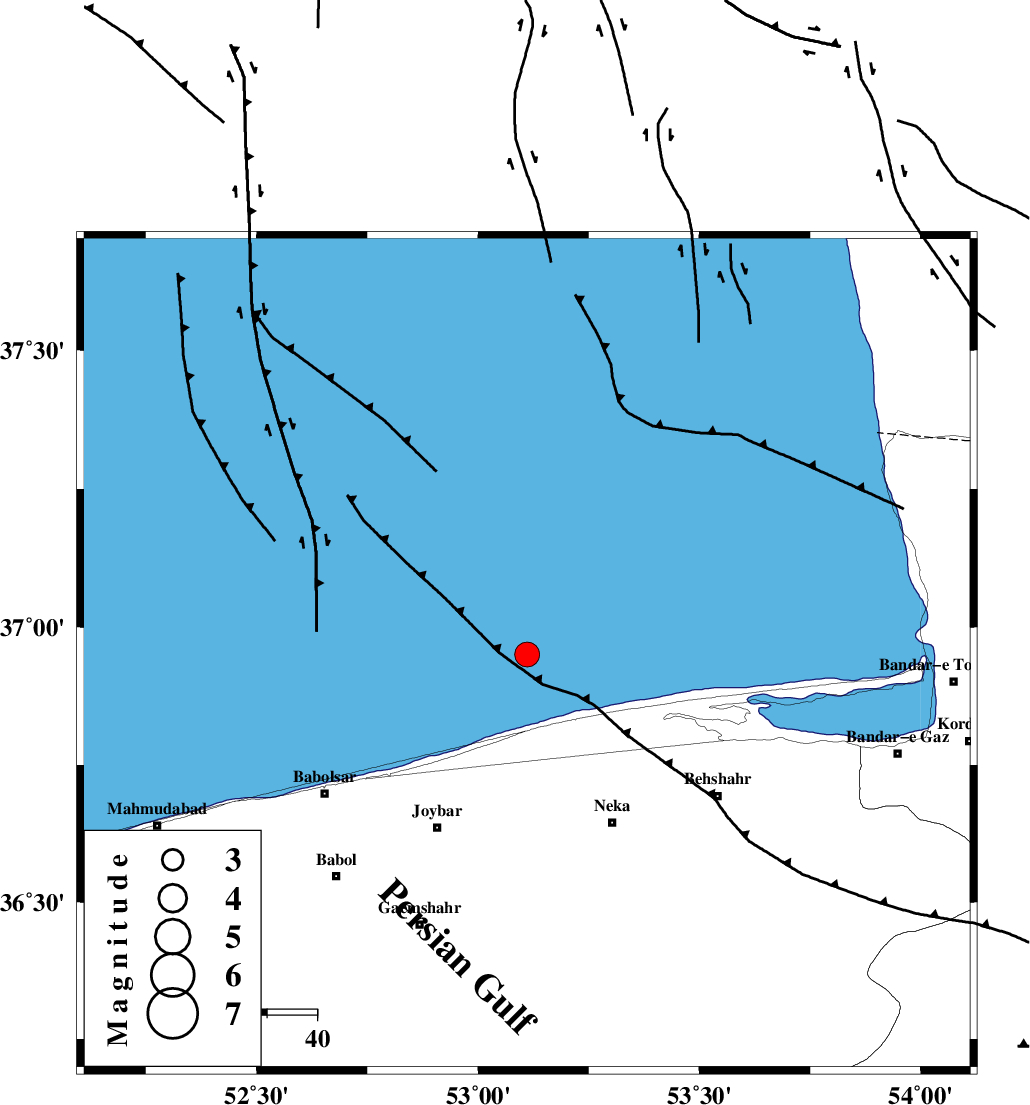

| Location | Lat:36.95 Lon: 53.111 |
| Region | Caspian Sea, 44 km North of Sari |
Nearest Cities |
|
| 18 km North of Farahabad, Mazandaran Province | |
| 25 km North West of Zaghmarz, Mazandaran Province | |
| 29 km North East of Larim, Mazandaran Province | |
| 32 km North West of Tuska, Mazandaran Province | |
| 34 km North East of Kuhikhel, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 39 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 74 km | |
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 110 km | |
| Number of Phases | 19 |
| RMS | 0.3 |
| Number of Stations | 17 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115369 | IIEES | CHTH | E | 533.4 | 0.26 | 2017-04-24 11:10:12 | 2017-04-26 05:50:00 | n |
| 115370 | IIEES | CHTH | N | 297.1 | 0.43 | 2017-04-24 11:10:14 | 2017-04-26 05:50:00 | n |
| 115371 | IIEES | THKV | E | 1259.5 | 0.3 | 2017-04-24 11:10:19 | 2017-04-26 05:50:00 | n |
| 115372 | IIEES | THKV | N | 795.3 | 0.3 | 2017-04-24 11:10:21 | 2017-04-26 05:50:00 | n |
| 115373 | IIEES | MRVT | N | 161 | 0.23 | 2017-04-24 11:10:37 | 2017-04-26 05:50:00 | n |
| 115374 | IIEES | MRVT | E | 163.5 | 0.23 | 2017-04-24 11:10:44 | 2017-04-26 05:50:00 | n |
| 115375 | IIEES | SHRO | E | 135 | 0.41 | 2017-04-24 11:10:34 | 2017-04-26 05:50:00 | n |
| 115376 | IIEES | SHRO | N | 153 | 0.34 | 2017-04-24 11:10:42 | 2017-04-26 05:50:00 | n |
| 115377 | IIEES | GIDE | N | 199.4 | 0.36 | 2017-04-24 11:10:44 | 2017-04-26 05:50:00 | n |
| 115378 | IIEES | GIDE | E | 221.5 | 0.48 | 2017-04-24 11:10:51 | 2017-04-26 05:50:00 | n |
| 115379 | IIEES | GHVR | E | 217.6 | 0.55 | 2017-04-24 11:10:50 | 2017-04-26 05:50:00 | n |
| 115380 | IIEES | GHVR | N | 104.3 | 0.37 | 2017-04-24 11:10:56 | 2017-04-26 05:50:00 | n |
| 115381 | IIEES | ASAO | N | 61.9 | 0.44 | 2017-04-24 11:11:04 | 2017-04-26 05:50:00 | n |
| 115382 | IIEES | ASAO | E | 66.9 | 0.44 | 2017-04-24 11:11:05 | 2017-04-26 05:50:00 | n |
| 115383 | IIEES | ZNJK | N | 66.6 | 0.53 | 2017-04-24 11:11:17 | 2017-04-26 05:50:00 | n |
| 115384 | IIEES | ZNJK | E | 40.2 | 0.3 | 2017-04-24 11:11:17 | 2017-04-26 05:50:00 | n |
| 115385 | IIEES | KHMZ | N | 30.8 | 0.55 | 2017-04-24 11:11:26 | 2017-04-26 05:50:00 | n |
| 115386 | IIEES | KHMZ | E | 21.1 | 0.37 | 2017-04-24 11:11:30 | 2017-04-26 05:50:00 | n |
| 115387 | IIEES | NASN | N | 29.6 | 0.28 | 2017-04-24 11:11:27 | 2017-04-26 05:50:00 | n |
| 115388 | IIEES | NASN | E | 26.5 | 0.56 | 2017-04-24 11:11:36 | 2017-04-26 05:50:00 | n |
| 115389 | IIEES | GRMI | E | 20.9 | 0.3 | 2017-04-24 11:10:58 | 2017-04-26 05:50:00 | n |
| 115390 | IIEES | TABS | N | 37.1 | 0.6 | 2017-04-24 11:11:47 | 2017-04-26 05:50:00 | n |
| 115391 | IIEES | TABS | E | 21.1 | 0.8 | 2017-04-24 11:12:00 | 2017-04-26 05:50:00 | n |
| 115392 | IIEES | YZKH | E | 16.4 | 0.62 | 2017-04-24 11:11:29 | 2017-04-26 05:50:00 | n |
| 115393 | IIEES | YZKH | N | 20 | 0.47 | 2017-04-24 11:11:45 | 2017-04-26 05:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2017-04-24 11:09:41 | -0.26 | y | 179 | 215 | |||
| IIEES | CHTH | Z | Pn | E | 2017-04-24 11:09:46 | 0.15 | y | 212 | 238 | |||
| IIEES | THKV | Z | Pn | E | 2017-04-24 11:09:48 | 0.17 | y | 231 | 241 | |||
| IIEES | THKV | N | Sg | E | 2017-04-24 11:10:17 | -0.14 | y | 231 | 241 | |||
| IIEES | MRVT | Z | Pn | E | 2017-04-24 11:09:53 | -0.31 | y | 276 | 73 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-24 11:09:55 | 0.18 | y | 280 | 111 | |||
| IIEES | GIDE | Z | Pn | E | 2017-04-24 11:10:00 | 4.79 | n | 4 | 285 | 270 | ||
| IIEES | GHVR | Z | Pn | E | 2017-04-24 11:09:59 | 0.02 | y | 322 | 212 | |||
| IIEES | ASAO | Z | Pn | E | 2017-04-24 11:10:08 | 0.37 | y | 386 | 227 | |||
| IIEES | BJRD | Z | Pn | E | 2017-04-24 11:10:08 | -0.34 | y | 390 | 76 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-04-24 11:10:09 | 0.12 | y | 396 | 267 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-04-24 11:10:16 | -0.01 | y | 457 | 220 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-24 11:10:17 | -0.41 | y | 461 | 184 | |||
| IIEES | GRMI | Z | Pn | E | 2017-04-24 11:10:02 | -20.4 | n | 4 | 503 | 296 | ||
| IIEES | GRMI | Z | E | 2017-04-24 11:10:02 | y | 503 | 296 | |||||
| IIEES | TABS | Z | Pn | E | 2017-04-24 11:10:24 | 0.53 | y | 517 | 134 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-24 11:10:24 | -0.29 | y | 524 | 165 | |||
| IIEES | SHRT | Z | Pn | E | 2017-04-24 11:10:53 | 0.23 | y | 749 | 117 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-24 11:10:57 | 0.3 | y | 781 | 133 | |||
