Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2017-05-02 02:08:08.2 |
| Date & Time (Local) | 1396/2/12 06:38:08.2 |

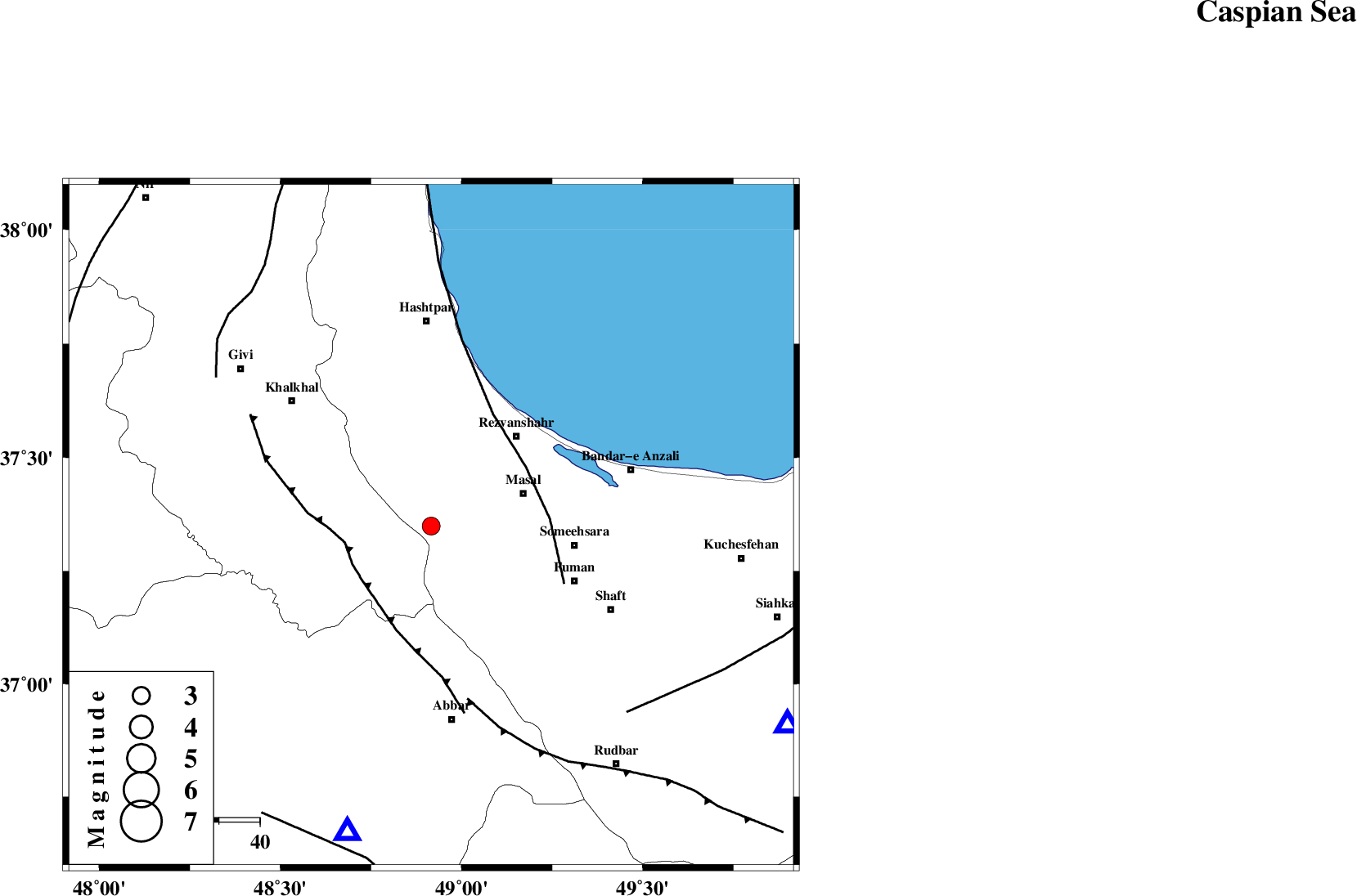

| Location | Lat:37.349 Lon: 48.916 |
| Region | Gilan Province, 24 km -West of Masal |
Nearest Cities |
|
| 11 km North East of Shal, Ardebil Province | |
| 18 km East of Kalur, Ardebil Province | |
| 19 km West of Bazarjomeh, Gilan Province | |
| 22 km South West of Shangavar, Gilan Province | |
| 22 km North East of Karin, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 21 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 27 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 43 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >8.7 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115567 | IIEES | ZNJK | N | 504.7 | 0.23 | 2017-05-02 02:08:32 | 2017-05-02 05:02:00 | n |
| 115568 | IIEES | ZNJK | E | 862.1 | 0.12 | 2017-05-02 02:08:32 | 2017-05-02 05:02:00 | n |
| 115569 | IIEES | GIDE | N | 780.9 | 0.2 | 2017-05-02 02:08:42 | 2017-05-02 05:02:00 | n |
| 115570 | IIEES | GIDE | E | 574.7 | 0.3 | 2017-05-02 02:08:42 | 2017-05-02 05:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2017-05-02 02:08:21 | -0.67 | y | 78 | 195 | |||
| IIEES | ZNJK | N | Sg | E | 2017-05-02 02:08:31 | 0 | y | 78 | 195 | |||
| IIEES | GIDE | Z | Pg | E | 2017-05-02 02:08:24 | -0.41 | y | 100 | 118 | |||
| IIEES | GRMI | Z | Pg | E | 2017-05-02 02:08:30 | -8.08 | n | 4 | 185 | 331 | ||
| IIEES | THKV | Z | Pn | E | 2017-05-02 02:08:45 | -0.04 | y | 237 | 132 | |||
| IIEES | CHTH | Z | Pn | E | 2017-05-02 02:08:47 | 0.09 | y | 254 | 128 | |||
| IIEES | CHTH | N | Sg | E | 2017-05-02 02:09:20 | 0.27 | y | 254 | 128 | |||
| IIEES | SNGE | Z | Pn | E | 2017-05-02 02:08:52 | 0.66 | y | 287 | 210 | |||
| IIEES | ASAO | Z | Pn | E | 2017-05-02 02:08:56 | 0.15 | y | 326 | 162 | |||
| IIEES | DAMV | Z | Pn | E | 2017-05-02 02:08:54 | -3.29 | n | 4 | 334 | 124 | ||
