Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-05-04 13:17:00.6 |
| Date & Time (Local) | 1396/2/14 17:47:00.6 |

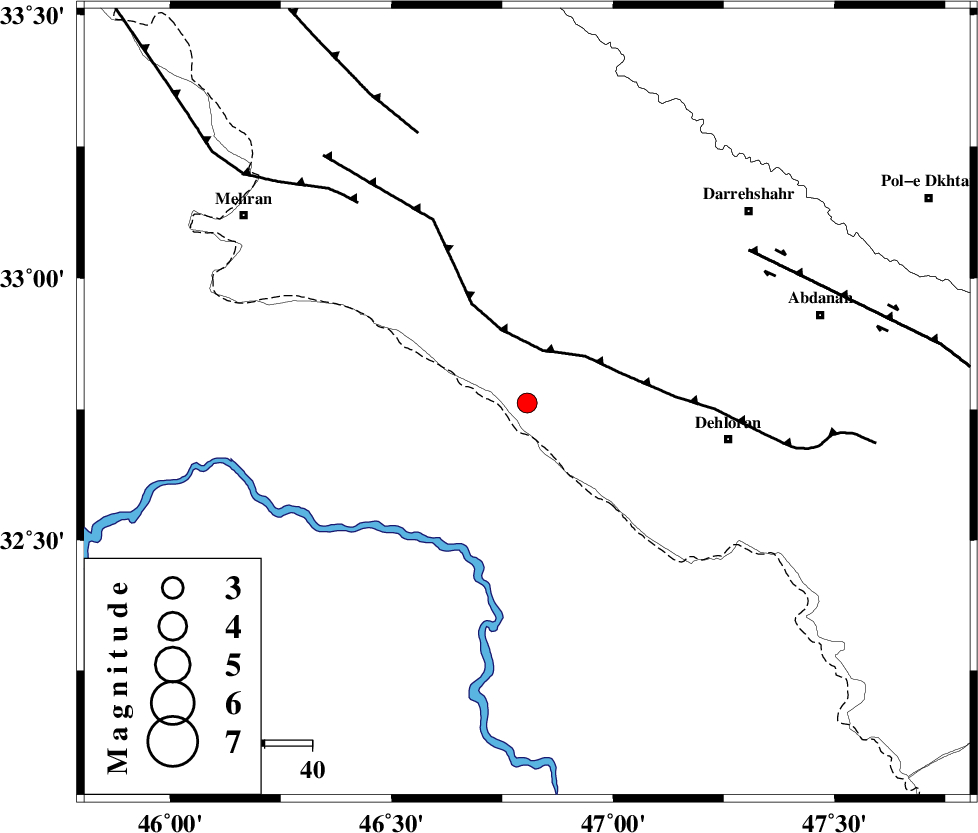

| Location | Lat:32.762 Lon: 46.806 |
| Region | Ilam Province, 43 km -West of Dehloran |
Nearest Cities |
|
| 17 km West of Bishehzar, Ilam Province | |
| 43 km North West of Dehloran, Ilam Province | |
| 54 km South West of Meymeh, Ilam Province | |
| 57 km North West of Musian, Ilam Province | |
| 59 km South West of Badreh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 12 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 55 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 57 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115689 | IIEES | ILBA | E | 455.4 | 0.52 | 2017-05-04 13:17:39 | 2017-05-06 06:26:00 | n |
| 115690 | IIEES | ILBA | N | 144.4 | 0.17 | 2017-05-04 13:17:39 | 2017-05-06 06:26:00 | n |
| 115691 | IIEES | SNGE | N | 33 | 0.44 | 2017-05-04 13:18:16 | 2017-05-06 06:26:00 | n |
| 115692 | IIEES | SNGE | E | 43.2 | 0.49 | 2017-05-04 13:18:18 | 2017-05-06 06:26:00 | n |
| 115693 | IIEES | ASAO | N | 12.5 | 0.47 | 2017-05-04 13:18:34 | 2017-05-06 06:26:00 | n |
| 115694 | IIEES | ASAO | E | 10.7 | 0.47 | 2017-05-04 13:18:34 | 2017-05-06 06:26:00 | n |
| 115695 | IIEES | GHVR | E | 12.2 | 0.51 | 2017-05-04 13:18:56 | 2017-05-06 06:26:00 | n |
| 115696 | IIEES | GHVR | N | 11.7 | 0.66 | 2017-05-04 13:19:14 | 2017-05-06 06:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-05-04 13:17:19 | -0.03 | y | 111 | 330 | |||
| IIEES | ILBA | N | Sg | E | 2017-05-04 13:17:33 | 0 | y | 111 | 330 | |||
| IIEES | SNGE | Z | Pn | E | 2017-05-04 13:17:41 | 0.14 | y | 263 | 11 | |||
| IIEES | SNGE | N | Sg | E | 2017-05-04 13:18:15 | 0.03 | y | 263 | 11 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-05-04 13:17:47 | 0.25 | y | 314 | 69 | |||
| IIEES | ASAO | Z | Pn | E | 2017-05-04 13:17:52 | -0.06 | y | 358 | 56 | |||
| IIEES | GHVR | Z | Pn | E | 2017-05-04 13:18:04 | 0.02 | y | 454 | 64 | |||
| IIEES | CHTH | Z | Pn | E | 2017-05-04 13:18:13 | -0.52 | y | 529 | 48 | |||
