Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2017-05-16 07:34:17.1 |
| Date & Time (Local) | 1396/2/26 12:04:17.1 |

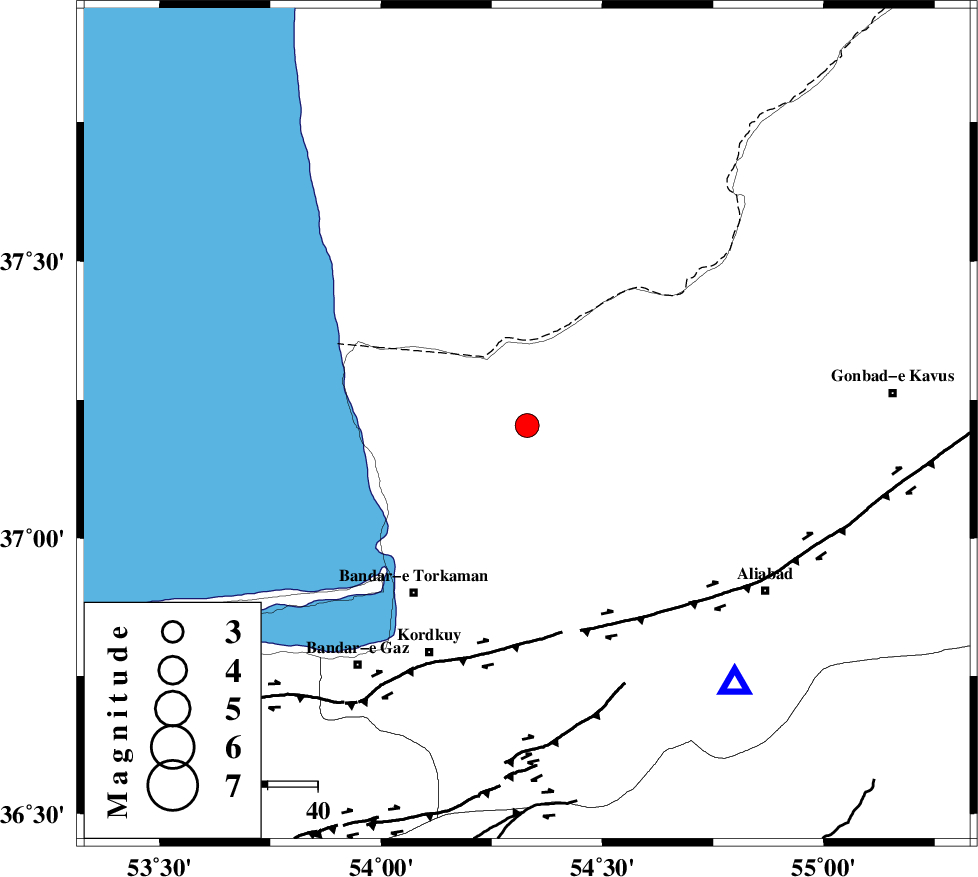

| Location | Lat:37.204 Lon: 54.33 |
| Region | Golestan Province, 24 km North-West of Aq Qaleh |
Nearest Cities |
|
| 23 km North East of Banavar, Golestan Province | |
| 24 km North West of Aq Qaleh, Golestan Province | |
| 25 km North East of Gomishtappeh, Golestan Province | |
| 26 km North West of Qanqarmeh, Golestan Province | |
| 34 km North West of Nodeh malek, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 42 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 66 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 71 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116022 | IIEES | MRVT | N | 552.3 | 0.34 | 2017-05-16 07:35:06 | 2017-05-16 08:21:00 | n |
| 116023 | IIEES | MRVT | E | 573.7 | 0.29 | 2017-05-16 07:35:07 | 2017-05-16 08:21:00 | n |
| 116024 | IIEES | DAMV | E | 171.4 | 0.4 | 2017-05-16 07:35:44 | 2017-05-16 08:21:00 | n |
| 116025 | IIEES | DAMV | N | 113.1 | 0.27 | 2017-05-16 07:35:46 | 2017-05-16 08:21:00 | n |
| 116026 | IIEES | BJRD | N | 128.6 | 0.52 | 2017-05-16 07:35:42 | 2017-05-16 08:21:00 | n |
| 116027 | IIEES | BJRD | E | 153.7 | 0.67 | 2017-05-16 07:35:49 | 2017-05-16 08:21:00 | n |
| 116028 | IIEES | CHTH | N | 75.2 | 0.3 | 2017-05-16 07:35:55 | 2017-05-16 08:21:00 | n |
| 116029 | IIEES | CHTH | E | 68 | 0.4 | 2017-05-16 07:35:57 | 2017-05-16 08:21:00 | n |
| 116030 | IIEES | THKV | N | 175.2 | 0.51 | 2017-05-16 07:36:00 | 2017-05-16 08:21:00 | n |
| 116031 | IIEES | THKV | E | 138.7 | 0.51 | 2017-05-16 07:36:06 | 2017-05-16 08:21:00 | n |
| 116032 | IIEES | GHVR | E | 58.6 | 0.45 | 2017-05-16 07:36:22 | 2017-05-16 08:21:00 | n |
| 116033 | IIEES | GHVR | N | 47 | 0.45 | 2017-05-16 07:36:27 | 2017-05-16 08:21:00 | n |
| 116034 | IIEES | TABS | N | 26.6 | 0.44 | 2017-05-16 07:36:39 | 2017-05-16 08:21:00 | n |
| 116035 | IIEES | ZNJK | N | 15.5 | 0.36 | 2017-05-16 07:36:44 | 2017-05-16 08:21:00 | n |
| 116036 | IIEES | YZKH | E | 12.4 | 0.95 | 2017-05-16 07:36:28 | 2017-05-16 08:21:00 | n |
| 116037 | IIEES | YZKH | N | 13.8 | 0.71 | 2017-05-16 07:36:31 | 2017-05-16 08:21:00 | n |
| 116038 | IIEES | GRMI | E | 11 | 0.25 | 2017-05-16 07:36:41 | 2017-05-16 08:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2017-05-16 07:34:44 | 0.23 | y | 164 | 71 | |||
| IIEES | MRVT | N | Sg | E | 2017-05-16 07:35:04 | 0.01 | y | 164 | 71 | |||
| IIEES | SHRO | Z | Pg | E | 2017-05-16 07:34:49 | -0.24 | y | 201 | 131 | |||
| IIEES | DAMV | Z | Pn | E | 2017-05-16 07:34:58 | -0.3 | y | 274 | 231 | |||
| IIEES | BJRD | Z | Pn | E | 2017-05-16 07:34:59 | -0.13 | y | 278 | 78 | |||
| IIEES | CHTH | Z | Pn | E | 2017-05-16 07:35:04 | -0.21 | y | 321 | 244 | |||
| IIEES | THKV | Z | Pn | E | 2017-05-16 07:35:07 | 0.14 | y | 340 | 246 | |||
| IIEES | GHVR | Z | Pn | E | 2017-05-16 07:35:15 | -0.5 | y | 411 | 224 | |||
| IIEES | TABS | Z | Pn | E | 2017-05-16 07:35:23 | 0.26 | y | 469 | 146 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-05-16 07:35:28 | 0.96 | y | 506 | 265 | |||
| IIEES | NASN | Z | Pn | E | 2017-05-16 07:35:28 | 0.52 | y | 508 | 196 | |||
| IIEES | YZKH | Z | Pn | E | 2017-05-16 07:35:31 | 0.41 | y | 534 | 177 | |||
| IIEES | GRMI | Z | Pn | E | 2017-05-16 07:35:37 | -0.57 | y | 593 | 289 | |||
| IIEES | SHRT | Z | Pn | E | 2017-05-16 07:35:47 | -0.48 | y | 670 | 124 | |||
