Event Specification
Magnitude |
2.2 |
| Date & Time (UTC) | 2017-05-16 20:00:23.4 |
| Date & Time (Local) | 1396/2/27 00:30:23.4 |

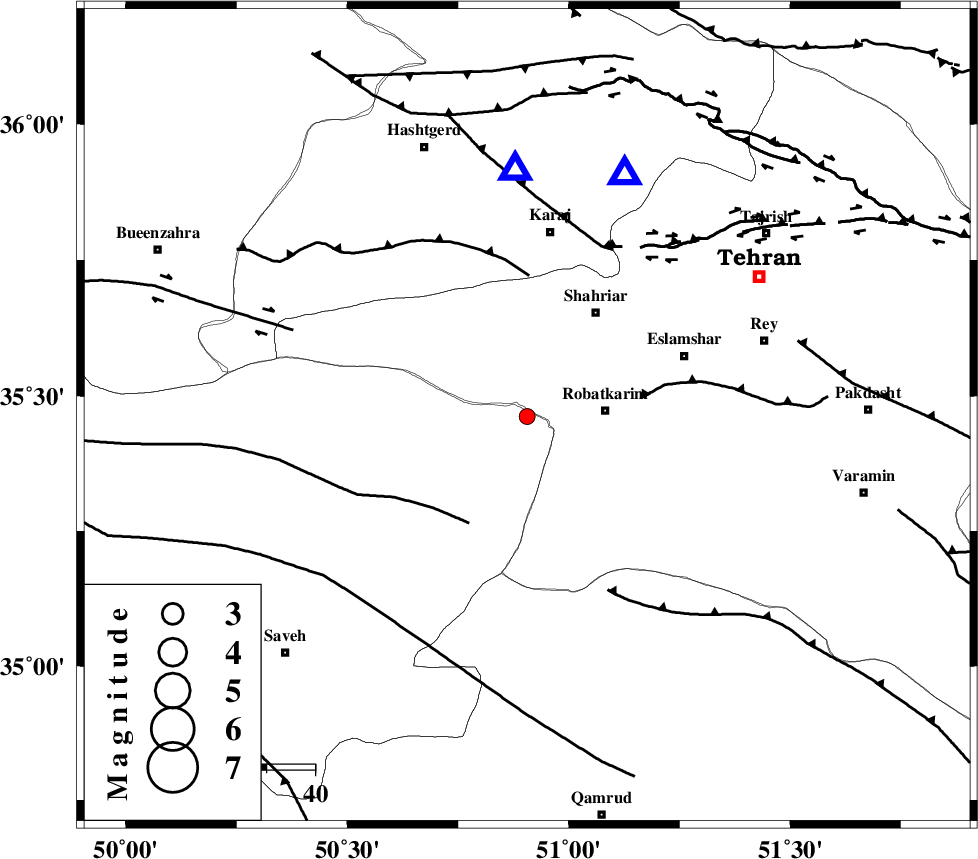

| Location | Lat:35.462 Lon: 50.906 |
| Region | Markazi Province, 16 km -West of Robatkarim |
Nearest Cities |
|
| 16 km West of Robatkarim, Tehran Province | |
| 16 km West of Manjilabad, Tehran Province | |
| 19 km South West of Joqin, Tehran Province | |
| 23 km South of Malard, Tehran Province | |
| 23 km North East of Rahimabad, Markazi Province | |
| Depth | 21 km |
| Agency | |
Faults within 150 km: |
|
| KAHRIZAK_F (Length: 44 km) , Distance to epicenter: 23 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 25 km | |
| ESHTEHARD_F (Length: 69 km) , Distance to epicenter: 29 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116058 | IIEES | THKV | E | 135.3 | 0.13 | 2017-05-16 20:00:40 | 2017-05-17 05:26:00 | n |
| 116059 | IIEES | THKV | N | 132.1 | 0.2 | 2017-05-16 20:00:40 | 2017-05-17 05:26:00 | n |
| 116060 | IIEES | DAMV | N | 65.6 | 0.22 | 2017-05-16 20:00:53 | 2017-05-17 05:26:00 | n |
| 116061 | IIEES | DAMV | E | 70.2 | 0.19 | 2017-05-16 20:00:55 | 2017-05-17 05:26:00 | n |
| 116062 | IIEES | GHVR | N | 66.6 | 0.16 | 2017-05-16 20:00:57 | 2017-05-17 05:26:00 | n |
| 116063 | IIEES | GHVR | E | 78.2 | 0.31 | 2017-05-16 20:01:01 | 2017-05-17 05:26:00 | n |
| 116064 | IIEES | ASAO | E | 45.4 | 0.14 | 2017-05-16 20:01:01 | 2017-05-17 05:26:00 | n |
| 116065 | IIEES | ASAO | N | 56.8 | 0.33 | 2017-05-16 20:01:01 | 2017-05-17 05:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2017-05-16 20:00:32 | 0.03 | y | 50.3 | 357 | |||
| IIEES | CHTH | Z | Pg | E | 2017-05-16 20:00:33 | 0.04 | y | 53.3 | 22 | |||
| IIEES | DAMV | Z | Pg | E | 2017-05-16 20:00:40 | -0.04 | y | 98.3 | 79 | |||
| IIEES | GHVR | Z | Pg | E | 2017-05-16 20:00:42 | 0.05 | y | 113 | 164 | |||
| IIEES | ASAO | Z | Pg | E | 2017-05-16 20:00:44 | -0.09 | y | 129 | 219 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-05-16 20:00:56 | -0.01 | y | 210 | 205 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-05-16 20:01:00 | -0.15 | y | 241 | 304 | |||
| IIEES | SNGE | Z | Pn | E | 2017-05-16 20:01:11 | 0.2 | y | 326 | 264 | |||
