Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2017-05-21 04:06:05.6 |
| Date & Time (Local) | 1396/2/31 08:36:05.6 |

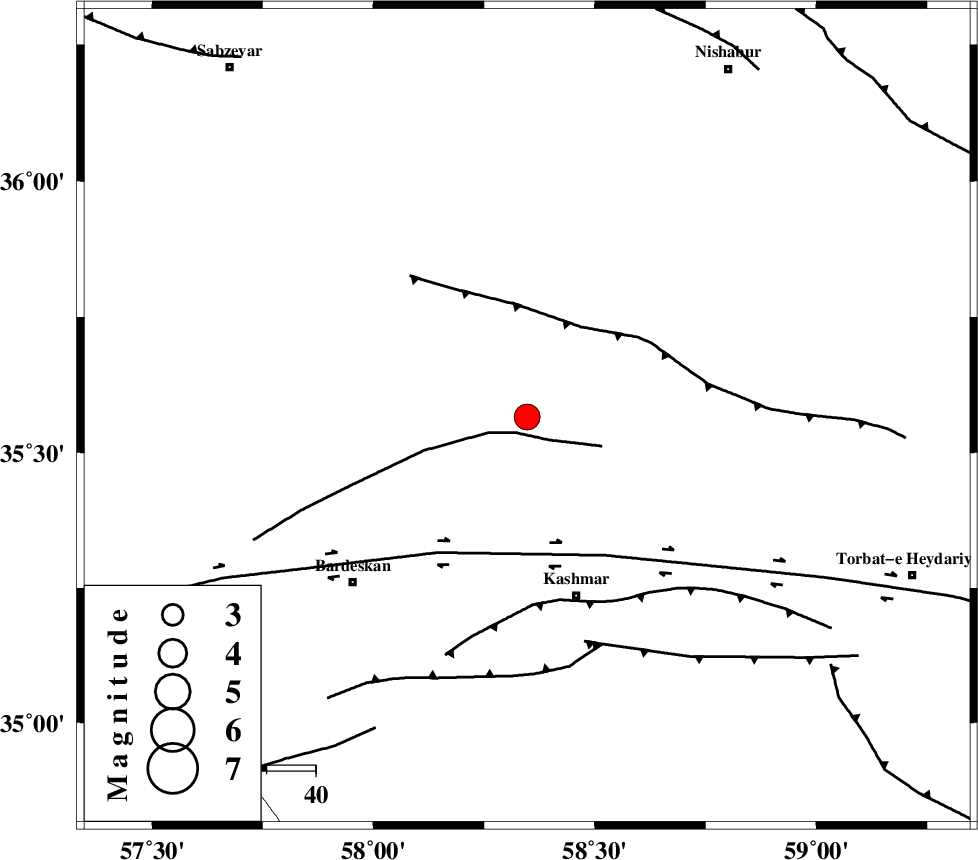

| Location | Lat:35.566 Lon: 58.347 |
| Region | Khorasan(center) Province, 38 km North-West of Kashmar |
Nearest Cities |
|
| 5 km of Ondar, Khorasan(center) Province | |
| 12 km North of Toroq, Khorasan(center) Province | |
| 14 km North of Rivash, Khorasan(center) Province | |
| 21 km East of Ghaleh meidan, Khorasan(center) Province | |
| 34 km North of Khalilabad, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 4 km | |
| BALHAR_F (Length: 117 km) , Distance to epicenter: 21 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 33 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116127 | IIEES | SHRO | E | 428.9 | 0.69 | 2017-05-21 04:07:11 | 2017-05-21 04:36:00 | n |
| 116128 | IIEES | SHRO | N | 347 | 0.34 | 2017-05-21 04:07:11 | 2017-05-21 04:36:00 | n |
| 116129 | IIEES | TABS | N | 957.1 | 0.5 | 2017-05-21 04:07:22 | 2017-05-21 04:36:00 | n |
| 116130 | IIEES | TABS | E | 345.3 | 0.5 | 2017-05-21 04:07:24 | 2017-05-21 04:36:00 | n |
| 116131 | IIEES | BJRD | E | 289 | 0.41 | 2017-05-21 04:07:28 | 2017-05-21 04:36:00 | n |
| 116132 | IIEES | SHRT | N | 350.9 | 0.31 | 2017-05-21 04:07:29 | 2017-05-21 04:36:00 | n |
| 116133 | IIEES | SHRT | E | 630.1 | 0.5 | 2017-05-21 04:07:37 | 2017-05-21 04:36:00 | n |
| 116134 | IIEES | BSRN | N | 30.4 | 0.56 | 2017-05-21 04:08:14 | 2017-05-21 04:36:00 | n |
| 116135 | IIEES | YZKH | N | 56.5 | 0.57 | 2017-05-21 04:08:33 | 2017-05-21 04:36:00 | n |
| 116136 | IIEES | YZKH | E | 89.9 | 0.43 | 2017-05-21 04:08:45 | 2017-05-21 04:36:00 | n |
| 116137 | IIEES | NASN | N | 14.5 | 0.5 | 2017-05-21 04:09:06 | 2017-05-21 04:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pn | E | 2017-05-21 04:06:40 | 0.17 | y | 217 | 284 | |||
| IIEES | TABS | Z | Pn | E | 2017-05-21 04:06:42 | -0.56 | y | 241 | 208 | |||
| IIEES | BJRD | Z | Pn | E | 2017-05-21 04:06:43 | -0.74 | y | 251 | 341 | |||
| IIEES | SHRT | Z | Pn | E | 2017-05-21 04:06:47 | 0.23 | y | 278 | 140 | |||
| IIEES | MRVT | Z | Pn | E | 2017-05-21 04:06:52 | 0.7 | y | 308 | 320 | |||
| IIEES | BSRN | Z | Pn | E | 2017-05-21 04:07:03 | 0.21 | y | 406 | 170 | |||
| IIEES | YZKH | Z | Pn | E | 2017-05-21 04:07:14 | -0.21 | y | 494 | 226 | |||
| IIEES | DAMV | Z | Pn | E | 2017-05-21 04:07:25 | 0.07 | y | 578 | 273 | |||
| IIEES | NASN | Z | Pn | E | 2017-05-21 04:07:27 | 0.29 | y | 596 | 241 | |||
| IIEES | KRBR | Z | Pn | E | 2017-05-21 04:07:32 | 0.06 | y | 637 | 194 | |||
| IIEES | GHVR | Z | Pn | E | 2017-05-21 04:07:35 | -0.02 | y | 659 | 262 | |||
| IIEES | ASAO | Z | Pn | E | 2017-05-21 04:07:49 | 0.44 | y | 767 | 264 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-05-21 04:07:51 | -0.41 | y | 794 | 258 | |||
