Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2017-05-20 06:13:36.0 |
| Date & Time (Local) | 1396/2/30 10:43:36.0 |

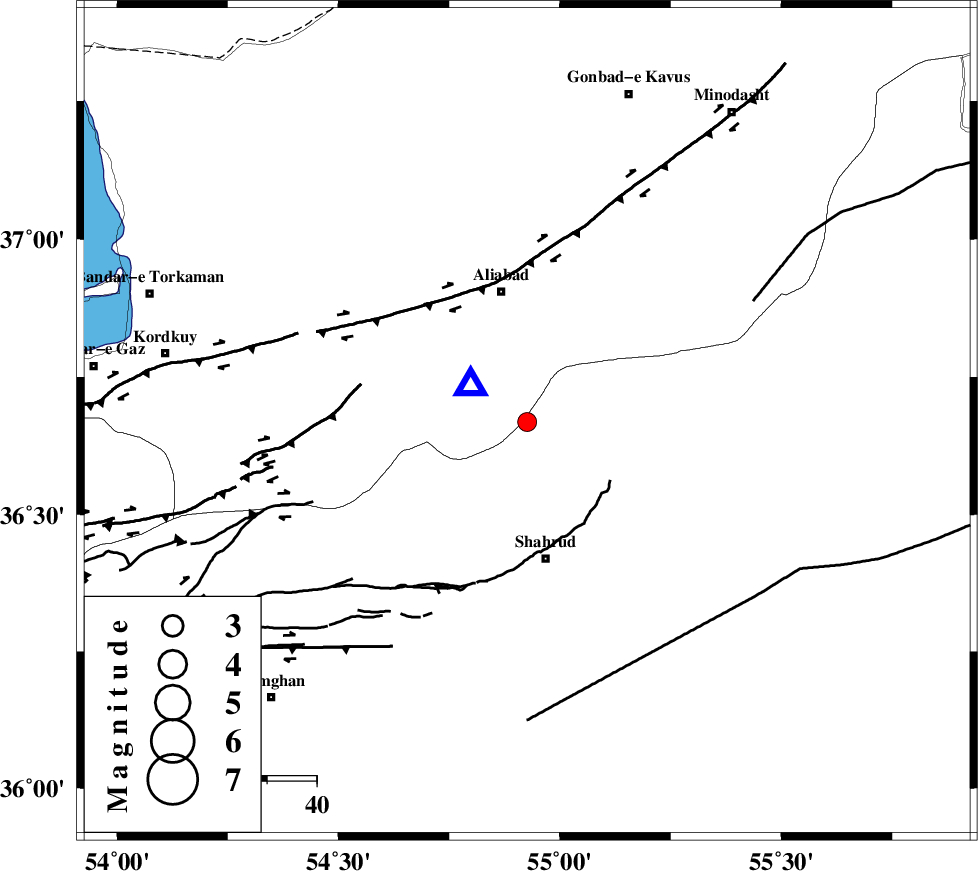

| Location | Lat:36.668 Lon: 54.926 |
| Region | Semnan Province, 28 km North of Shahrud |
Nearest Cities |
|
| 16 km North West of Qaleh-ye nokharqan, Semnan Province | |
| 22 km North of Bastam, Semnan Province | |
| 27 km South of Ali Abad, Golestan Province | |
| 28 km North of Shahrud, Semnan Province | |
| 33 km North East of Majen, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 11 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 35 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 38 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116139 | IIEES | DAMV | E | 30.6 | 0.37 | 2017-05-20 06:15:00 | 2017-05-21 05:44:00 | n |
| 116140 | IIEES | DAMV | N | 22.4 | 0.44 | 2017-05-20 06:15:03 | 2017-05-21 05:44:00 | n |
| 116141 | IIEES | TABS | N | 16.9 | 0.91 | 2017-05-20 06:15:47 | 2017-05-21 05:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2017-05-20 06:13:56 | -0.06 | y | 122 | 127 | |||
| IIEES | SHRO | N | Sg | E | 2017-05-20 06:14:11 | 0.02 | y | 122 | 127 | |||
| IIEES | DAMV | Z | Pn | E | 2017-05-20 06:14:20 | 0.03 | y | 290 | 247 | |||
| IIEES | DAMV | N | Sg | E | 2017-05-20 06:14:57 | -0.02 | y | 290 | 247 | |||
| IIEES | TABS | Z | Pn | E | 2017-05-20 06:14:32 | 0.03 | y | 390 | 149 | |||
