Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2017-05-20 19:42:23.6 |
| Date & Time (Local) | 1396/2/31 00:12:23.6 |

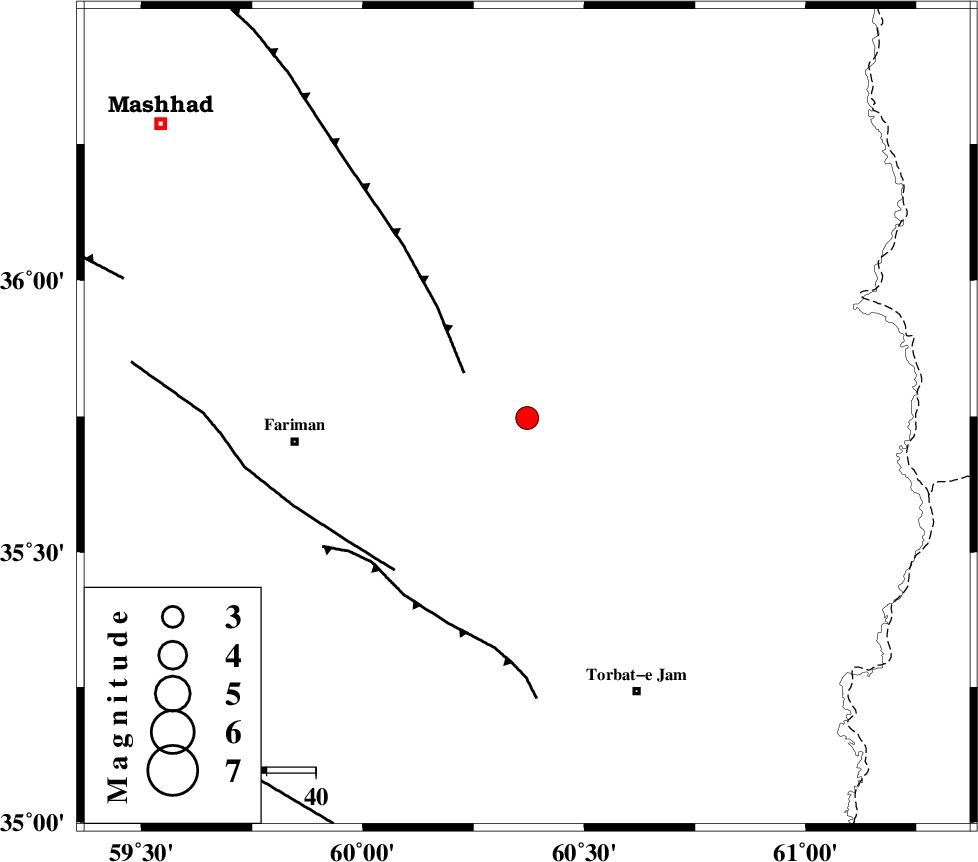

| Location | Lat:35.747 Lon: 60.371 |
| Region | Khorasan(center) Province, 48 km -East of Fariman |
Nearest Cities |
|
| 25 km South East of Kalateh menar, Khorasan(center) Province | |
| 27 km North West of Musaabad, Khorasan(center) Province | |
| 28 km North East of Sefidsang, Khorasan(center) Province | |
| 37 km North of Nasrabad, Khorasan(center) Province | |
| 40 km North East of Galandarabad, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BINALUD_F1 (Length: 178 km) , Distance to epicenter: 16 km | |
| TORBAT_E_JAM_F1 (Length: 71 km) , Distance to epicenter: 41 km | |
| TORBAT_E_JAM_F2 (Length: 57 km) , Distance to epicenter: 43 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116148 | IIEES | SHRT | N | 154.1 | 0.4 | 2017-05-20 19:43:33 | 2017-05-21 05:44:00 | n |
| 116149 | IIEES | SHRT | E | 107.2 | 0.4 | 2017-05-20 19:43:33 | 2017-05-21 05:44:00 | n |
| 116150 | IIEES | BJRD | N | 47.8 | 0.41 | 2017-05-20 19:44:02 | 2017-05-21 05:44:00 | n |
| 116151 | IIEES | BJRD | E | 74.4 | 0.65 | 2017-05-20 19:44:07 | 2017-05-21 05:44:00 | n |
| 116152 | IIEES | TABS | N | 35.1 | 0.66 | 2017-05-20 19:44:25 | 2017-05-21 05:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2017-05-20 19:42:59 | -0.37 | y | 233 | 182 | |||
| IIEES | BJRD | Z | Pn | E | 2017-05-20 19:43:14 | 0.5 | y | 342 | 310 | |||
| IIEES | TABS | Z | Pn | E | 2017-05-20 19:43:18 | 0.31 | y | 378 | 233 | |||
| IIEES | SHRO | Z | Pn | E | 2017-05-20 19:43:19 | -0.52 | y | 395 | 275 | |||
| IIEES | BSRN | Z | Pn | E | 2017-05-20 19:43:25 | 0.45 | y | 435 | 196 | |||
| IIEES | MRVT | Z | Pn | E | 2017-05-20 19:43:25 | -0.35 | y | 437 | 300 | |||
| IIEES | YZKH | Z | Pn | E | 2017-05-20 19:43:52 | 0.04 | y | 650 | 237 | |||
