Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2017-06-05 00:28:35.8 |
| Date & Time (Local) | 1396/3/15 04:58:35.8 |

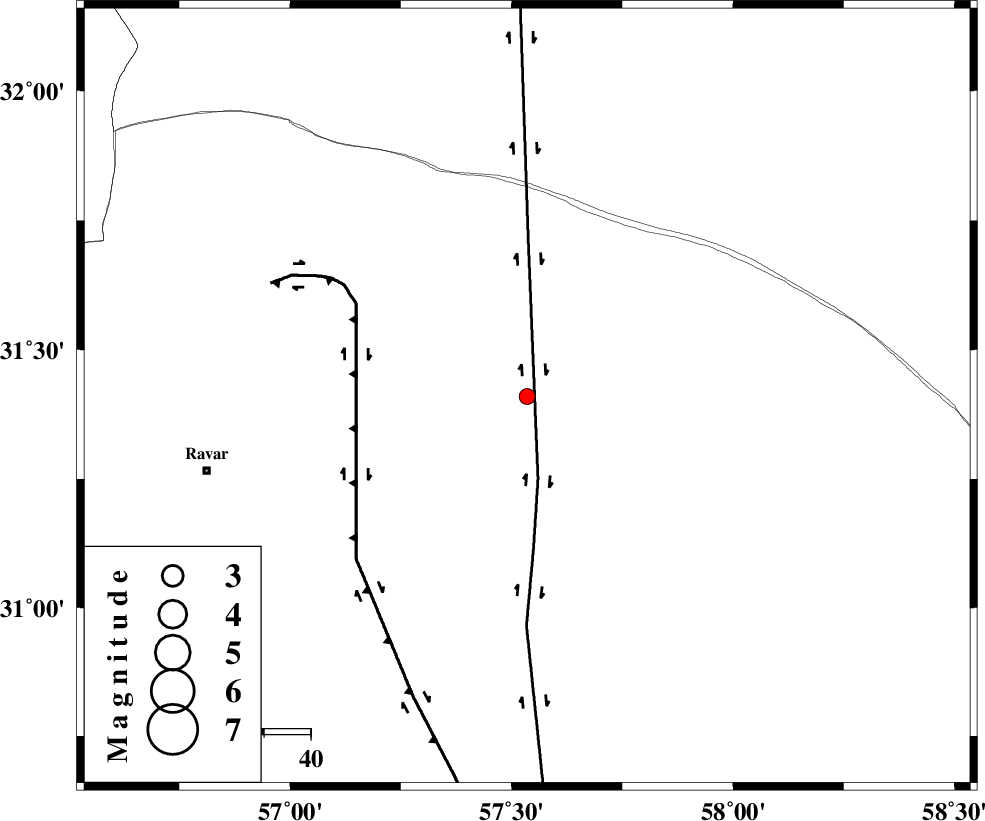

| Location | Lat:31.409 Lon: 57.535 |
| Region | Kerman Province, 70 km North-East of Ravar |
Nearest Cities |
|
| 70 km North East of Ravar, Kerman Province | |
| 71 km North East of Dehali, Kerman Province | |
| 83 km South of Hoz-e qorban, Yazd Province | |
| 90 km North East of Hejdak, Kerman Province | |
| 92 km North East of Harjand, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 18 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 42 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 93 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116527 | IIEES | BSRN | N | 40 | 0.09 | 2017-06-05 00:29:24 | 2017-06-06 06:01:00 | n |
| 116528 | IIEES | BSRN | E | 38.4 | 0.28 | 2017-06-05 00:29:30 | 2017-06-06 06:01:00 | n |
| 116529 | IIEES | KRBR | E | 43.7 | 0.25 | 2017-06-05 00:29:27 | 2017-06-06 06:01:00 | n |
| 116530 | IIEES | KRBR | N | 35.9 | 0.33 | 2017-06-05 00:29:28 | 2017-06-06 06:01:00 | n |
| 116531 | IIEES | YZKH | N | 6.8 | 0.45 | 2017-06-05 00:30:07 | 2017-06-06 06:01:00 | n |
| 116532 | IIEES | YZKH | E | 10.5 | 0.32 | 2017-06-05 00:30:08 | 2017-06-06 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2017-06-05 00:29:02 | 0.11 | y | 163 | 67 | |||
| IIEES | BSRN | N | Sg | E | 2017-06-05 00:29:22 | -0.04 | y | 163 | 67 | |||
| IIEES | KRBR | Z | Pg | E | 2017-06-05 00:29:04 | -0.02 | y | 175 | 205 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-05 00:29:20 | 0.01 | y | 299 | 292 | |||
| IIEES | SHRT | Z | Pn | E | 2017-06-05 00:29:27 | -0.06 | y | 359 | 45 | |||
