Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-06-07 09:32:58.1 |
| Date & Time (Local) | 1396/3/17 14:02:58.1 |

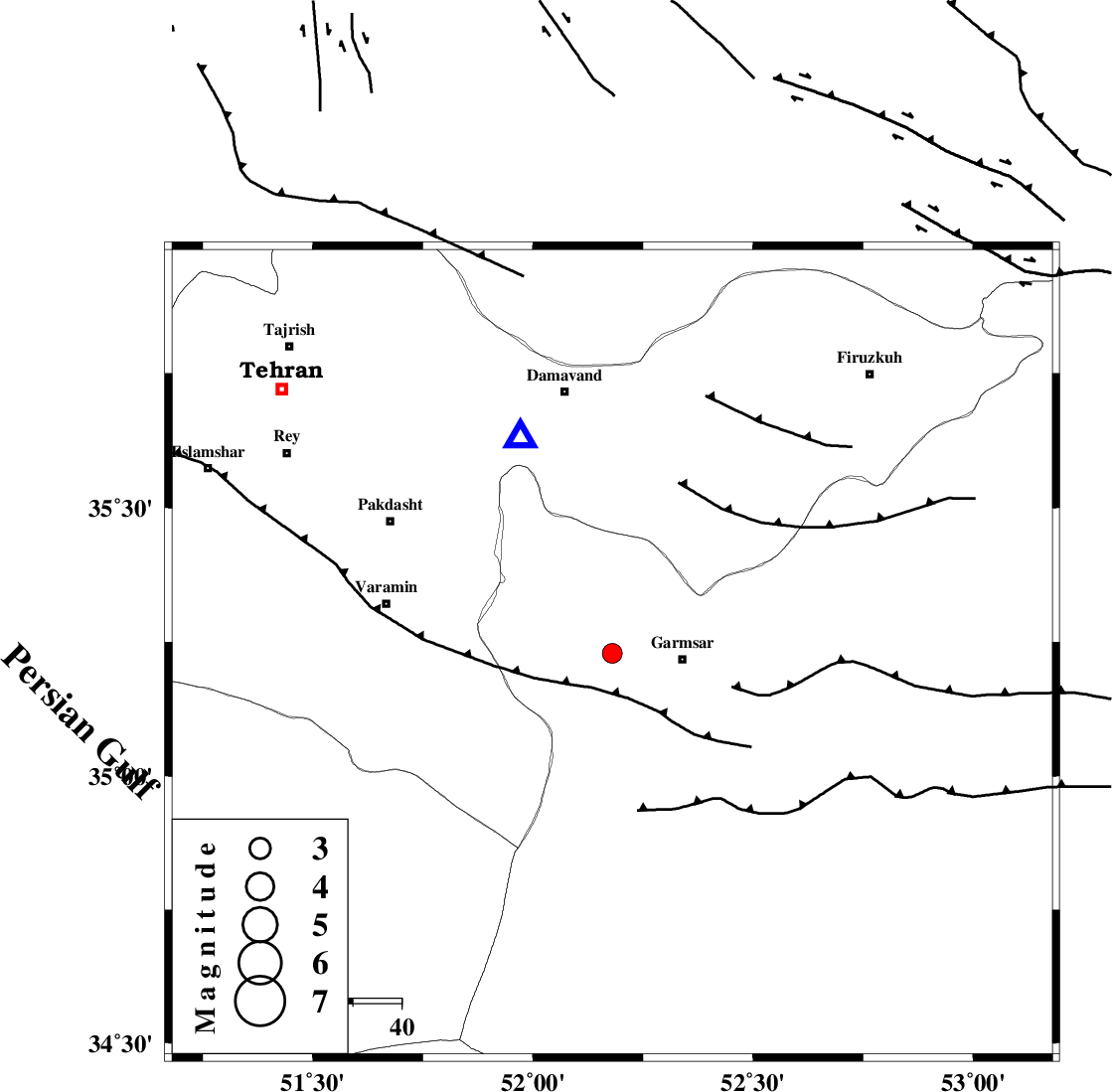

| Location | Lat:35.229 Lon: 52.18 |
| Region | Semnan Province, 14 km -West of Garmsar |
Nearest Cities |
|
| 14 km North West of Lajran, Semnan Province | |
| 14 km North West of Garmsar, Semnan Province | |
| 16 km South East of Evanekay, Semnan Province | |
| 19 km East of Cheshmeh nadi, Semnan Province | |
| 22 km North West of Gardovan, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 6 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 11 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 22 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116654 | IIEES | GHVR | N | 191.5 | 0.44 | 2017-06-07 09:33:40 | 2017-06-10 06:56:00 | n |
| 116655 | IIEES | GHVR | E | 270.4 | 0.6 | 2017-06-07 09:33:40 | 2017-06-10 06:56:00 | n |
| 116656 | IIEES | KHMZ | N | 31.9 | 0.52 | 2017-06-07 09:34:15 | 2017-06-10 06:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2017-06-07 09:33:07 | 0.17 | y | 48.4 | 337 | |||
| IIEES | GHVR | Z | Pg | E | 2017-06-07 09:33:18 | 0.26 | y | 119 | 226 | |||
| IIEES | GHVR | N | Sg | E | 2017-06-07 09:33:32 | 0.14 | y | 119 | 226 | |||
| IIEES | THKV | Z | Pg | E | 2017-06-07 09:33:21 | -0.25 | y | 140 | 303 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-07 09:33:32 | -0.01 | y | 211 | 250 | |||
| IIEES | ASAO | N | Sg | E | 2017-06-07 09:33:57 | -0.32 | y | 211 | 250 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-06-07 09:33:38 | 0.36 | y | 262 | 232 | |||
| IIEES | KHMZ | N | Sg | E | 2017-06-07 09:34:12 | 0.02 | y | 262 | 232 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-07 09:33:40 | -0.33 | y | 276 | 168 | |||
| IIEES | NASN | N | Sg | E | 2017-06-07 09:34:16 | -0.04 | y | 276 | 168 | |||
