Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2017-06-25 07:37:59.9 |
| Date & Time (Local) | 1396/4/4 12:07:59.9 |

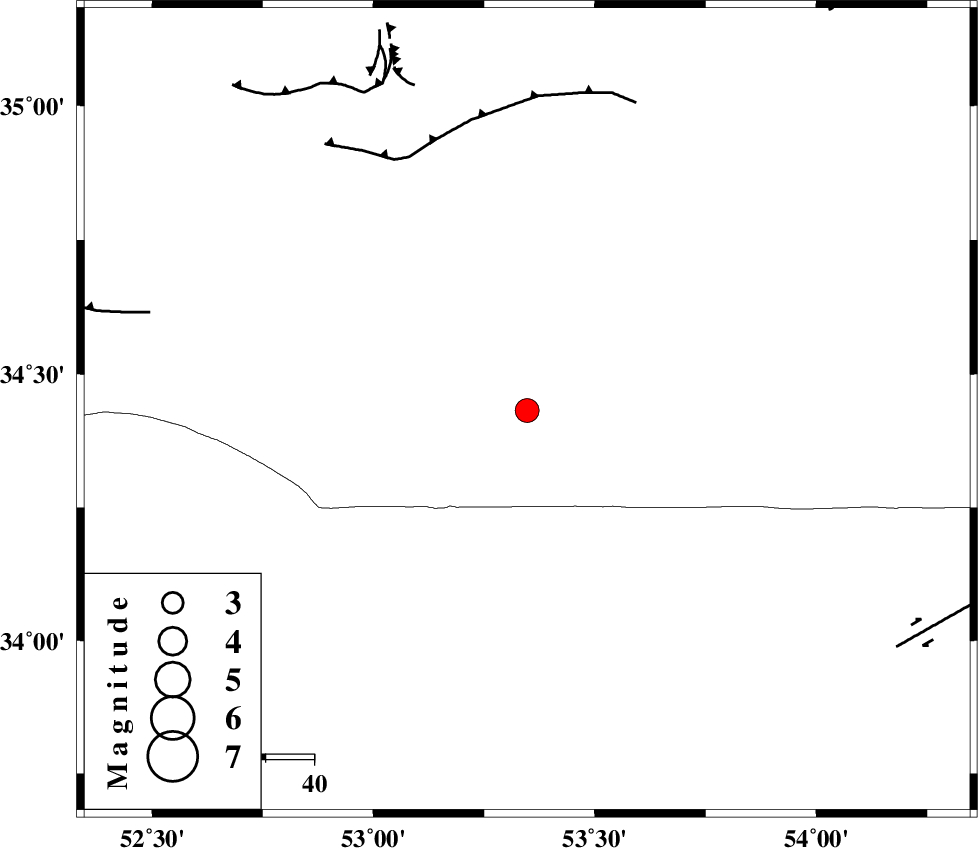

| Location | Lat:34.432 Lon: 53.347 |
| Region | Semnan Province, 126 km South of Semnan |
Nearest Cities |
|
| 87 km North of Maedan, Esfahan Province | |
| 107 km North West of Jondaq, Esfahan Province | |
| 111 km South East of Lasjerd, Semnan Province | |
| 114 km South East of Kohanabad, Semnan Province | |
| 115 km South East of Sorkheh, Semnan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 58 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 75 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 79 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117099 | IIEES | DAMV | N | 192.5 | 0.25 | 2017-06-25 07:38:54 | 2017-06-25 08:11:00 | n |
| 117100 | IIEES | DAMV | E | 304.8 | 0.37 | 2017-06-25 07:38:55 | 2017-06-25 08:11:00 | n |
| 117101 | IIEES | NASN | N | 457 | 0.18 | 2017-06-25 07:38:56 | 2017-06-25 08:11:00 | n |
| 117102 | IIEES | NASN | E | 321.4 | 0.32 | 2017-06-25 07:39:03 | 2017-06-25 08:11:00 | n |
| 117103 | IIEES | GHVR | E | 265.9 | 0.38 | 2017-06-25 07:38:58 | 2017-06-25 08:11:00 | n |
| 117104 | IIEES | YZKH | N | 92.7 | 0.44 | 2017-06-25 07:39:21 | 2017-06-25 08:11:00 | n |
| 117105 | IIEES | THKV | E | 334.7 | 0.46 | 2017-06-25 07:39:20 | 2017-06-25 08:11:00 | n |
| 117106 | IIEES | THKV | N | 251 | 0.36 | 2017-06-25 07:39:20 | 2017-06-25 08:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2017-06-25 07:38:29 | -0.3 | y | 183 | 317 | |||
| IIEES | DAMV | N | Sg | E | 2017-06-25 07:38:52 | -0.05 | y | 183 | 317 | |||
| IIEES | NASN | Z | Pg | E | 2017-06-25 07:38:30 | -0.16 | y | 188 | 196 | |||
| IIEES | GHVR | Z | Pg | E | 2017-06-25 07:38:31 | -0.08 | y | 193 | 272 | |||
| IIEES | YZKH | Z | Pn | E | 2017-06-25 07:38:39 | -0.17 | y | 254 | 153 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-25 07:38:42 | -0.03 | y | 279 | 307 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-25 07:38:44 | -0.29 | y | 299 | 53 | |||
| IIEES | ASAO | Z | Pn | E | 2017-06-25 07:38:45 | 0.05 | y | 305 | 273 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-06-25 07:38:47 | -0.24 | y | 322 | 257 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-25 07:38:52 | 0.46 | y | 359 | 103 | |||
| IIEES | GIDE | Z | Pn | E | 2017-06-25 07:39:00 | 0.81 | y | 416 | 313 | |||
| IIEES | MRVT | Z | Pn | E | 2017-06-25 07:39:01 | 0 | y | 435 | 34 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-06-25 07:39:07 | -0.91 | y | 490 | 302 | |||
| IIEES | SNGE | Z | Pn | E | 2017-06-25 07:39:17 | 1.38 | y | 554 | 279 | |||
| IIEES | BSRN | Z | Pn | E | 2017-06-25 07:39:22 | -0.01 | y | 604 | 115 | |||
