Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2017-07-14 01:17:32.3 |
| Date & Time (Local) | 1396/4/23 05:47:32.3 |

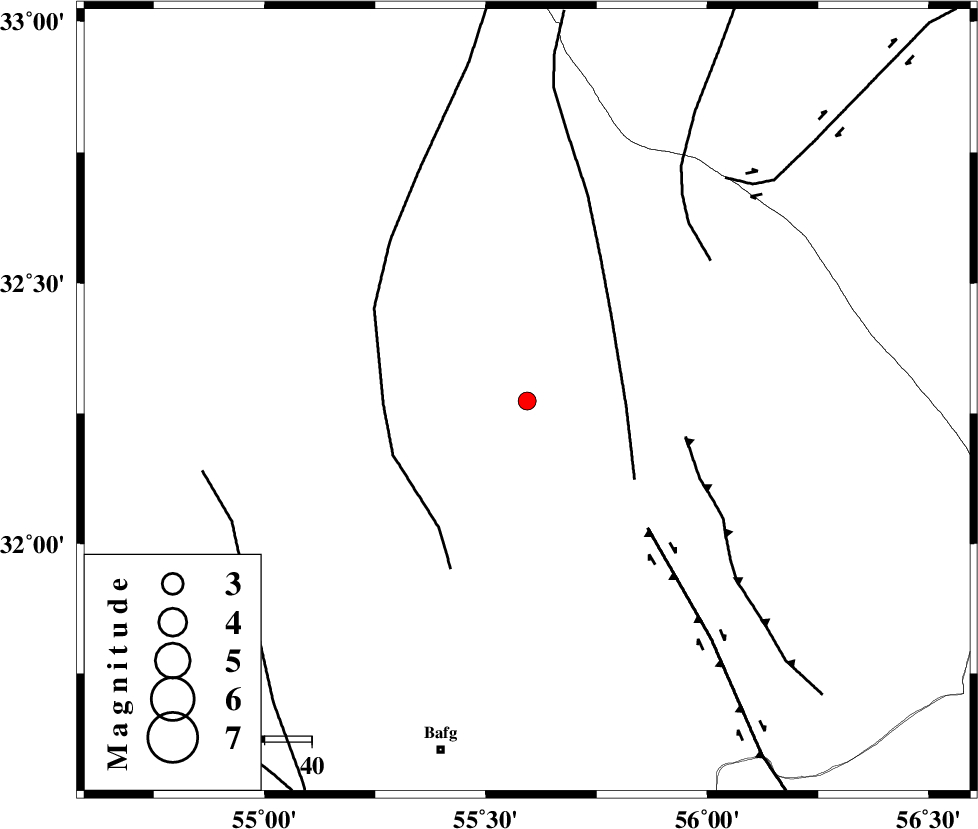

| Location | Lat:32.274 Lon: 55.593 |
| Region | Yazd Province, 77 km North-East of Bafq |
Nearest Cities |
|
| 61 km North West of Behabad, Yazd Province | |
| 62 km North West of Kushk, Yazd Province | |
| 74 km North East of Mobarake, Yazd Province | |
| 76 km North West of Benestan, Yazd Province | |
| 77 km North East of Bafq, Yazd Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SARBALA_F (Length: 92 km) , Distance to epicenter: 21 km | |
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 31 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 35 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117626 | IIEES | NASN | N | 14.7 | 0.32 | 2017-07-14 01:18:50 | 2017-07-15 06:00:00 | n |
| 117627 | IIEES | KRBR | N | 24.9 | 0.59 | 2017-07-14 01:18:56 | 2017-07-15 06:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-07-14 01:17:48 | 0.18 | y | 95.1 | 278 | |||
| IIEES | YZKH | N | Sg | E | 2017-07-14 01:18:00 | -0.15 | y | 95.1 | 278 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-14 01:18:05 | 0.05 | y | 209 | 43 | |||
| IIEES | NASN | Z | Pn | E | 2017-07-14 01:18:15 | 2.69 | n | 4 | 268 | 283 | ||
| IIEES | KRBR | Z | Pn | E | 2017-07-14 01:18:14 | -0.08 | y | 277 | 156 | |||
| IIEES | KRBR | N | Sg | E | 2017-07-14 01:18:50 | 0.11 | y | 277 | 156 | |||
| IIEES | BSRN | Z | Pn | E | 2017-07-14 01:18:21 | -0.23 | y | 335 | 95 | |||
| IIEES | SHRO | Z | Pn | E | 2017-07-14 01:18:31 | 0.13 | y | 416 | 5 | |||
