Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2017-07-20 15:20:38.1 |
| Date & Time (Local) | 1396/4/29 19:50:38.1 |

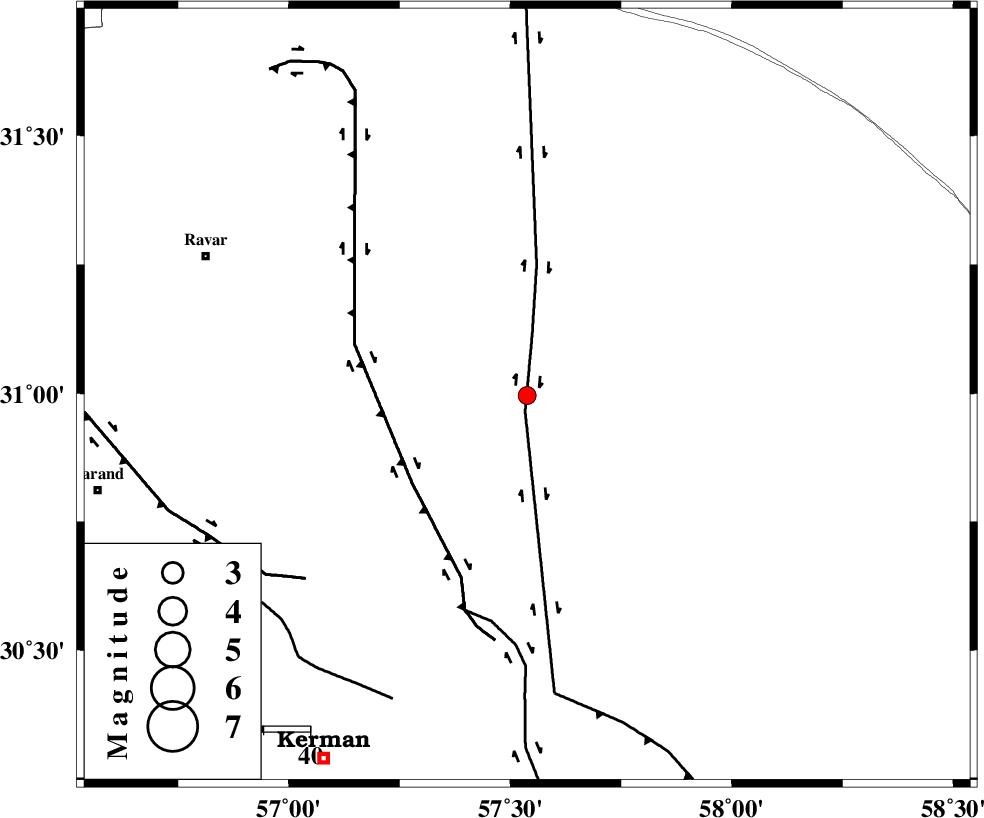

| Location | Lat:30.996 Lon: 57.538 |
| Region | Kerman Province, 75 km South-East of Ravar |
Nearest Cities |
|
| 54 km North East of Harjand, Kerman Province | |
| 60 km North East of Hejdak, Kerman Province | |
| 60 km North East of Dehlulu, Kerman Province | |
| 67 km North West of Shahdad, Kerman Province | |
| 70 km North West of Estehkam, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 3 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 31 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 48 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117882 | IIEES | BSRN | E | 43.8 | 0.21 | 2017-07-20 15:21:32 | 2017-07-23 04:17:00 | n |
| 117883 | IIEES | BSRN | N | 56.7 | 0.23 | 2017-07-20 15:21:36 | 2017-07-23 04:17:00 | n |
| 117884 | IIEES | TABS | N | 12.6 | 0.42 | 2017-07-20 15:22:13 | 2017-07-23 04:17:00 | n |
| 117885 | IIEES | YZKH | N | 13.3 | 0.8 | 2017-07-20 15:22:12 | 2017-07-23 04:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-07-20 15:21:00 | 0.14 | y | 135 | 214 | |||
| IIEES | KRBR | N | S | E | 2017-07-20 15:21:17 | -0.04 | y | 135 | 214 | |||
| IIEES | BSRN | Z | Pg | E | 2017-07-20 15:21:08 | -0.3 | y | 185 | 54 | |||
| IIEES | BSRN | N | Sg | E | 2017-07-20 15:21:31 | 0.17 | y | 185 | 54 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-20 15:21:22 | 0.13 | y | 297 | 352 | |||
| IIEES | YZKH | Z | Pn | E | 2017-07-20 15:21:25 | -0.1 | y | 319 | 300 | |||
