Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-08-08 01:30:18.7 |
| Date & Time (Local) | 1396/5/17 06:00:18.7 |
| Location | Lat:31.883 Lon: 55.981 |
| Region | Yazd Province, 63 km North-East of Bafq |
Nearest Cities |
|
| 5 km North of Behabad, Yazd Province | |
| 19 km North West of Benestan, Yazd Province | |
| 24 km North East of Kushk, Yazd Province | |
| 33 km North West of Asfih, Yazd Province | |
| 45 km North of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

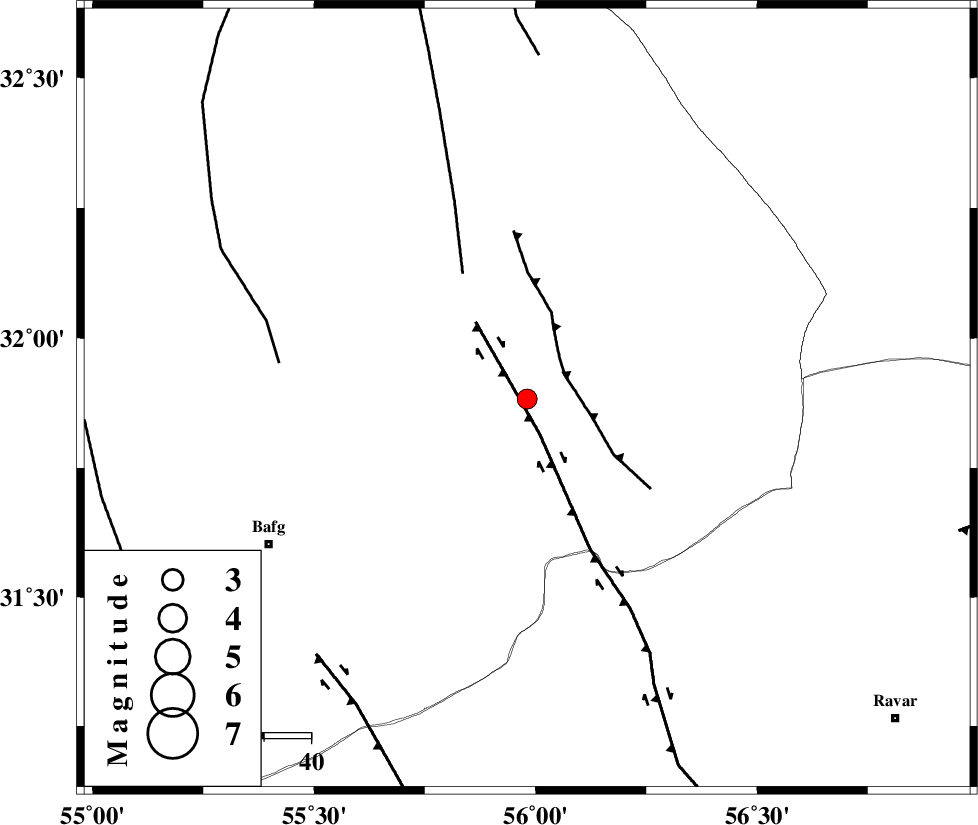

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 8 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 10 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 30 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118396 | IIEES | YZKH | N | 92.4 | 0.36 | 2017-08-08 01:31:04 | 2017-08-08 05:30:00 | n |
| 118397 | IIEES | TABS | N | 55.4 | 0.44 | 2017-08-08 01:31:29 | 2017-08-08 05:30:00 | n |
| 118398 | IIEES | KRBR | N | 127.5 | 0.55 | 2017-08-08 01:31:27 | 2017-08-08 05:30:00 | n |
| 118399 | IIEES | KRBR | E | 79.4 | 0.41 | 2017-08-08 01:31:27 | 2017-08-08 05:30:00 | n |
| 118400 | IIEES | NASN | N | 14.8 | 0.5 | 2017-08-08 01:31:57 | 2017-08-08 05:30:00 | n |
| 118401 | IIEES | SHRO | E | 7.6 | 0.62 | 2017-08-08 01:32:38 | 2017-08-08 05:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-08-08 01:30:42 | -0.14 | y | 143 | 294 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-08 01:30:54 | 0.41 | y | 223 | 28 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-08 01:30:54 | 0.26 | y | 224 | 160 | |||
| IIEES | KRBR | N | Sg | E | 2017-08-08 01:31:22 | 0 | y | 224 | 160 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-08 01:31:02 | -0.6 | y | 298 | 87 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-08 01:31:05 | -0.01 | y | 315 | 290 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-08 01:31:22 | 0.16 | y | 449 | 63 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-08 01:31:23 | -0.12 | y | 458 | 0 | |||
