Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2017-08-14 06:41:03.3 |
| Date & Time (Local) | 1396/5/23 11:11:03.3 |
| Location | Lat:32.226 Lon: 56.083 |
| Region | Yazd Province, 95 km North-East of Bafq |
Nearest Cities |
|
| 40 km North of Behabad, Yazd Province | |
| 55 km North of Benestan, Yazd Province | |
| 61 km North East of Kushk, Yazd Province | |
| 63 km North West of Asfih, Yazd Province | |
| 84 km North of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

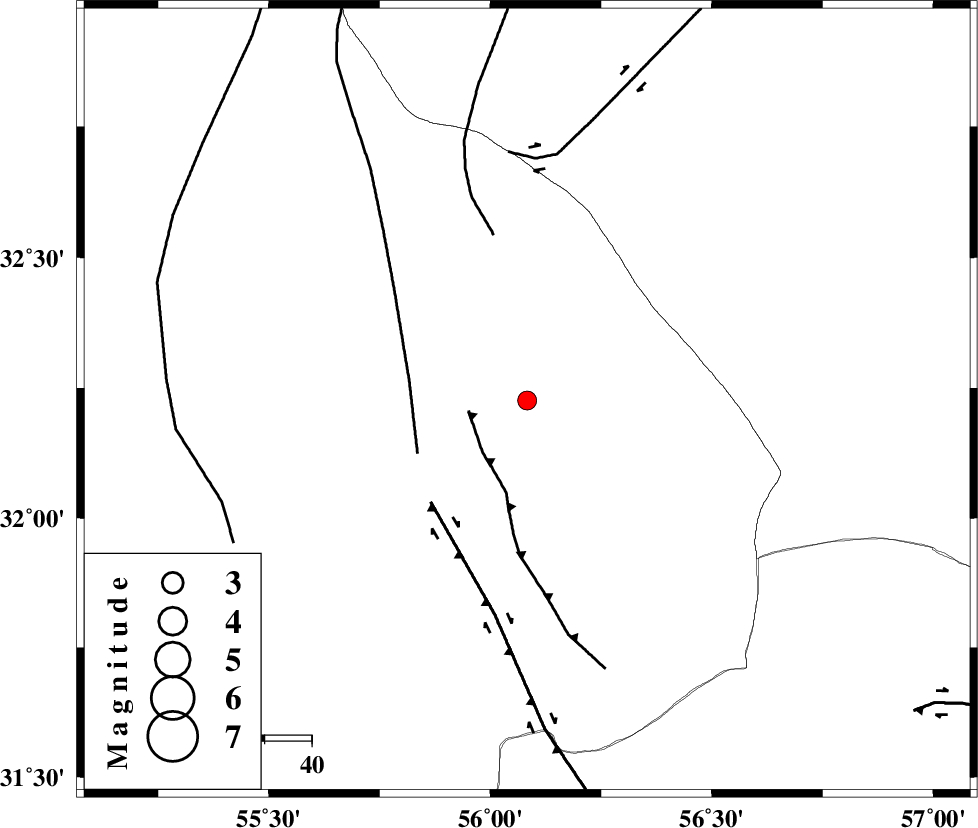

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 13 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 25 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 30 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118546 | IIEES | YZKH | E | 99.4 | 0.28 | 2017-08-14 06:41:47 | 2017-08-14 09:06:00 | n |
| 118547 | IIEES | YZKH | N | 125 | 0.32 | 2017-08-14 06:41:48 | 2017-08-14 09:06:00 | n |
| 118548 | IIEES | TABS | N | 78.2 | 0.46 | 2017-08-14 06:41:58 | 2017-08-14 09:06:00 | n |
| 118549 | IIEES | KRBR | N | 42.3 | 0.56 | 2017-08-14 06:42:26 | 2017-08-14 09:06:00 | n |
| 118550 | IIEES | KRBR | E | 31.2 | 0.55 | 2017-08-14 06:42:29 | 2017-08-14 09:06:00 | n |
| 118551 | IIEES | NASN | E | 16.3 | 0.53 | 2017-08-14 06:42:32 | 2017-08-14 09:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-08-14 06:41:26 | -0.32 | y | 142 | 278 | |||
| IIEES | TABS | Z | Pg | E | 2017-08-14 06:41:33 | -0.15 | y | 185 | 31 | |||
| IIEES | TABS | N | Sg | E | 2017-08-14 06:41:56 | 0.04 | y | 185 | 31 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-14 06:41:43 | -0.07 | y | 257 | 165 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-14 06:41:47 | 0.09 | y | 289 | 95 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-14 06:41:50 | 0.47 | y | 314 | 283 | |||
