Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2017-08-25 21:30:49.4 |
| Date & Time (Local) | 1396/6/4 02:00:49.4 |

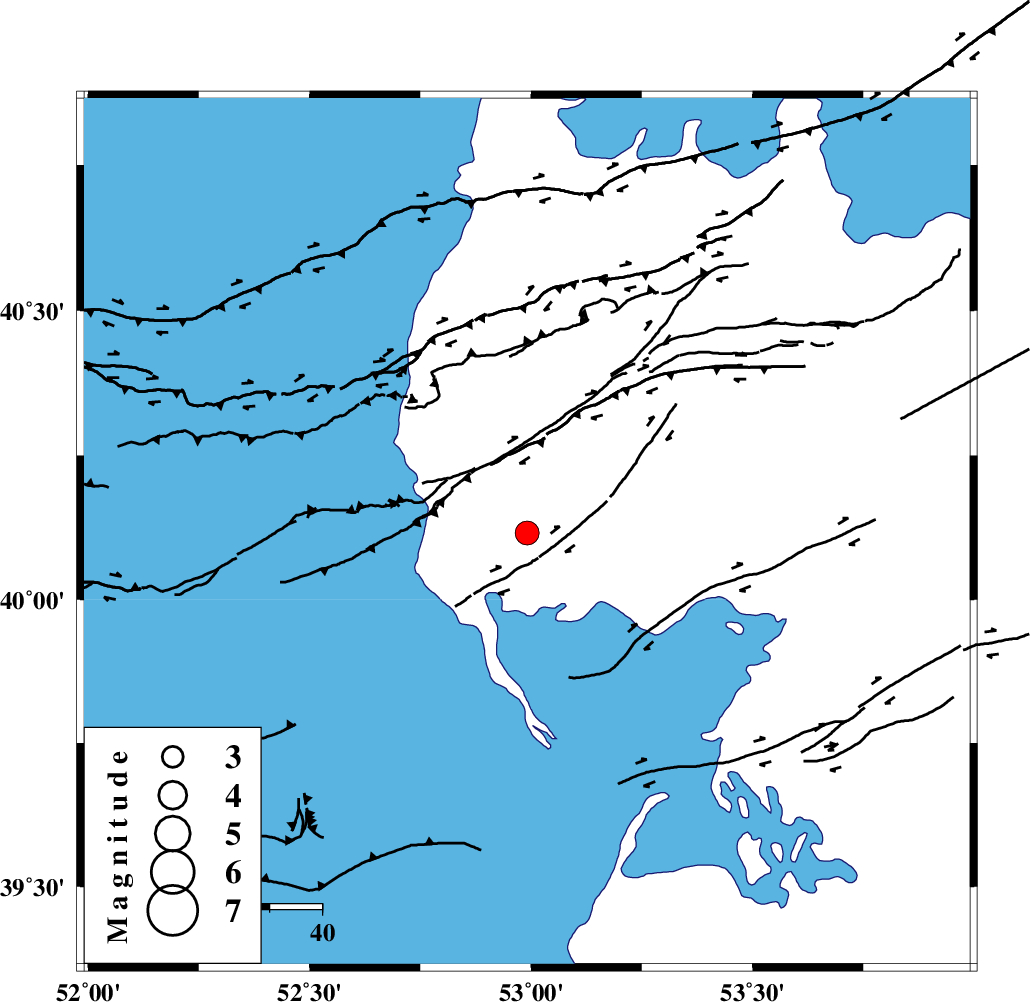

| Location | Lat:40.115 Lon: 52.991 |
| Region | , 10 km of Turkmenbasi |
Nearest Cities |
|
| 10 km North of Turkmenbasi, Turkmenistan Province | |
| 266 km South East of Baku, Azerbaijan Province | |
| 320 km North West of Dashliborun, Golestan Province | |
| 324 km North West of Karand, Golestan Province | |
| 332 km North West of Enchehborun, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 110 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >8.2 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118872 | IIEES | MRVT | N | 45.3 | 0.12 | 2017-08-25 21:32:23 | 2017-08-26 05:00:00 | n |
| 118873 | IIEES | GIDE | N | 31.3 | 0.26 | 2017-08-25 21:32:36 | 2017-08-26 05:00:00 | n |
| 118874 | IIEES | GIDE | E | 23 | 0.27 | 2017-08-25 21:32:39 | 2017-08-26 05:00:00 | n |
| 118875 | IIEES | GRMI | N | 30.5 | 0.39 | 2017-08-25 21:32:41 | 2017-08-26 05:00:00 | n |
| 118876 | IIEES | GRMI | E | 25.1 | 0.26 | 2017-08-25 21:32:42 | 2017-08-26 05:00:00 | n |
| 118877 | IIEES | BJRD | E | 41.8 | 0.37 | 2017-08-25 21:32:53 | 2017-08-26 05:00:00 | n |
| 118878 | IIEES | BJRD | N | 29.5 | 0.49 | 2017-08-25 21:32:53 | 2017-08-26 05:00:00 | n |
| 118879 | IIEES | THKV | N | 32.7 | 0.2 | 2017-08-25 21:32:52 | 2017-08-26 05:00:00 | n |
| 118880 | IIEES | THKV | E | 22.8 | 0.29 | 2017-08-25 21:32:54 | 2017-08-26 05:00:00 | n |
| 118881 | IIEES | DAMV | E | 18.5 | 0.23 | 2017-08-25 21:32:53 | 2017-08-26 05:00:00 | n |
| 118882 | IIEES | DAMV | N | 20.6 | 0.3 | 2017-08-25 21:32:53 | 2017-08-26 05:00:00 | n |
| 118883 | IIEES | ZNJK | E | 29.5 | 0.43 | 2017-08-25 21:32:58 | 2017-08-26 05:00:00 | n |
| 118884 | IIEES | ZNJK | N | 22.1 | 0.43 | 2017-08-25 21:32:59 | 2017-08-26 05:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2017-08-25 21:31:44 | -0.11 | y | 383 | 134 | |||
| IIEES | GIDE | Z | Pn | E | 2017-08-25 21:31:52 | -0.21 | y | 445 | 218 | |||
| IIEES | GRMI | Z | Pn | E | 2017-08-25 21:31:54 | 0.25 | y | 462 | 253 | |||
| IIEES | BJRD | Z | Pn | E | 2017-08-25 21:31:55 | 0.08 | y | 468 | 124 | |||
| IIEES | CHTH | Z | Pn | E | 2017-08-25 21:31:58 | -0.01 | y | 495 | 200 | |||
| IIEES | THKV | Z | Pn | E | 2017-08-25 21:31:59 | 0.46 | y | 502 | 202 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-25 21:32:00 | 0.18 | y | 506 | 191 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-25 21:32:02 | -0.17 | y | 527 | 149 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-08-25 21:32:03 | -0.58 | y | 536 | 226 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-25 21:32:37 | 0.19 | y | 806 | 152 | |||
