Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2017-09-08 15:24:06.2 |
| Date & Time (Local) | 1396/6/17 19:54:06.2 |

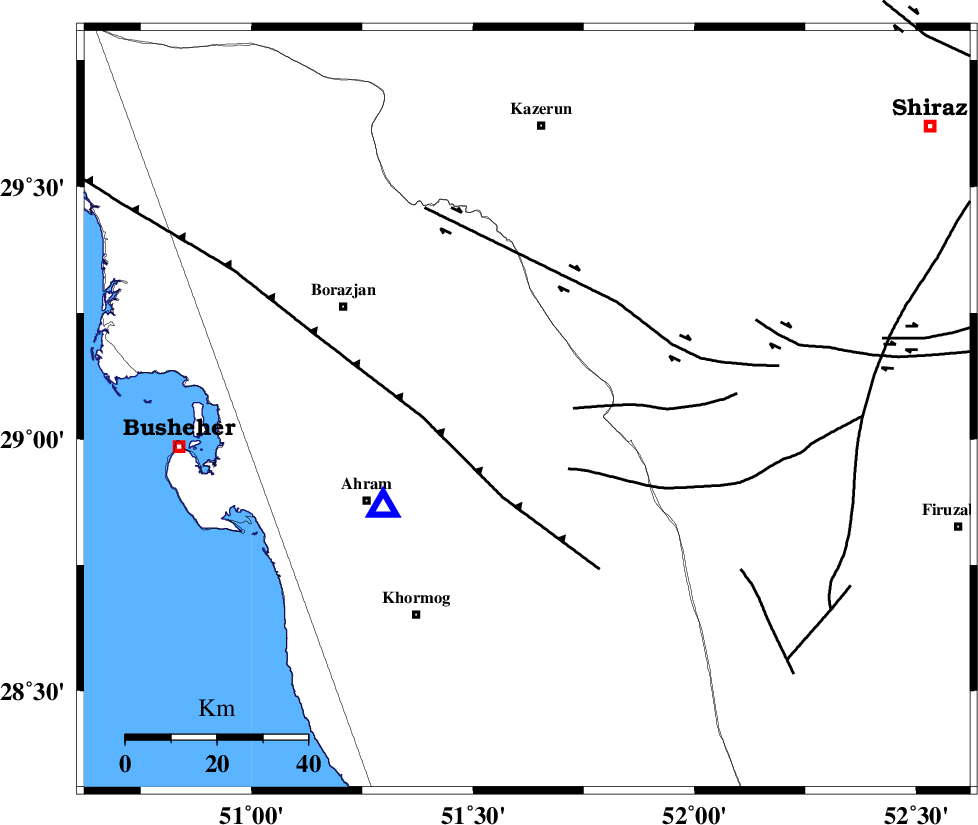

| Location | Lat:29.058 Lon: 51.622 |
| Region | Bushehr Province, 41 km North-East of Ahram |
Nearest Cities |
|
| 21 km North East of Kalameh, Bushehr Province | |
| 37 km North East of Bazuei, Bushehr Province | |
| 37 km West of Nujin, Fars Province | |
| 37 km South West of Dadin-e olia, Fars Province | |
| 40 km South West of Baladeh, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 31 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 41 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 48 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >5 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119414 | IIEES | GHIR | N | 5070.2 | 0.44 | 2017-09-08 15:24:55 | 2017-09-10 07:29:00 | n |
| 119415 | IIEES | GHIR | E | 3686.5 | 0.44 | 2017-09-08 15:25:00 | 2017-09-10 07:29:00 | n |
| 119416 | IIEES | BNDS | N | 98.9 | 0.65 | 2017-09-08 15:26:37 | 2017-09-10 07:29:00 | n |
| 119417 | IIEES | BNDS | E | 139.5 | 0.49 | 2017-09-08 15:26:52 | 2017-09-10 07:29:00 | n |
| 119418 | IIEES | KRBR | N | 171 | 0.68 | 2017-09-08 15:26:40 | 2017-09-10 07:29:00 | n |
| 119419 | IIEES | KRBR | E | 151.3 | 0.68 | 2017-09-08 15:26:44 | 2017-09-10 07:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | N | Pg | E | 2017-09-08 15:24:13 | 0.12 | y | 38.2 | 236 | |||
| IIEES | GHIR | Z | Pg | E | 2017-09-08 15:24:32 | -0.09 | y | 158 | 122 | |||
| IIEES | NASN | Z | Pn | E | 2017-09-08 15:25:07 | -0.29 | y | 430 | 15 | |||
| IIEES | BNDS | Z | Pn | E | 2017-09-08 15:25:13 | -0.14 | y | 483 | 111 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-08 15:25:17 | 0.06 | y | 509 | 77 | |||
| IIEES | KRBR | N | S | E | 2017-09-08 15:26:09 | 0.37 | y | 509 | 77 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-09-08 15:25:22 | 0.79 | y | 543 | 344 | |||
| IIEES | GHVR | Z | Pn | E | 2017-09-08 15:25:28 | 0.15 | y | 602 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2017-09-08 15:25:31 | -0.06 | y | 627 | 346 | |||
| IIEES | ILBA | Z | Pn | E | 2017-09-08 15:25:42 | -0.69 | y | 722 | 316 | |||
| IIEES | DAMV | Z | Pn | E | 2017-09-08 15:25:44 | -0.29 | y | 730 | 2 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-08 15:25:43 | -0.55 | y | 730 | 44 | |||
| IIEES | CHTH | Z | Pn | E | 2017-09-08 15:25:49 | 0.51 | y | 761 | 357 | |||
| IIEES | SNGE | Z | Pn | E | 2017-09-08 15:25:50 | -0.08 | y | 781 | 330 | |||
| IIEES | BSRN | Z | Pn | E | 2017-09-08 15:25:52 | 0.24 | y | 789 | 64 | |||
| IIEES | SHRO | Z | Pn | E | 2017-09-08 15:26:01 | -0.5 | y | 874 | 27 | |||
