Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2017-09-10 23:17:26.8 |
| Date & Time (Local) | 1396/6/20 03:47:26.8 |

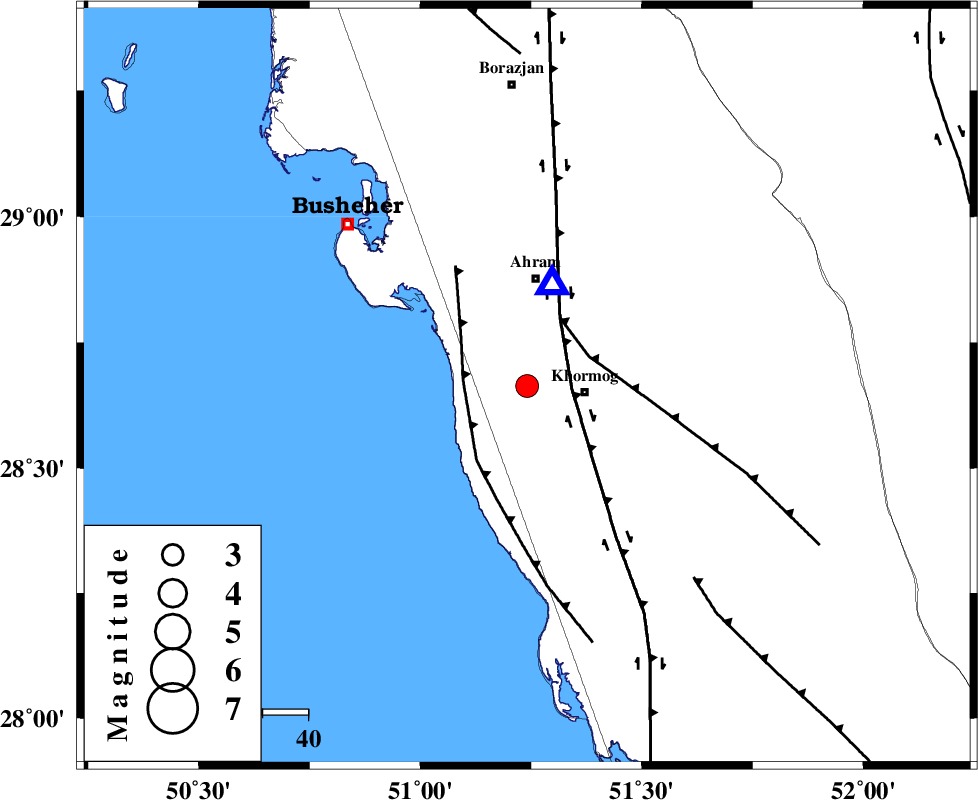

| Location | Lat:28.663 Lon: 51.241 |
| Region | Bushehr Province, 13 km -West of Khormog |
Nearest Cities |
|
| 5 km North of Derazi, Bushehr Province | |
| 13 km North West of Khormog, Bushehr Province | |
| 15 km North West of Buheyri, Bushehr Province | |
| 20 km East of Delvar, Bushehr Province | |
| 24 km South of Ahram, Bushehr Province | |
| Depth | 26 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 10 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 14 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 15 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 2.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119450 | IIEES | AHRM | N | 4230.7 | 0.49 | 2017-09-10 23:17:38 | 2017-09-11 07:43:00 | n |
| 119451 | IIEES | GHIR | E | 498.5 | 0.49 | 2017-09-10 23:18:17 | 2017-09-11 07:43:00 | n |
| 119452 | IIEES | GHIR | N | 378 | 0.37 | 2017-09-10 23:18:17 | 2017-09-11 07:43:00 | n |
| 119453 | IIEES | KRBR | E | 10.9 | 0.36 | 2017-09-10 23:19:41 | 2017-09-11 07:43:00 | n |
| 119454 | IIEES | KRBR | N | 8.4 | 0.36 | 2017-09-10 23:19:46 | 2017-09-11 07:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | N | Pg | E | 2017-09-10 23:17:32 | 0.08 | y | 23.2 | 14 | |||
| IIEES | AHRM | N | Sg | E | 2017-09-10 23:17:36 | -0.07 | y | 23.2 | 14 | |||
| IIEES | GHIR | Z | Pg | E | 2017-09-10 23:17:55 | -0.02 | y | 176 | 103 | |||
| IIEES | GHIR | N | Sg | E | 2017-09-10 23:18:16 | 0.06 | y | 176 | 103 | |||
| IIEES | NASN | Z | Pn | E | 2017-09-10 23:18:33 | -0.08 | y | 483 | 18 | |||
| IIEES | YZKH | Z | Pn | E | 2017-09-10 23:18:39 | 0.41 | y | 524 | 37 | |||
| IIEES | KRBR | Z | Pn | E | 2017-09-10 23:18:42 | -0.35 | y | 556 | 73 | |||
| IIEES | TABS | Z | Pn | E | 2017-09-10 23:19:11 | -0.12 | y | 787 | 44 | |||
