Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2017-09-21 01:17:10.8 |
| Date & Time (Local) | 1396/6/30 05:47:10.8 |

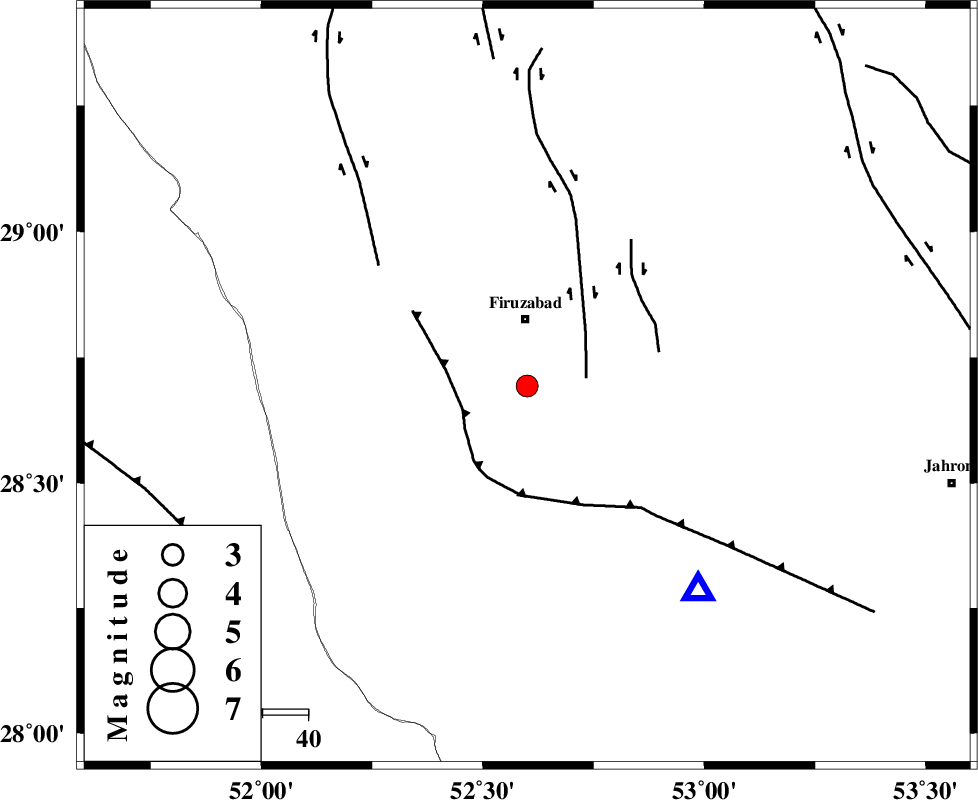

| Location | Lat:28.693 Lon: 52.6 |
| Region | Fars Province, 15 km South of Firuz Abad |
Nearest Cities |
|
| 8 km of Jaydasht, Fars Province | |
| 15 km South of Firuz Abad, Fars Province | |
| 16 km South of Ahmadabad, Fars Province | |
| 25 km South West of Meymand, Fars Province | |
| 25 km South West of Parzeytun, Fars Province | |
| Depth | 23 km |
| Agency | |
Faults within 150 km: |
|
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 13 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 15 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 30 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >7.3 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 119878 | IIEES | GHIR | N | 1148.2 | 0.49 | 2017-09-21 01:17:31 | 2017-09-24 09:31:00 | n |
| 119879 | IIEES | GHIR | E | 1404.5 | 0.49 | 2017-09-21 01:17:34 | 2017-09-24 09:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2017-09-21 01:17:19 | -2.34 | n | 4 | 58.9 | 140 | ||
| IIEES | AHRM | Z | Pg | E | 2017-09-21 01:17:32 | 0.22 | y | 129 | 279 | |||
| IIEES | AHRM | N | Sg | E | 2017-09-21 01:17:47 | -0.19 | y | 129 | 279 | |||
| IIEES | YZKH | Z | Pn | E | 2017-09-21 01:18:13 | -0.49 | y | 452 | 25 | |||
| IIEES | NASN | Z | Pn | E | 2017-09-21 01:18:15 | 0.43 | y | 456 | 2 | |||
| IIEES | NASN | N | S | E | 2017-09-21 01:19:01 | 0.03 | y | 456 | 2 | |||
