Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2017-09-26 06:57:02.1 |
| Date & Time (Local) | 1396/7/4 10:27:02.1 |

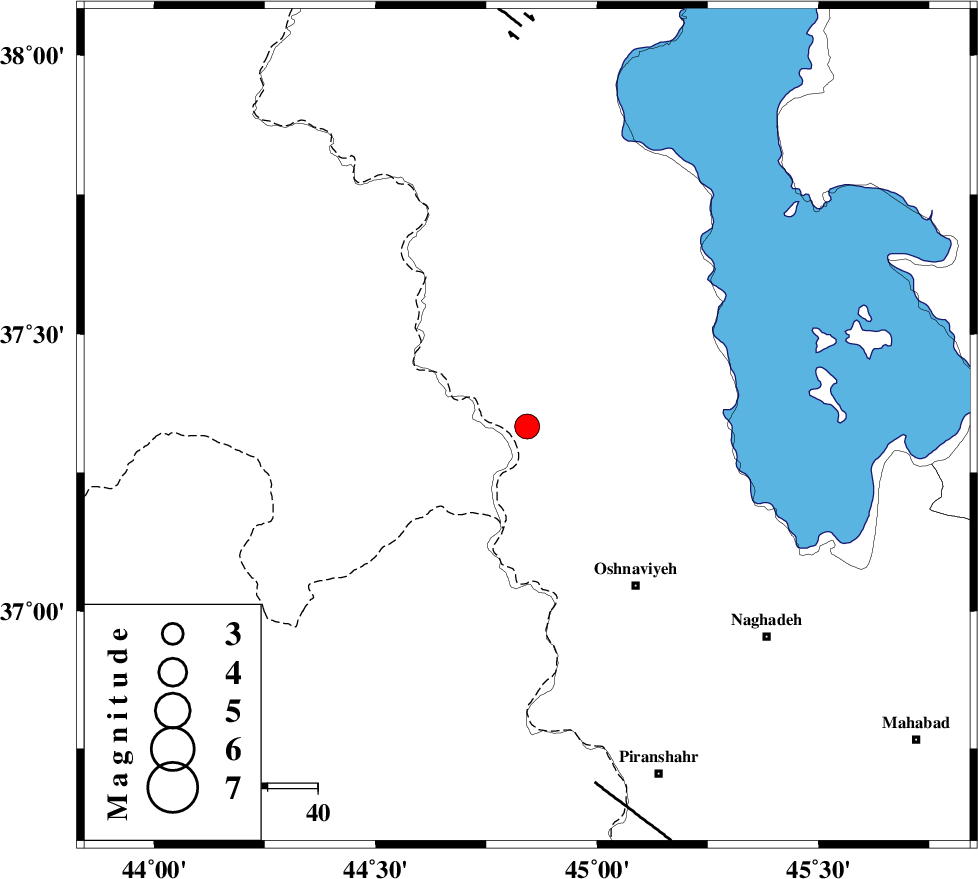

| Location | Lat:37.333 Lon: 44.842 |
| Region | Azarbaijan Gharbi Province, 31 km South-West of Orumiyeh |
Nearest Cities |
|
| 5 km of Razhan, Azarbaijan Gharbi Province | |
| 9 km of Silvaneh, Azarbaijan Gharbi Province | |
| 12 km North of Ziveh, Azarbaijan Gharbi Province | |
| 24 km West of Baranduz, Azarbaijan Gharbi Province | |
| 27 km South of Movana, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 73 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 80 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 104 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120003 | IIEES | SNGE | E | 104.3 | 0.32 | 2017-09-26 06:58:41 | 2017-09-26 07:18:00 | n |
| 120004 | IIEES | ILBA | N | 51.5 | 0.44 | 2017-09-26 06:58:54 | 2017-09-26 07:18:00 | n |
| 120005 | IIEES | ILBA | E | 48.3 | 0.71 | 2017-09-26 06:59:01 | 2017-09-26 07:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pn | E | 2017-09-26 06:57:37 | -0.03 | y | 225 | 357 | |||
| IIEES | GRMI | Z | Pn | E | 2017-09-26 06:57:48 | -0.05 | y | 314 | 58 | |||
| IIEES | GRMI | E | Sg | E | 2017-09-26 06:58:30 | 0.07 | y | 314 | 58 | |||
| IIEES | SNGE | Z | Pn | E | 2017-09-26 06:57:51 | 0.1 | y | 335 | 137 | |||
| IIEES | SNGE | N | Sg | E | 2017-09-26 06:58:36 | -0.08 | y | 335 | 137 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-09-26 06:57:53 | -0.19 | y | 350 | 101 | |||
| IIEES | ILBA | Z | Pn | E | 2017-09-26 06:58:00 | -3.18 | n | 4 | 430 | 163 | ||
| IIEES | KHMZ | Z | Pn | E | 2017-09-26 06:58:26 | 0.29 | y | 612 | 129 | |||
