Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2017-10-17 18:52:37.2 |
| Date & Time (Local) | 1396/7/25 22:22:37.2 |

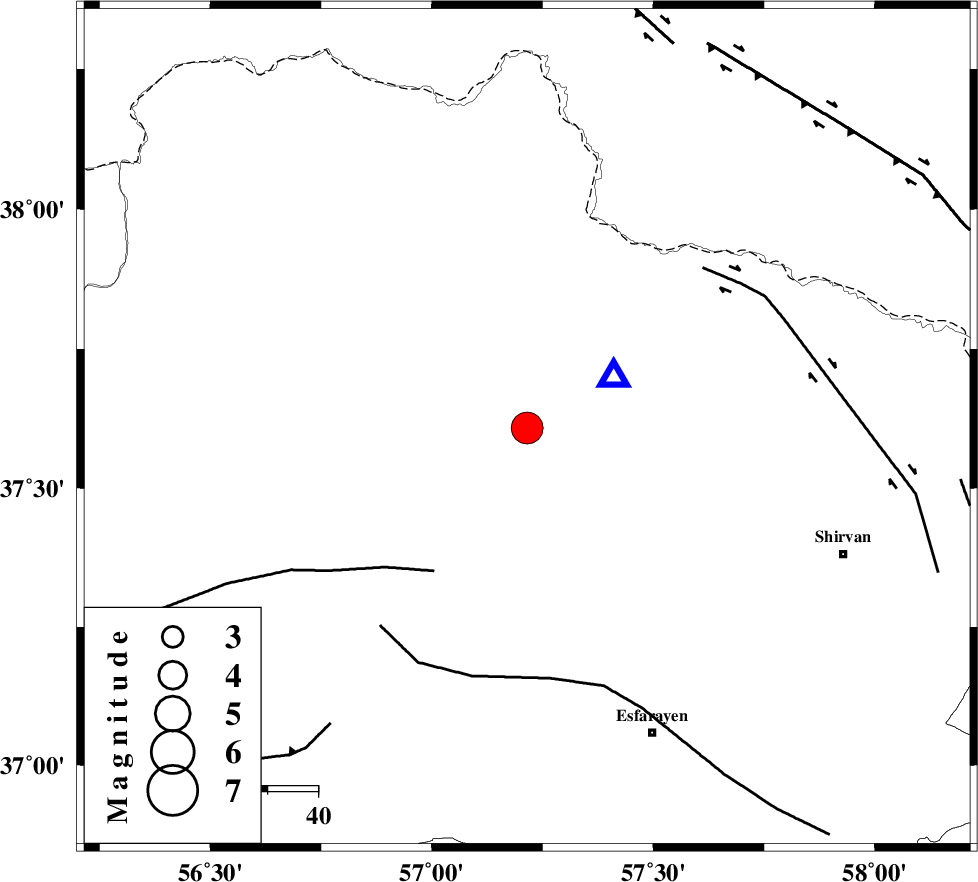

| Location | Lat:37.608 Lon: 57.215 |
| Region | Khorasan(north) Province, 18 km North-West of Bojnurd |
Nearest Cities |
|
| 18 km North West of Void, Khorasan(north) Province | |
| 18 km North West of Bojnurd, Khorasan(north) Province | |
| 19 km East of Pish qaleh, Khorasan(north) Province | |
| 25 km North East of Ashkhaneh, Khorasan(north) Province | |
| 26 km North West of Hesar-egarmkhanh, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 34 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 47 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 49 km | |
| Number of Phases | 22 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120528 | IIEES | BJRD | E | 220000 | 0.26 | 2017-10-17 18:52:45 | 2017-10-18 04:59:00 | n |
| 120529 | IIEES | BJRD | N | 174000 | 0.26 | 2017-10-17 18:52:45 | 2017-10-18 04:59:00 | n |
| 120530 | IIEES | MRVT | N | 10884.7 | 0.35 | 2017-10-17 18:53:11 | 2017-10-18 04:59:00 | n |
| 120531 | IIEES | MRVT | E | 11148 | 0.35 | 2017-10-17 18:53:15 | 2017-10-18 04:59:00 | n |
| 120532 | IIEES | TABS | N | 413.7 | 0.74 | 2017-10-17 18:54:59 | 2017-10-18 04:59:00 | n |
| 120533 | IIEES | DAMV | E | 182.7 | 0.57 | 2017-10-17 18:55:14 | 2017-10-18 04:59:00 | n |
| 120534 | IIEES | THKV | N | 144.4 | 0.65 | 2017-10-17 18:55:31 | 2017-10-18 04:59:00 | n |
| 120535 | IIEES | THKV | E | 128.4 | 0.65 | 2017-10-17 18:55:35 | 2017-10-18 04:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-10-17 18:52:41 | -0.22 | y | 19.8 | 59 | |||
| IIEES | MRVT | Z | Pg | E | 2017-10-17 18:52:53 | -0.5 | y | 99.5 | 274 | |||
| IIEES | MRVT | N | Sg | E | 2017-10-17 18:53:06 | 0.1 | y | 99.5 | 274 | |||
| IIEES | SHRO | Z | Pn | E | 2017-10-17 18:53:10 | 0.01 | y | 207 | 212 | |||
| IIEES | SHRO | E | Sg | E | 2017-10-17 18:53:35 | -0.32 | y | 207 | 212 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-17 18:53:39 | 0.49 | y | 439 | 181 | |||
| IIEES | DAMV | Z | Pn | E | 2017-10-17 18:53:50 | 0.99 | y | 518 | 246 | |||
| IIEES | SHRT | Z | Pn | E | 2017-10-17 18:53:49 | -0.08 | y | 520 | 147 | |||
| IIEES | CHTH | Z | Pn | E | 2017-10-17 18:53:57 | 0.52 | y | 575 | 253 | |||
| IIEES | THKV | Z | Pn | E | 2017-10-17 18:54:00 | 1.21 | y | 596 | 254 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-17 18:54:02 | -0.31 | y | 626 | 203 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-17 18:54:04 | -0.02 | y | 640 | 239 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-17 18:54:05 | 0.12 | y | 650 | 164 | |||
| IIEES | GIDE | Z | Pn | E | 2017-10-17 18:54:03 | -2.17 | n | 4 | 652 | 266 | ||
| IIEES | NASN | Z | Pn | E | 2017-10-17 18:54:07 | -0.73 | y | 667 | 218 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-10-17 18:54:18 | -1.23 | y | 765 | 265 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-10-17 18:54:21 | -0.41 | y | 784 | 239 | |||
| IIEES | GRMI | Z | Pn | E | 2017-10-17 18:54:24 | -3.25 | n | 4 | 827 | 282 | ||
| IIEES | KRBR | Z | Pn | E | 2017-10-17 18:54:30 | 0.3 | y | 847 | 183 | |||
| IIEES | SNGE | Z | Pn | E | 2017-10-17 18:54:40 | -0.01 | y | 928 | 255 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-17 18:54:42 | 0.05 | y | 946 | 159 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-17 18:55:02 | -0.11 | y | 1106 | 202 | |||
