Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2017-10-20 02:19:40.9 |
| Date & Time (Local) | 1396/7/28 05:49:40.9 |

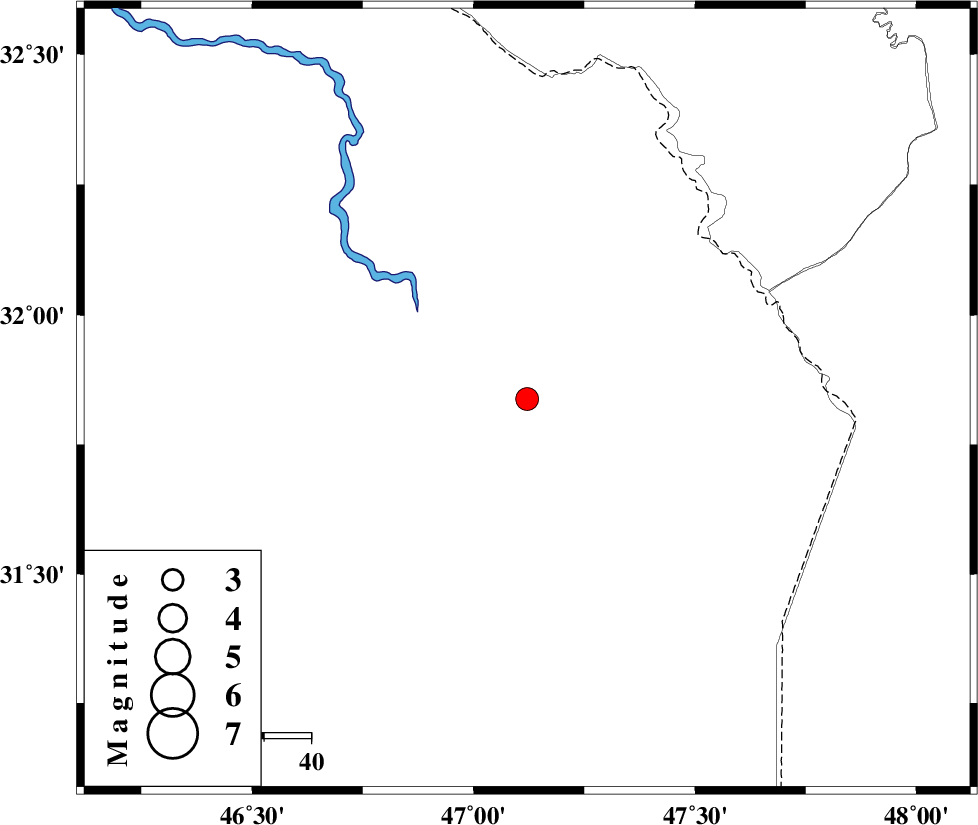

| Location | Lat:31.838 Lon: 47.121 |
| Region | Iraq, 96 km South-West of Dehloran |
Nearest Cities |
|
| 82 km South West of Musian, Ilam Province | |
| 83 km North West of Bostan, Khoozestan Province | |
| 96 km South West of Dehloran, Ilam Province | |
| 100 km North West of Hoveizeh, Khoozestan Province | |
| 105 km North West of Susangerd, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 97 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 102 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 127 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120556 | IIEES | KHMZ | E | 34.2 | 0.56 | 2017-10-20 02:21:26 | 2017-10-21 07:13:00 | n |
| 120557 | IIEES | SNGE | E | 61.3 | 0.42 | 2017-10-20 02:21:32 | 2017-10-21 07:13:00 | n |
| 120558 | IIEES | SNGE | N | 43.7 | 0.51 | 2017-10-20 02:21:36 | 2017-10-21 07:13:00 | n |
| 120559 | IIEES | GHVR | E | 19.2 | 0.59 | 2017-10-20 02:21:44 | 2017-10-21 07:13:00 | n |
| 120560 | IIEES | GHVR | N | 18.6 | 0.59 | 2017-10-20 02:21:48 | 2017-10-21 07:13:00 | n |
| 120561 | IIEES | THKV | E | 12 | 0.62 | 2017-10-20 02:22:02 | 2017-10-21 07:13:00 | n |
| 120562 | IIEES | THKV | N | 8.9 | 0.47 | 2017-10-20 02:22:02 | 2017-10-21 07:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-10-20 02:20:31 | 0.26 | y | 340 | 51 | |||
| IIEES | SNGE | Z | Pn | E | 2017-10-20 02:20:33 | 0.01 | y | 362 | 3 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-20 02:20:48 | 0.12 | y | 484 | 52 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-20 02:20:56 | 0.01 | y | 546 | 77 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-10-20 02:20:57 | 0.19 | y | 555 | 15 | |||
| IIEES | THKV | Z | Pn | E | 2017-10-20 02:20:59 | -0.17 | y | 570 | 37 | |||
| IIEES | CHTH | Z | Pn | E | 2017-10-20 02:21:00 | -0.51 | y | 584 | 38 | |||
| IIEES | DAMV | Z | Pn | E | 2017-10-20 02:21:05 | -0.05 | y | 615 | 46 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-20 02:21:14 | -0.05 | y | 689 | 123 | |||
