Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-10-23 02:05:37.9 |
| Date & Time (Local) | 1396/8/1 05:35:37.9 |

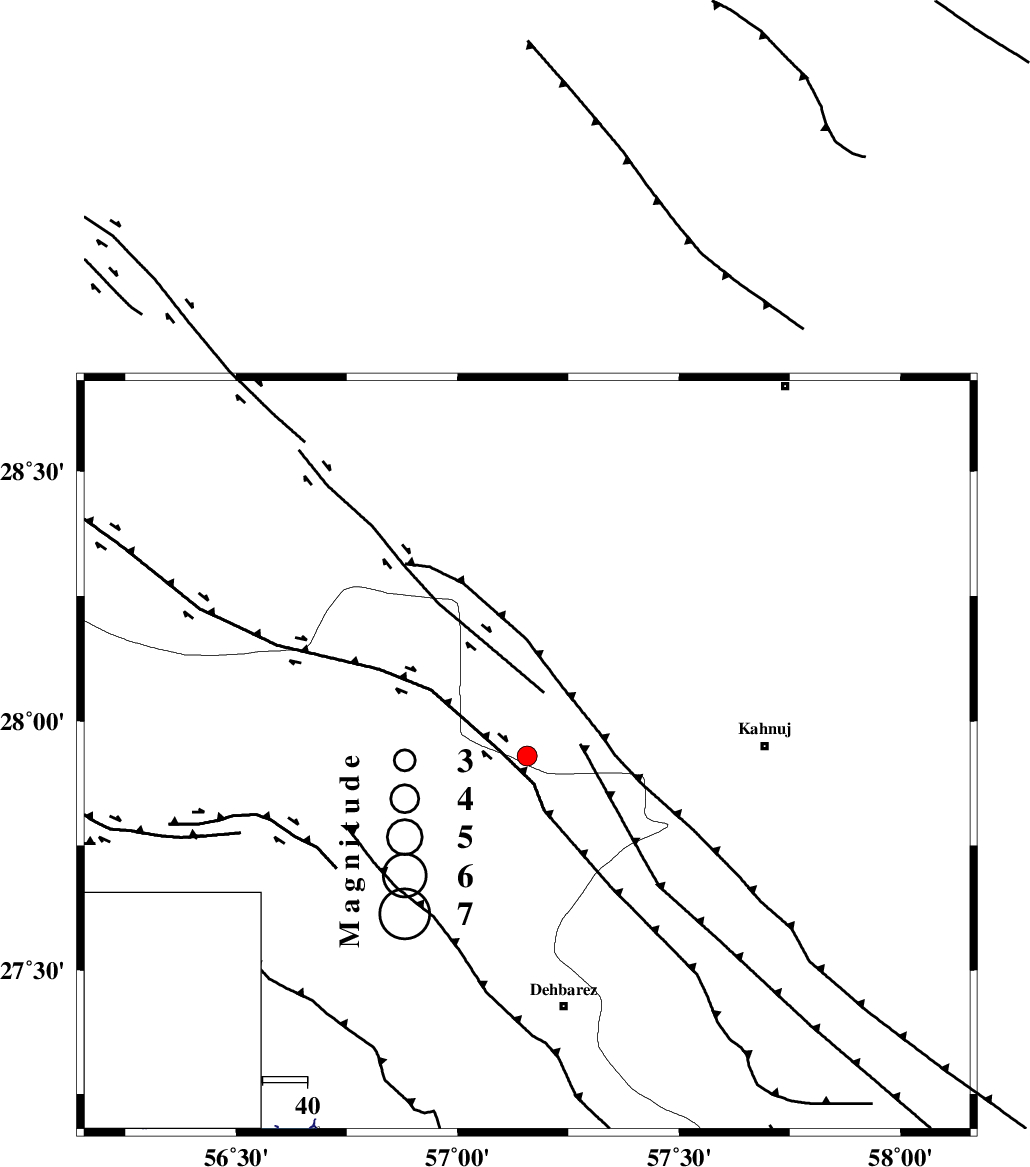

| Location | Lat:27.93 Lon: 57.157 |
| Region | Kerman Province, 53 km -West of Kahnuj |
Nearest Cities |
|
| 17 km North West of Fariab, Hormozgan Province | |
| 19 km South West of Faryab, Kerman Province | |
| 22 km North of Ziaratali, Hormozgan Province | |
| 30 km South West of Mehrueye-e paeen, Kerman Province | |
| 33 km South West of Hurpasefid, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 29 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 36 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 52 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120721 | IIEES | BNDS | N | 172.2 | 0.39 | 2017-10-23 02:06:13 | 2017-10-23 06:31:00 | n |
| 120722 | IIEES | BNDS | E | 242.4 | 0.18 | 2017-10-23 02:06:13 | 2017-10-23 06:31:00 | n |
| 120723 | IIEES | KRBR | N | 71.2 | 0.3 | 2017-10-23 02:06:47 | 2017-10-23 06:31:00 | n |
| 120724 | IIEES | KRBR | E | 68 | 0.26 | 2017-10-23 02:06:47 | 2017-10-23 06:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-10-23 02:05:56 | -0.14 | y | 114 | 239 | |||
| IIEES | BNDS | N | Sg | E | 2017-10-23 02:06:11 | 0.04 | y | 114 | 239 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-23 02:06:15 | 0.53 | y | 231 | 350 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-23 02:06:43 | -0.15 | y | 231 | 350 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-23 02:06:35 | -0.04 | y | 399 | 61 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-23 02:06:45 | -0.23 | y | 486 | 23 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-23 02:06:54 | -0.15 | y | 553 | 334 | |||
