Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2017-10-23 01:31:22.0 |
| Date & Time (Local) | 1396/8/1 05:01:22.0 |

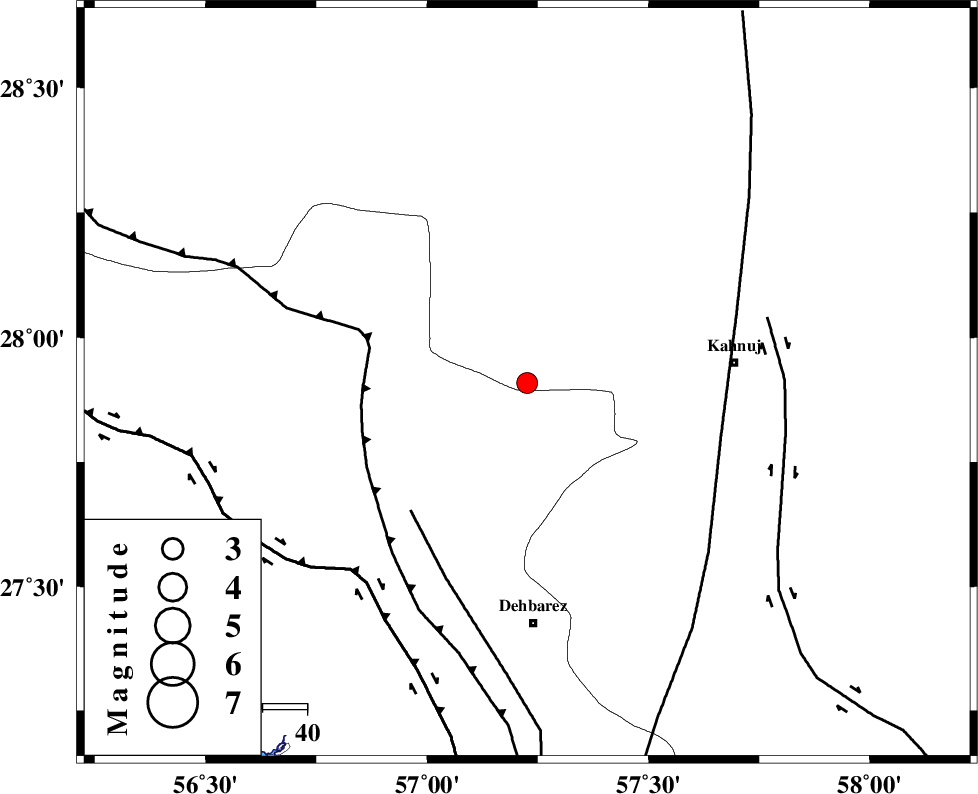

| Location | Lat:27.909 Lon: 57.226 |
| Region | Kerman Province, 54 km North of Dehbarez |
Nearest Cities |
|
| 11 km North of Fariab, Hormozgan Province | |
| 18 km South of Faryab, Kerman Province | |
| 19 km North of Ziaratali, Hormozgan Province | |
| 27 km South West of Mehrueye-e paeen, Kerman Province | |
| 33 km South of Hurpasefid, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 36 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 38 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 45 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120733 | IIEES | BNDS | E | 399.6 | 0.45 | 2017-10-23 01:31:58 | 2017-10-23 07:15:00 | n |
| 120734 | IIEES | KRBR | N | 108.3 | 0.3 | 2017-10-23 01:32:31 | 2017-10-23 07:15:00 | n |
| 120735 | IIEES | KRBR | E | 65.4 | 0.22 | 2017-10-23 01:32:32 | 2017-10-23 07:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-10-23 01:31:41 | -0.22 | y | 118 | 242 | |||
| IIEES | BNDS | N | Sg | E | 2017-10-23 01:31:56 | 0.15 | y | 118 | 242 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-23 01:31:59 | 0.22 | y | 234 | 349 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-23 01:32:28 | -0.04 | y | 234 | 349 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-23 01:32:18 | 0.03 | y | 395 | 61 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-23 01:32:29 | -0.19 | y | 486 | 22 | |||
