Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2017-10-23 20:00:45.8 |
| Date & Time (Local) | 1396/8/1 23:30:45.8 |

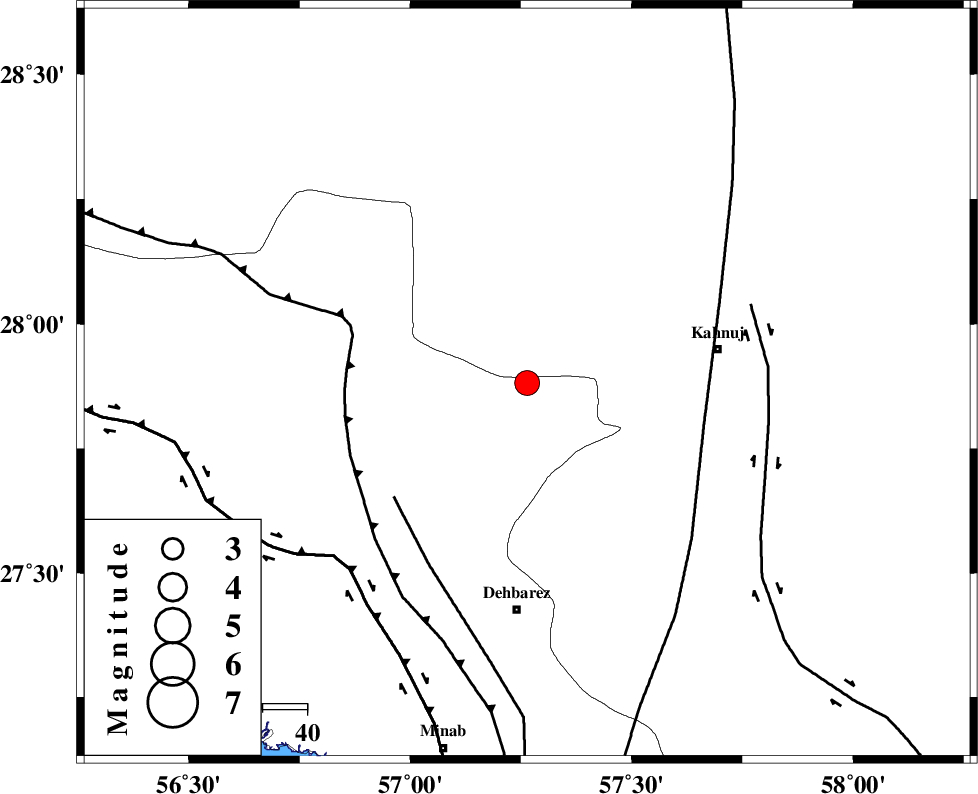

| Location | Lat:27.882 Lon: 57.264 |
| Region | Hormozgan Province, 51 km North of Dehbarez |
Nearest Cities |
|
| 7 km North of Fariab, Hormozgan Province | |
| 16 km North of Ziaratali, Hormozgan Province | |
| 20 km South of Faryab, Kerman Province | |
| 27 km South West of Mehrueye-e paeen, Kerman Province | |
| 35 km South of Hurpasefid, Kerman Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 39 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 40 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 40 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120766 | IIEES | KRBR | N | 436 | 0.49 | 2017-10-23 20:01:55 | 2017-10-24 07:23:00 | n |
| 120767 | IIEES | KRBR | E | 325.8 | 0.39 | 2017-10-23 20:01:56 | 2017-10-24 07:23:00 | n |
| 120768 | IIEES | GHIR | N | 27.9 | 0.41 | 2017-10-23 20:02:33 | 2017-10-24 07:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-10-23 20:01:06 | 0.05 | y | 120 | 244 | |||
| IIEES | BNDS | N | Sg | E | 2017-10-23 20:01:20 | 0.08 | y | 120 | 244 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-23 20:01:23 | 0.5 | y | 238 | 348 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-23 20:01:53 | -0.14 | y | 238 | 348 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-23 20:01:41 | -0.35 | y | 393 | 60 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-23 20:01:45 | -0.41 | y | 423 | 277 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-23 20:01:54 | 0.44 | y | 487 | 21 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-23 20:02:02 | -0.33 | y | 562 | 333 | |||
