Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2017-10-23 20:50:11.1 |
| Date & Time (Local) | 1396/8/2 00:20:11.1 |

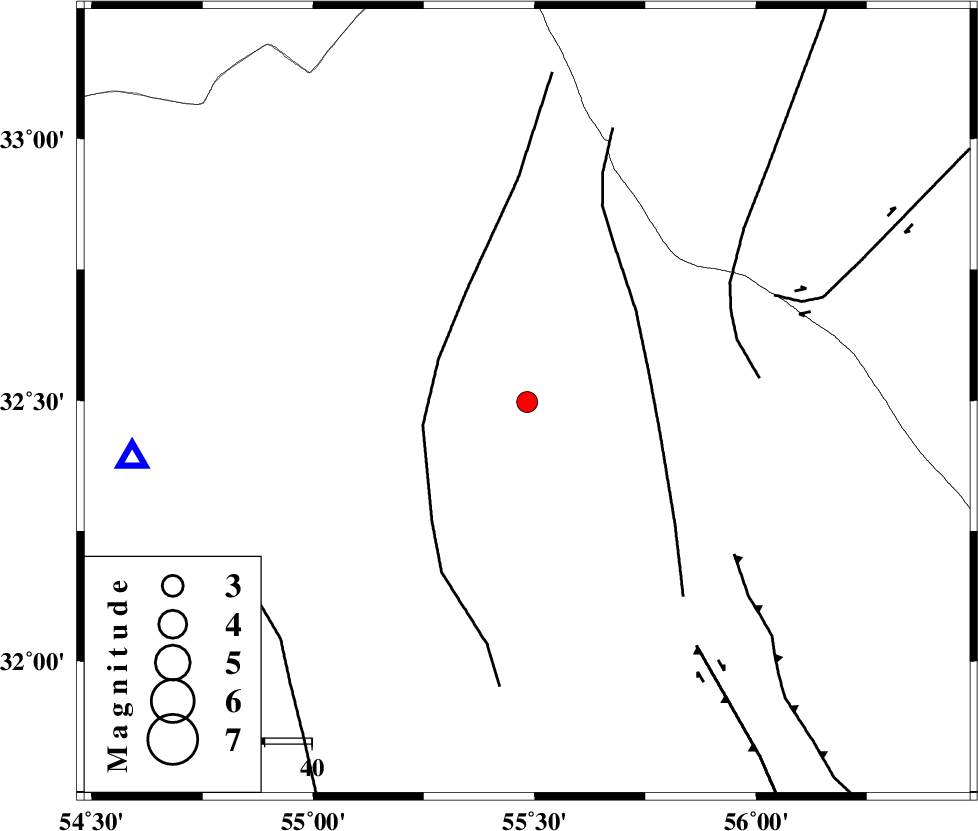

| Location | Lat:32.497 Lon: 55.483 |
| Region | Yazd Province, 100 km North of Bafq |
Nearest Cities |
|
| 58 km South of Robat-e posht-e badam, Yazd Province | |
| 79 km North East of Kharaneq, Yazd Province | |
| 82 km South East of Zarrin, Yazd Province | |
| 85 km South East of Hajiabad, Yazd Province | |
| 86 km North West of Behabad, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 21 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 27 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 46 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 3 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120773 | IIEES | YZKH | N | 342.9 | 0.27 | 2017-10-23 20:50:36 | 2017-10-24 07:23:00 | n |
| 120774 | IIEES | YZKH | E | 575.9 | 0.2 | 2017-10-23 20:50:36 | 2017-10-24 07:23:00 | n |
| 120775 | IIEES | TABS | N | 83.1 | 0.51 | 2017-10-23 20:51:22 | 2017-10-24 07:23:00 | n |
| 120776 | IIEES | NASN | E | 60.6 | 0.43 | 2017-10-23 20:51:24 | 2017-10-24 07:23:00 | n |
| 120777 | IIEES | NASN | N | 36.8 | 0.6 | 2017-10-23 20:51:24 | 2017-10-24 07:23:00 | n |
| 120778 | IIEES | KRBR | N | 47.9 | 0.24 | 2017-10-23 20:51:44 | 2017-10-24 07:23:00 | n |
| 120779 | IIEES | KRBR | E | 42.1 | 0.42 | 2017-10-23 20:51:47 | 2017-10-24 07:23:00 | n |
| 120780 | IIEES | GHVR | E | 13.6 | 0.5 | 2017-10-23 20:52:34 | 2017-10-24 07:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-10-23 20:50:25 | -0.02 | y | 84.7 | 262 | |||
| IIEES | TABS | Z | Pn | E | 2017-10-23 20:50:43 | -0.23 | y | 199 | 50 | |||
| IIEES | NASN | Z | Pn | E | 2017-10-23 20:50:50 | 0.27 | y | 253 | 278 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-23 20:50:57 | 0.31 | y | 304 | 156 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-23 20:51:36 | -0.14 | y | 304 | 156 | |||
| IIEES | BSRN | Z | Pn | E | 2017-10-23 20:51:02 | 0.06 | y | 348 | 99 | |||
| IIEES | SHRO | Z | Pn | E | 2017-10-23 20:51:07 | 0.23 | y | 393 | 7 | |||
| IIEES | GHVR | Z | Pn | E | 2017-10-23 20:51:21 | 6.94 | n | 4 | 451 | 300 | ||
| IIEES | SHRT | Z | Pn | E | 2017-10-23 20:51:16 | -0.04 | y | 467 | 73 | |||
| IIEES | ASAO | Z | Pn | E | 2017-10-23 20:51:27 | -0.62 | y | 556 | 296 | |||
