Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2017-10-31 15:19:36.0 |
| Date & Time (Local) | 1396/8/9 18:49:36.0 |

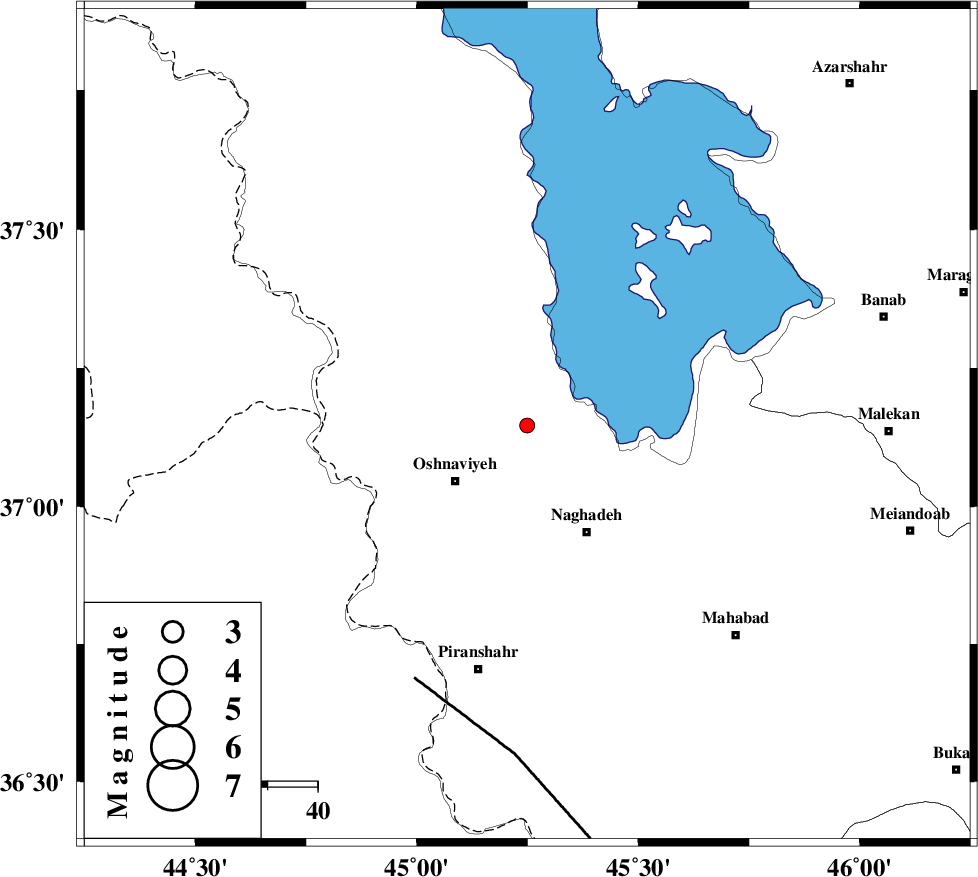

| Location | Lat:37.146 Lon: 45.249 |
| Region | Azarbaijan Gharbi Province, 18 km -East of Oshnaviyeh |
Nearest Cities |
|
| 13 km East of Aghbelagh, Azarbaijan Gharbi Province | |
| 18 km North of Mirabad, Azarbaijan Gharbi Province | |
| 18 km North East of Oshnaviyeh, Azarbaijan Gharbi Province | |
| 20 km North East of Nalus, Azarbaijan Gharbi Province | |
| 24 km North West of Naqadeh, Azarbaijan Gharbi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 56 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 107 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 118 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >1 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120949 | IIEES | SNGE | E | 11.1 | 0.51 | 2017-10-31 15:21:08 | 2017-11-01 07:11:00 | n |
| 120950 | IIEES | SNGE | N | 6.1 | 0.51 | 2017-10-31 15:21:08 | 2017-11-01 07:11:00 | n |
| 120951 | IIEES | GRMI | E | 6.1 | 0.37 | 2017-10-31 15:21:04 | 2017-11-01 07:11:00 | n |
| 120952 | IIEES | GRMI | N | 4.9 | 0.5 | 2017-10-31 15:21:17 | 2017-11-01 07:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pn | E | 2017-10-31 15:20:14 | 0.05 | y | 250 | 349 | |||
| IIEES | SNGE | Z | Pn | E | 2017-10-31 15:20:20 | -0.08 | y | 296 | 140 | |||
| IIEES | SNGE | N | Sg | E | 2017-10-31 15:20:59 | 0.06 | y | 296 | 140 | |||
| IIEES | GRMI | Z | Pn | E | 2017-10-31 15:20:20 | -0.03 | y | 297 | 51 | |||
| IIEES | GRMI | E | Sg | E | 2017-10-31 15:20:59 | 0 | y | 297 | 51 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-10-31 15:20:22 | 0 | y | 311 | 99 | |||
