Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2017-11-05 11:30:55.0 |
| Date & Time (Local) | 1396/8/14 15:00:55.0 |

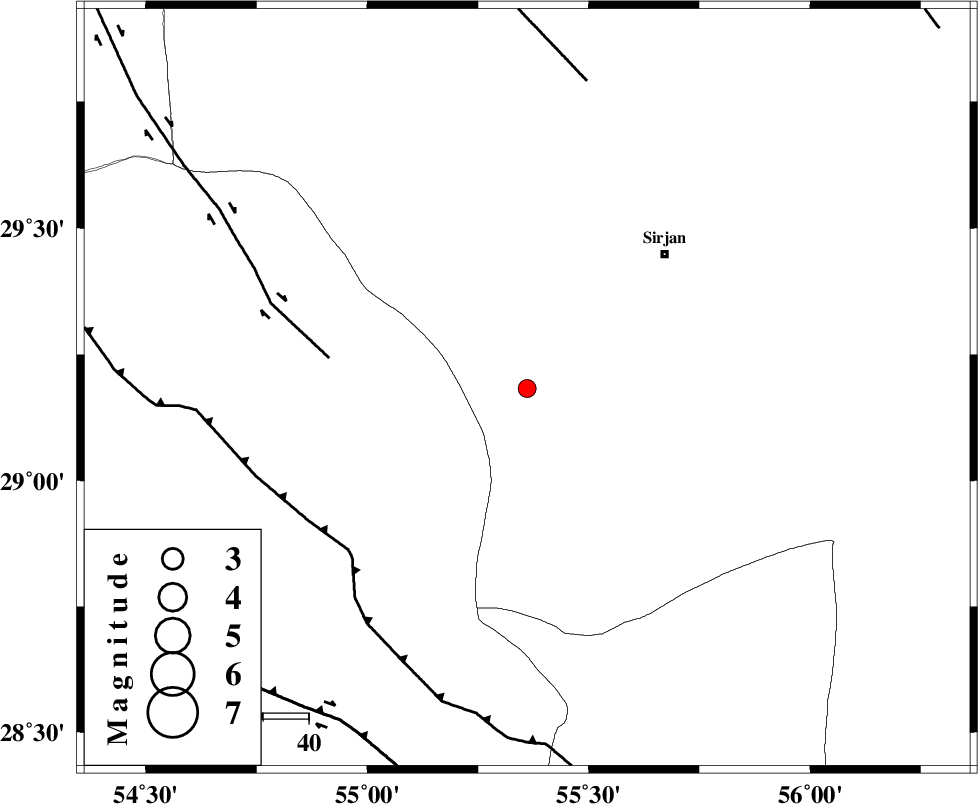

| Location | Lat:29.183 Lon: 55.361 |
| Region | Kerman Province, 42 km South-West of Sirjan |
Nearest Cities |
|
| 39 km South West of Sharifabad, Kerman Province | |
| 41 km South West of Najafabad, Kerman Province | |
| 42 km South West of Sirjan, Kerman Province | |
| 46 km South West of Mahmud Abad, Kerman Province | |
| 47 km West of Malekabad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 44 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 53 km | |
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 69 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 6 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121049 | IIEES | KRBR | N | 63 | 0.54 | 2017-11-05 11:31:46 | 2017-11-06 05:11:00 | n |
| 121050 | IIEES | KRBR | E | 90.7 | 0.54 | 2017-11-05 11:31:47 | 2017-11-06 05:11:00 | n |
| 121051 | IIEES | BNDS | N | 25.7 | 0.33 | 2017-11-05 11:32:03 | 2017-11-06 05:11:00 | n |
| 121052 | IIEES | BNDS | E | 33 | 0.59 | 2017-11-05 11:32:04 | 2017-11-06 05:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-11-05 11:31:21 | -0.23 | y | 162 | 57 | |||
| IIEES | BNDS | Z | Pn | E | 2017-11-05 11:31:29 | 0.2 | y | 213 | 158 | |||
| IIEES | BNDS | E | Sg | E | 2017-11-05 11:31:55 | 0 | y | 213 | 158 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-05 11:31:33 | -0.24 | y | 252 | 247 | |||
| IIEES | YZKH | Z | P | E | 2017-11-05 11:31:48 | 0.31 | y | 363 | 348 | |||
