Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2017-11-06 17:14:42.4 |
| Date & Time (Local) | 1396/8/15 20:44:42.4 |

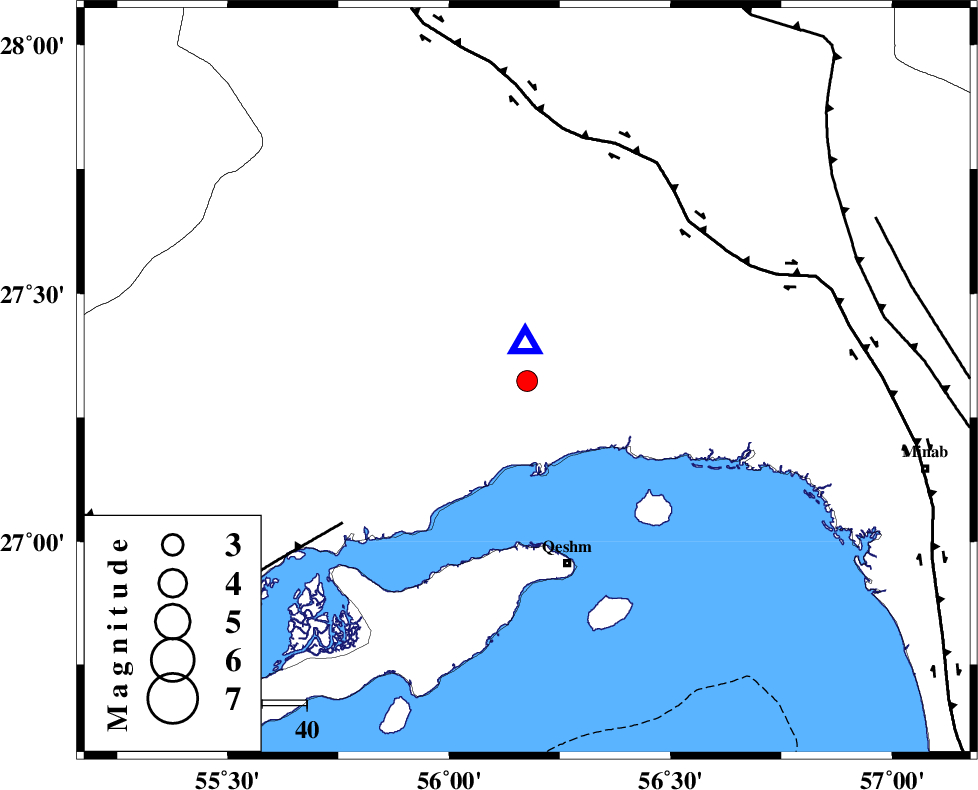

| Location | Lat:27.324 Lon: 56.176 |
| Region | Hormozgan Province, 19 km North-West of Bandar-e abbas |
Nearest Cities |
|
| 19 km North West of Bandar-e abbas, Hormozgan Province | |
| 42 km North of Qeshm, Hormozgan Province | |
| 44 km South East of Fin, Hormozgan Province | |
| 62 km North East of Suza, Hormozgan Province | |
| 71 km North East of Bandar-e khamir, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 51 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 52 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 78 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 9.5 km |
| Error in Depth | 2.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121081 | IIEES | KRBR | N | 46.9 | 0.42 | 2017-11-06 17:16:09 | 2017-11-07 06:21:00 | n |
| 121082 | IIEES | KRBR | E | 45.7 | 0.25 | 2017-11-06 17:16:10 | 2017-11-07 06:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-11-06 17:14:45 | 0.06 | y | 8.31 | 357 | |||
| IIEES | BNDS | N | Sg | E | 2017-11-06 17:14:47 | -0.37 | y | 8.31 | 357 | |||
| IIEES | KRBR | Z | Pn | E | 2017-11-06 17:15:27 | 0.21 | y | 300 | 11 | |||
| IIEES | KRBR | E | Sg | E | 2017-11-06 17:16:07 | 0.15 | y | 300 | 11 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-06 17:15:31 | 0.17 | y | 332 | 289 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-06 17:16:02 | -0.3 | y | 582 | 345 | |||
