Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2017-11-09 16:21:55.6 |
| Date & Time (Local) | 1396/8/18 19:51:55.6 |

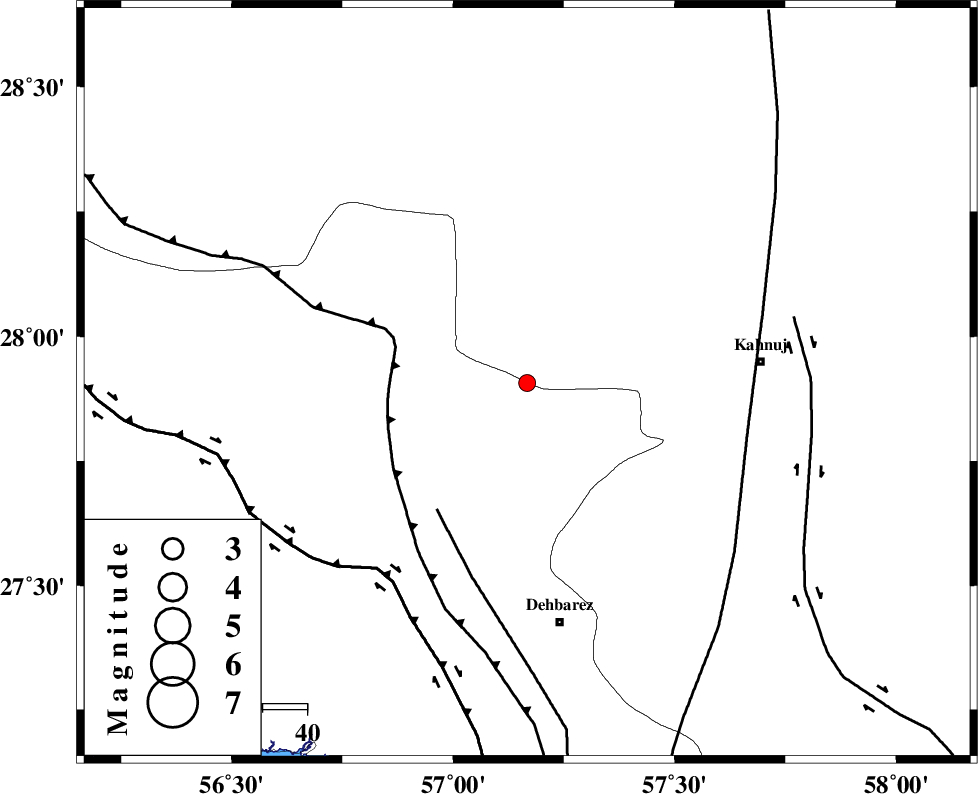

| Location | Lat:27.907 Lon: 57.167 |
| Region | Hormozgan Province, 54 km North of Dehbarez |
Nearest Cities |
|
| 15 km North West of Fariab, Hormozgan Province | |
| 20 km North of Ziaratali, Hormozgan Province | |
| 20 km South West of Faryab, Kerman Province | |
| 31 km South West of Mehrueye-e paeen, Kerman Province | |
| 35 km South West of Hurpasefid, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 30 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 35 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 50 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121261 | IIEES | BNDS | N | 75.3 | 0.39 | 2017-11-09 16:22:31 | 2017-11-11 06:45:00 | n |
| 121262 | IIEES | KRBR | N | 23.1 | 0.21 | 2017-11-09 16:23:03 | 2017-11-11 06:45:00 | n |
| 121263 | IIEES | KRBR | E | 27.2 | 0.25 | 2017-11-09 16:23:03 | 2017-11-11 06:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-11-09 16:22:14 | -0.06 | y | 113 | 240 | |||
| IIEES | BNDS | N | Sg | E | 2017-11-09 16:22:28 | 0.05 | y | 113 | 240 | |||
| IIEES | KRBR | Z | Pn | E | 2017-11-09 16:22:32 | -0.06 | y | 233 | 350 | |||
| IIEES | KRBR | N | Sg | E | 2017-11-09 16:23:01 | 0.01 | y | 233 | 350 | |||
| IIEES | BSRN | Z | Pn | E | 2017-11-09 16:23:03 | 0.09 | y | 488 | 22 | |||
