Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-11-11 02:28:46.8 |
| Date & Time (Local) | 1396/8/20 05:58:46.8 |

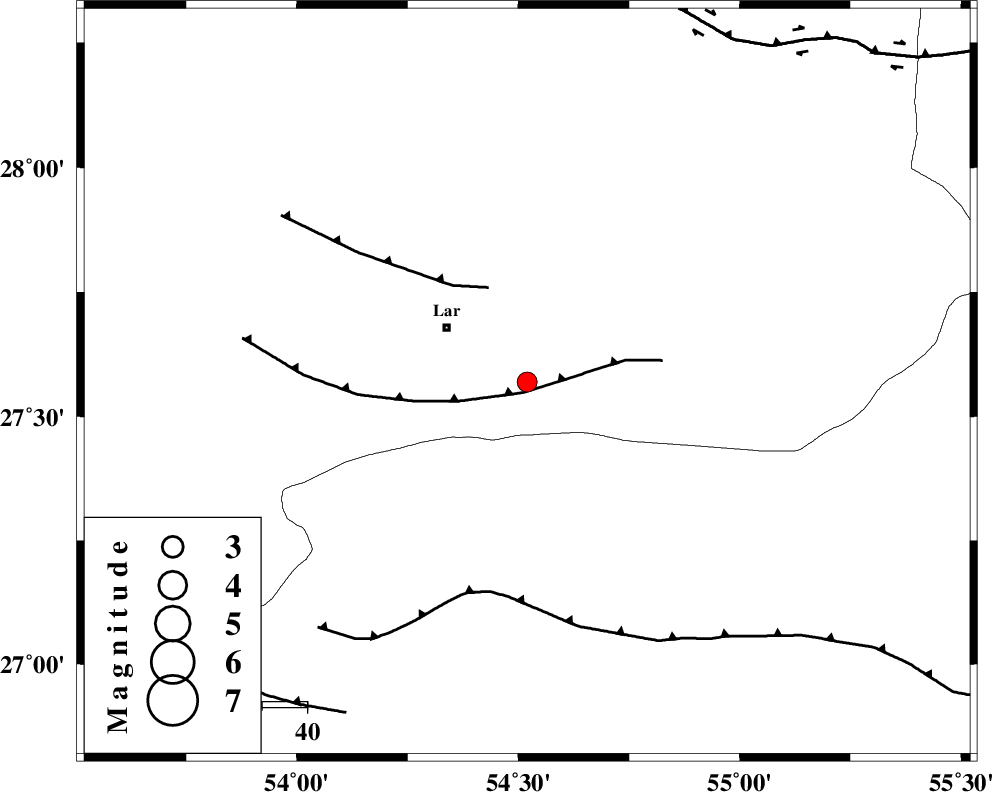

| Location | Lat:27.569 Lon: 54.52 |
| Region | Fars Province, 22 km South-East of Lar |
Nearest Cities |
|
| 20 km South East of Latifi, Fars Province | |
| 22 km South East of Lar, Fars Province | |
| 33 km South of Dehkuyeh, Fars Province | |
| 36 km East of Grash, Fars Province | |
| 44 km North East of Bastak, Hormozgan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 2 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 23 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 48 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121308 | IIEES | BNDS | N | 122 | 0.39 | 2017-11-11 02:29:42 | 2017-11-12 07:25:00 | n |
| 121309 | IIEES | BNDS | E | 100.7 | 0.39 | 2017-11-11 02:29:43 | 2017-11-12 07:25:00 | n |
| 121310 | IIEES | GHIR | N | 124.7 | 0.66 | 2017-11-11 02:29:49 | 2017-11-12 07:25:00 | n |
| 121311 | IIEES | GHIR | E | 100.1 | 0.59 | 2017-11-11 02:29:53 | 2017-11-12 07:25:00 | n |
| 121312 | IIEES | KRBR | E | 22.8 | 0.42 | 2017-11-11 02:30:44 | 2017-11-12 07:25:00 | n |
| 121313 | IIEES | KRBR | N | 22.5 | 0.58 | 2017-11-11 02:30:44 | 2017-11-12 07:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-11-11 02:29:14 | 0.16 | y | 164 | 96 | |||
| IIEES | GHIR | Z | Pg | E | 2017-11-11 02:29:14 | -0.53 | y | 171 | 298 | |||
| IIEES | GHIR | N | Sg | E | 2017-11-11 02:29:36 | 0.41 | y | 171 | 298 | |||
| IIEES | KRBR | Z | Pn | E | 2017-11-11 02:29:37 | 0.02 | y | 346 | 39 | |||
| IIEES | KRBR | N | Sg | E | 2017-11-11 02:30:23 | -0.05 | y | 346 | 39 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-11 02:30:09 | -0.09 | y | 603 | 345 | |||
| IIEES | BSRN | Z | Pn | E | 2017-11-11 02:30:16 | 0.08 | y | 660 | 41 | |||
