Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2017-11-17 12:24:05.1 |
| Date & Time (Local) | 1396/8/26 15:54:05.1 |

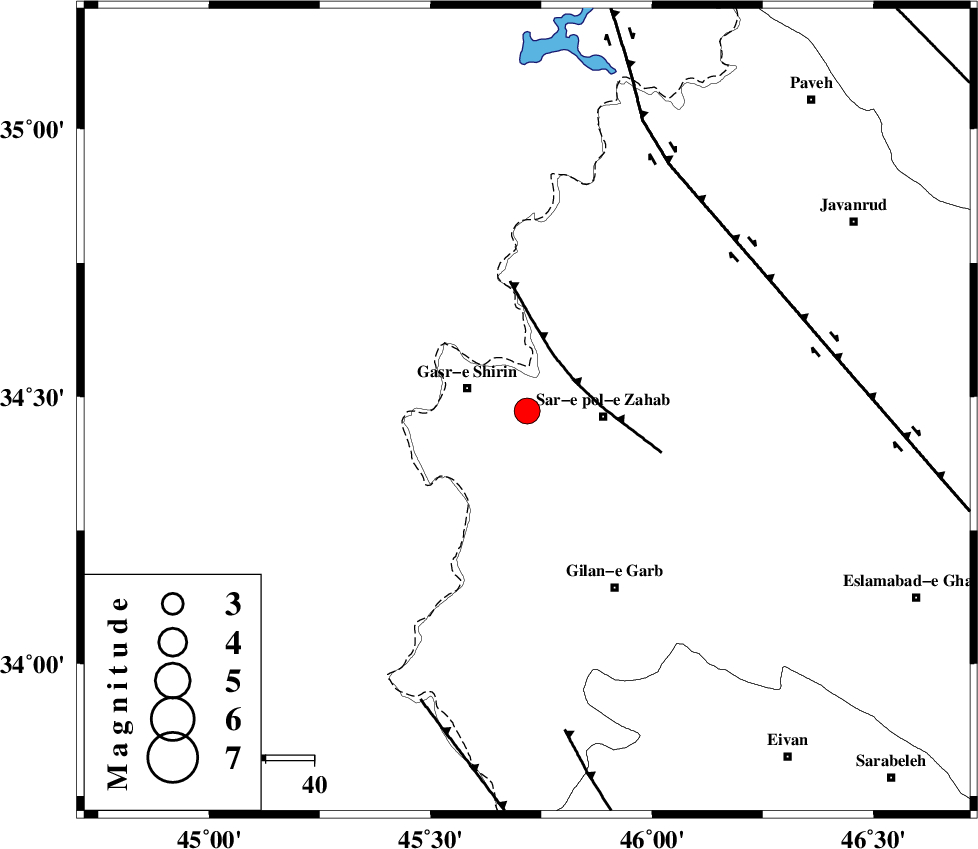

| Location | Lat:34.473 Lon: 45.718 |
| Region | Kermanshah Province, 13 km -East of Qasr-E-Shirin |
Nearest Cities |
|
| 6 km of Qareh belagh, Kermanshah Province | |
| 9 km of Aqabarar, Kermanshah Province | |
| 11 km of Mirmiru, Kermanshah Province | |
| 12 km North East of Seyyed sohrab, Kermanshah Province | |
| 13 km East of Qasr-E-Shirin, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 12 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 56 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 64 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 9.7 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 121961 | IIEES | SNGE | N | 1055.9 | 0.6 | 2017-11-17 12:24:56 | 2017-11-18 09:58:00 | n |
| 121962 | IIEES | SNGE | E | 1296.1 | 0.48 | 2017-11-17 12:24:57 | 2017-11-18 09:58:00 | n |
| 121963 | IIEES | KHMZ | N | 78.9 | 0.59 | 2017-11-17 12:26:06 | 2017-11-18 09:58:00 | n |
| 121964 | IIEES | KHMZ | E | 83.7 | 0.67 | 2017-11-17 12:26:09 | 2017-11-18 09:58:00 | n |
| 121965 | IIEES | GIDE | E | 42.8 | 0.81 | 2017-11-17 12:26:30 | 2017-11-18 09:58:00 | n |
| 121966 | IIEES | GIDE | N | 64.5 | 0.63 | 2017-11-17 12:26:33 | 2017-11-18 09:58:00 | n |
| 121967 | IIEES | GHVR | N | 55.8 | 0.71 | 2017-11-17 12:26:47 | 2017-11-18 09:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-11-17 12:24:22 | 0.14 | y | 104 | 154 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-17 12:24:35 | 0.11 | y | 104 | 154 | |||
| IIEES | SNGE | Z | Pg | E | 2017-11-17 12:24:31 | -0.57 | y | 164 | 65 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-17 12:24:58 | 0.25 | y | 363 | 47 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-17 12:25:02 | 0.77 | y | 396 | 88 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-17 12:25:02 | 0.1 | y | 400 | 101 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-17 12:25:11 | 0.23 | y | 467 | 53 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-17 12:25:15 | -0.26 | y | 508 | 88 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-17 12:25:17 | -0.05 | y | 518 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-17 12:25:17 | 0.08 | y | 519 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2017-11-17 12:25:20 | -0.19 | y | 550 | 351 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-17 12:25:25 | 0.18 | y | 585 | 76 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-17 12:25:37 | -0.15 | y | 683 | 104 | |||
| IIEES | AHRM | Z | Pn | E | 2017-11-17 12:25:52 | -1.52 | y | 816 | 138 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-17 12:26:10 | -3.36 | n | 4 | 973 | 133 | ||
