Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2017-11-20 06:37:24.0 |
| Date & Time (Local) | 1396/8/29 10:07:24.0 |

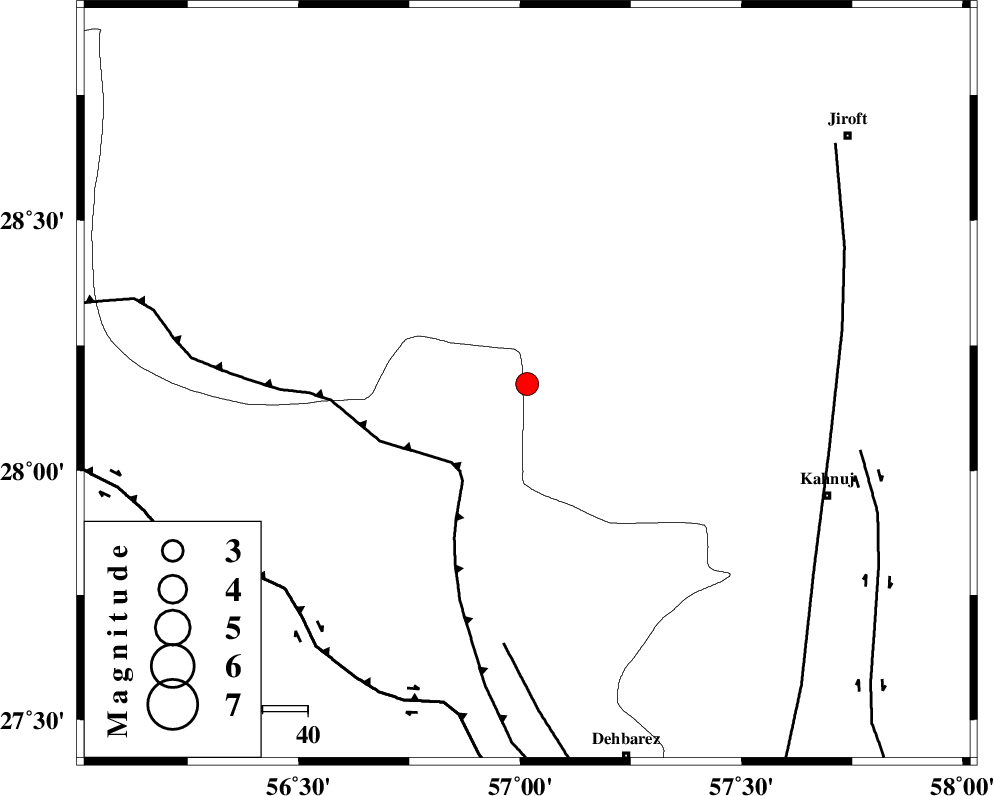

| Location | Lat:28.173 Lon: 57.016 |
| Region | Kerman Province, 71 km North-West of Kahnuj |
Nearest Cities |
|
| 23 km South East of Sarkhan, Kerman Province | |
| 28 km North West of Faryab, Kerman Province | |
| 29 km West of Hurpasefid, Kerman Province | |
| 40 km North West of Mehrueye-e paeen, Kerman Province | |
| 47 km North West of Fariab, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 24 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 58 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 68 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 7 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122068 | IIEES | BNDS | N | 638.5 | 0.6 | 2017-11-20 06:38:01 | 2017-11-20 07:58:00 | n |
| 122069 | IIEES | BNDS | E | 707.8 | 0.27 | 2017-11-20 06:38:01 | 2017-11-20 07:58:00 | n |
| 122070 | IIEES | KRBR | N | 285.1 | 0.27 | 2017-11-20 06:38:27 | 2017-11-20 07:58:00 | n |
| 122071 | IIEES | KRBR | E | 286.5 | 0.18 | 2017-11-20 06:38:29 | 2017-11-20 07:58:00 | n |
| 122072 | IIEES | GHIR | E | 25.3 | 0.5 | 2017-11-20 06:39:30 | 2017-11-20 07:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-11-20 06:37:44 | 0.06 | y | 120 | 224 | |||
| IIEES | KRBR | Z | Pn | E | 2017-11-20 06:37:56 | -0.72 | y | 202 | 353 | |||
| IIEES | KRBR | N | Sg | E | 2017-11-20 06:38:22 | 0.72 | y | 202 | 353 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-20 06:38:21 | 0.39 | y | 396 | 273 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-11-20 06:38:09 | -11.9 | n | 4 | 400 | 66 | ||
| IIEES | CHBR | Z | Pn | E | 2017-11-20 06:38:27 | 0.44 | y | 447 | 129 | |||
| IIEES | BSRN | Z | Pn | E | 2017-11-20 06:38:31 | 2.07 | n | 4 | 467 | 25 | ||
| IIEES | YZKH | Z | Pn | E | 2017-11-20 06:38:36 | -0.23 | y | 522 | 334 | |||
| IIEES | TABS | Z | Pn | E | 2017-11-20 06:38:46 | -0.5 | y | 607 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-20 06:38:52 | -0.53 | y | 653 | 323 | |||
