Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2017-11-19 06:19:50.0 |
| Date & Time (Local) | 1396/8/28 09:49:50.0 |

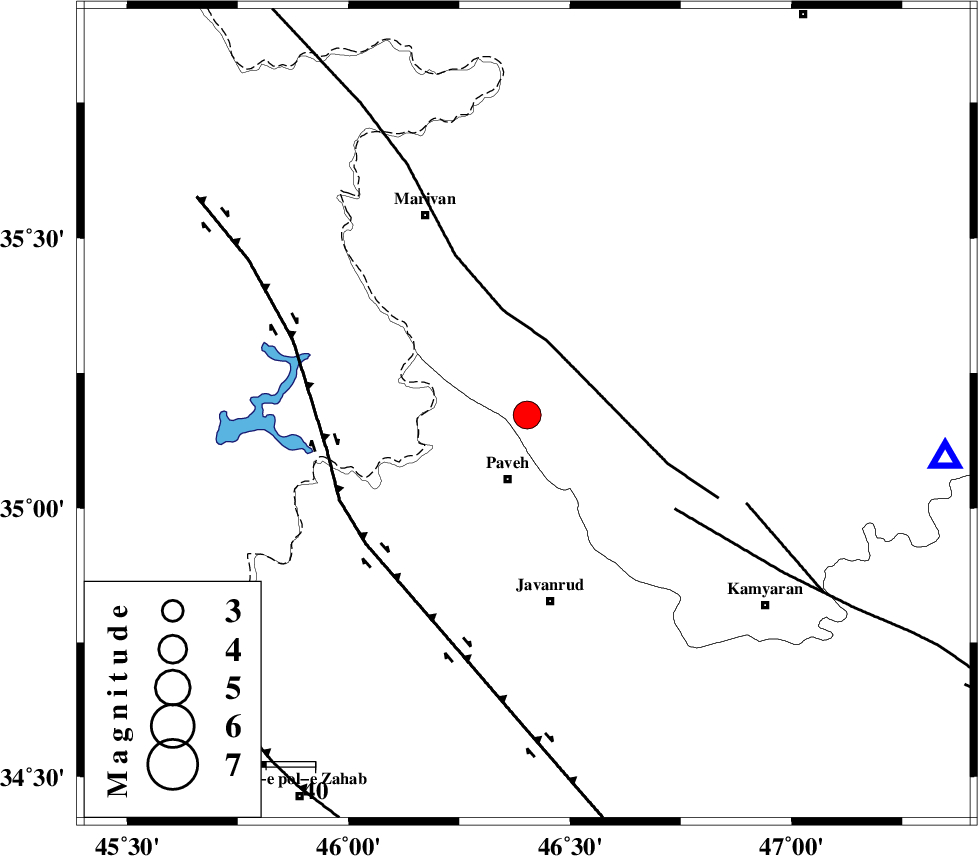

| Location | Lat:35.173 Lon: 46.403 |
| Region | Kurdistan Province, 14 km North of Paveh |
Nearest Cities |
|
| 9 km North of Zharizheh, Kurdistan Province | |
| 14 km South of Razab, Kurdistan Province | |
| 14 km North of Paveh, Kermanshah Province | |
| 14 km East of Dezavard, Kermanshah Province | |
| 15 km North East of Nodsheh, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 16 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 36 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 42 km | |
| Number of Phases | 21 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122090 | IIEES | SNGE | E | 4338.6 | 0.64 | 2017-11-19 06:20:21 | 2017-11-20 08:24:00 | n |
| 122091 | IIEES | ILBA | N | 1643.7 | 0.63 | 2017-11-19 06:20:46 | 2017-11-20 08:24:00 | n |
| 122092 | IIEES | KHMZ | E | 220.5 | 0.52 | 2017-11-19 06:21:43 | 2017-11-20 08:24:00 | n |
| 122093 | IIEES | KHMZ | N | 212.9 | 0.45 | 2017-11-19 06:21:52 | 2017-11-20 08:24:00 | n |
| 122094 | IIEES | GIDE | E | 264.9 | 0.55 | 2017-11-19 06:21:46 | 2017-11-20 08:24:00 | n |
| 122095 | IIEES | GIDE | N | 231 | 0.64 | 2017-11-19 06:21:49 | 2017-11-20 08:24:00 | n |
| 122096 | IIEES | GHVR | E | 124.5 | 0.84 | 2017-11-19 06:22:17 | 2017-11-20 08:24:00 | n |
| 122097 | IIEES | GHVR | N | 266.3 | 0.84 | 2017-11-19 06:22:17 | 2017-11-20 08:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-11-19 06:20:04 | -1.17 | y | 86.5 | 96 | |||
| IIEES | SNGE | E | Sg | E | 2017-11-19 06:20:16 | 0.08 | y | 86.5 | 96 | |||
| IIEES | ILBA | Z | Pg | E | 2017-11-19 06:20:19 | -0.77 | y | 173 | 186 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-19 06:20:42 | 0.52 | y | 173 | 186 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-19 06:20:32 | 0.26 | y | 265 | 50 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-19 06:20:41 | 0.64 | y | 338 | 101 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-19 06:20:44 | 0.43 | y | 364 | 115 | |||
| IIEES | GIDE | Z | Pn | E | 2017-11-19 06:20:45 | 0.17 | y | 371 | 57 | |||
| IIEES | THKV | Z | Pn | E | 2017-11-19 06:20:57 | 7.57 | n | 4 | 414 | 77 | ||
| IIEES | GRMI | Z | Pn | E | 2017-11-19 06:20:51 | -0.01 | y | 425 | 18 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-19 06:20:53 | 0.4 | y | 436 | 78 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-19 06:20:56 | 1.65 | n | 4 | 450 | 98 | ||
| IIEES | MAKU | Z | Pn | E | 2017-11-19 06:20:59 | -0.13 | y | 489 | 342 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-19 06:21:01 | -0.22 | y | 508 | 83 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-19 06:21:19 | 0.39 | y | 648 | 112 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-19 06:21:40 | -0.15 | y | 818 | 110 | |||
| IIEES | AHRM | Z | Pn | E | 2017-11-19 06:21:42 | -0.68 | y | 838 | 145 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-19 06:21:47 | -0.12 | y | 876 | 81 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-19 06:21:58 | -3.14 | n | 4 | 985 | 139 | ||
| IIEES | TABS | Z | Pn | E | 2017-11-19 06:22:02 | -0.08 | y | 999 | 97 | |||
| IIEES | BSRN | Z | Pn | E | 2017-11-19 06:22:33 | 1.39 | y | 1233 | 103 | |||
