Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2017-11-25 00:15:08.9 |
| Date & Time (Local) | 1396/9/4 03:45:08.9 |

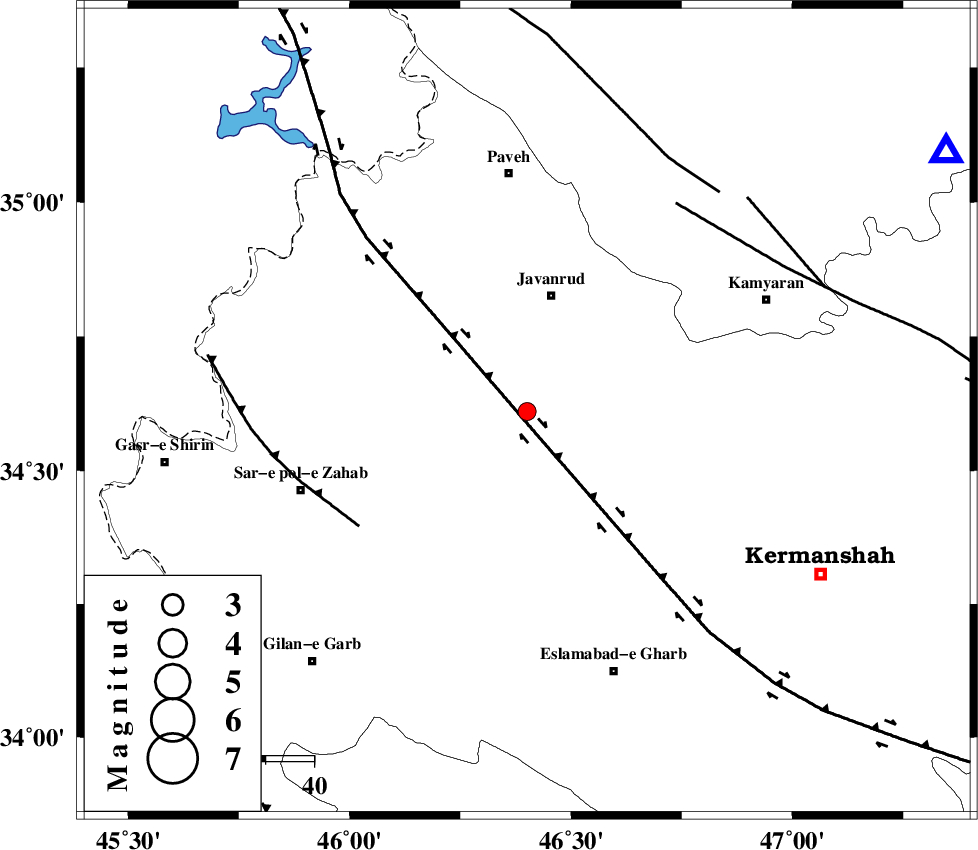

| Location | Lat:34.61 Lon: 46.401 |
| Region | Kermanshah Province, 25 km South of Javanrud |
Nearest Cities |
|
| 10 km of Dolatabad, Kermanshah Province | |
| 12 km of Mirabad, Kermanshah Province | |
| 15 km North of Zavleh olia, Kermanshah Province | |
| 17 km South of Sarukhan, Kermanshah Province | |
| 19 km North West of Kuzran, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 3 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 42 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 53 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122585 | IIEES | SNGE | N | 137.5 | 0.29 | 2017-11-25 00:15:40 | 2017-11-26 07:09:00 | n |
| 122586 | IIEES | SNGE | E | 139.3 | 0.48 | 2017-11-25 00:15:45 | 2017-11-26 07:09:00 | n |
| 122587 | IIEES | KHMZ | E | 10.3 | 0.35 | 2017-11-25 00:16:34 | 2017-11-26 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-11-25 00:15:26 | -0.05 | y | 102 | 58 | |||
| IIEES | SNGE | N | Sg | E | 2017-11-25 00:15:38 | 0 | y | 102 | 58 | |||
| IIEES | ILBA | Z | Pg | E | 2017-11-25 00:15:27 | 0.04 | y | 111 | 189 | |||
| IIEES | ILBA | N | Sg | E | 2017-11-25 00:15:41 | -0.04 | y | 111 | 189 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-25 00:15:58 | 0.04 | y | 333 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-11-25 00:15:59 | 0.01 | y | 342 | 105 | |||
