Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2017-11-27 19:36:33.7 |
| Date & Time (Local) | 1396/9/6 23:06:33.7 |

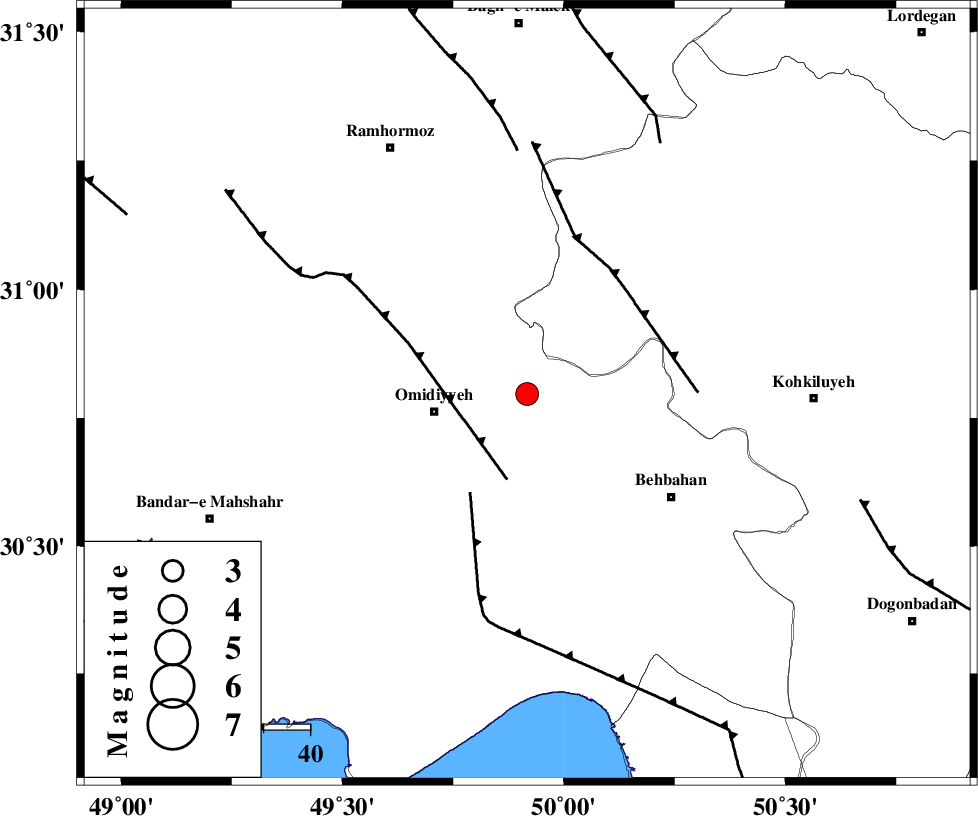

| Location | Lat:30.796 Lon: 49.917 |
| Region | Khoozestan Province, 20 km -East of Omidiyeh |
Nearest Cities |
|
| 2 km of Jolaki, Khoozestan Province | |
| 11 km of Jayzan, Khoozestan Province | |
| 13 km North of Aghajari, Khoozestan Province | |
| 19 km North East of Chah-e salem, Khoozestan Province | |
| 20 km North East of Omidiyeh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 19 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 25 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 31 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122720 | IIEES | KHMZ | E | 47.5 | 0.49 | 2017-11-27 19:38:10 | 2017-11-28 06:35:00 | n |
| 122721 | IIEES | KHMZ | N | 46 | 0.74 | 2017-11-27 19:38:15 | 2017-11-28 06:35:00 | n |
| 122722 | IIEES | ASAO | E | 19.7 | 0.65 | 2017-11-27 19:38:21 | 2017-11-28 06:35:00 | n |
| 122723 | IIEES | ASAO | N | 33.1 | 0.28 | 2017-11-27 19:38:40 | 2017-11-28 06:35:00 | n |
| 122724 | IIEES | GHVR | N | 25.4 | 0.41 | 2017-11-27 19:38:25 | 2017-11-28 06:35:00 | n |
| 122725 | IIEES | GHVR | E | 41.1 | 0.36 | 2017-11-27 19:38:25 | 2017-11-28 06:35:00 | n |
| 122726 | IIEES | YZKH | N | 18.3 | 0.81 | 2017-11-27 19:38:35 | 2017-11-28 06:35:00 | n |
| 122727 | IIEES | SNGE | E | 12.3 | 0.49 | 2017-11-27 19:38:46 | 2017-11-28 06:35:00 | n |
| 122728 | IIEES | SNGE | N | 14.1 | 0.49 | 2017-11-27 19:38:54 | 2017-11-28 06:35:00 | n |
| 122729 | IIEES | DAMV | N | 9.9 | 0.57 | 2017-11-27 19:38:52 | 2017-11-28 06:35:00 | n |
| 122730 | IIEES | DAMV | E | 9 | 0.57 | 2017-11-27 19:39:19 | 2017-11-28 06:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-27 19:37:22 | -0.08 | y | 326 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-27 19:37:25 | 0.26 | y | 353 | 50 | |||
| IIEES | GHIR | Z | Pn | E | 2017-11-27 19:37:32 | 0.16 | y | 407 | 132 | |||
| IIEES | ASAO | Z | Pn | E | 2017-11-27 19:37:33 | 0.68 | y | 416 | 1 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-27 19:37:35 | 0.68 | y | 427 | 17 | |||
| IIEES | ILBA | Z | Pn | E | 2017-11-27 19:37:39 | 0.04 | y | 470 | 313 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-27 19:37:40 | 0 | y | 478 | 67 | |||
| IIEES | SNGE | Z | Pn | E | 2017-11-27 19:37:47 | -0.22 | y | 534 | 334 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-27 19:37:52 | -0.2 | y | 569 | 19 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-27 19:37:52 | -1.35 | y | 578 | 11 | |||
| IIEES | BNDS | Z | Pn | E | 2017-11-27 19:38:10 | -0.27 | y | 716 | 120 | |||
| IIEES | TABS | Z | Pn | E | 2017-11-27 19:38:13 | -0.57 | y | 749 | 63 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-27 19:38:22 | 0.1 | y | 810 | 43 | |||
