Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2017-11-27 05:20:56.5 |
| Date & Time (Local) | 1396/9/6 08:50:56.5 |

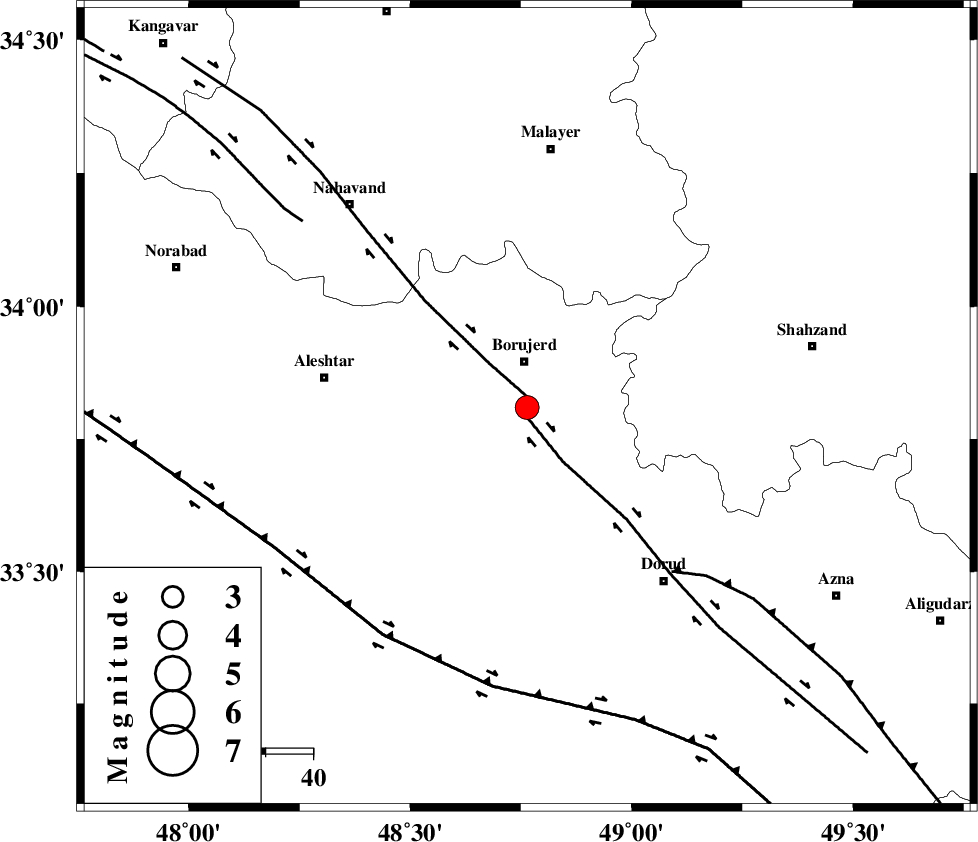

| Location | Lat:33.81 Lon: 48.764 |
| Region | Lorestan Province, 10 km of Borujerd |
Nearest Cities |
|
| 4 km of Hemmatabad, Lorestan Province | |
| 9 km of Valanjerd, Lorestan Province | |
| 10 km of Borujerd, Lorestan Province | |
| 12 km North East of Pellekan-e sofla, Lorestan Province | |
| 19 km South East of Bon dizeh, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 1 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 2 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 46 km | |
| Number of Phases | 16 |
| RMS | 0.9 |
| Number of Stations | 14 |
| Error in Latitude | >9.6 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122762 | IIEES | KHMZ | E | 614.2 | 0.33 | 2017-11-27 05:21:30 | 2017-11-28 07:35:00 | n |
| 122763 | IIEES | KHMZ | N | 761.3 | 0.36 | 2017-11-27 05:21:30 | 2017-11-28 07:35:00 | n |
| 122764 | IIEES | ASAO | N | 807.4 | 0.44 | 2017-11-27 05:21:41 | 2017-11-28 07:35:00 | n |
| 122765 | IIEES | ASAO | E | 752.4 | 0.39 | 2017-11-27 05:21:41 | 2017-11-28 07:35:00 | n |
| 122766 | IIEES | SNGE | E | 223.5 | 0.57 | 2017-11-27 05:21:59 | 2017-11-28 07:35:00 | n |
| 122767 | IIEES | GHVR | N | 263.6 | 0.24 | 2017-11-27 05:22:11 | 2017-11-28 07:35:00 | n |
| 122768 | IIEES | GHVR | E | 369.8 | 0.49 | 2017-11-27 05:22:12 | 2017-11-28 07:35:00 | n |
| 122769 | IIEES | THKV | N | 69.5 | 0.75 | 2017-11-27 05:22:24 | 2017-11-28 07:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2017-11-27 05:21:13 | -1.59 | y | 111 | 94 | |||
| IIEES | ASAO | Z | Pg | E | 2017-11-27 05:21:18 | -1.59 | y | 142 | 55 | |||
| IIEES | SNGE | Z | Pg | E | 2017-11-27 05:21:26 | -1.95 | n | 4 | 193 | 318 | ||
| IIEES | SNGE | N | Sg | E | 2017-11-27 05:21:51 | -0.57 | y | 193 | 318 | |||
| IIEES | ILBA | Z | Pn | E | 2017-11-27 05:21:33 | -0.13 | y | 238 | 266 | |||
| IIEES | GHVR | Z | Pn | E | 2017-11-27 05:21:34 | 0.76 | y | 241 | 71 | |||
| IIEES | THKV | Z | Pn | E | 2017-11-27 05:21:41 | -0.63 | y | 303 | 39 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-11-27 05:21:44 | 0.85 | y | 317 | 359 | |||
| IIEES | CHTH | Z | Pn | E | 2017-11-27 05:21:44 | 0.65 | y | 317 | 42 | |||
| IIEES | DAMV | Z | Pn | E | 2017-11-27 05:21:49 | 0.61 | y | 356 | 55 | |||
| IIEES | DAMV | E | S | E | 2017-11-27 05:22:27 | 0.51 | y | 356 | 55 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-27 05:21:54 | 1.37 | y | 393 | 105 | |||
| IIEES | GRMI | Z | Pn | E | 2017-11-27 05:22:14 | 0.7 | y | 560 | 352 | |||
| IIEES | YZKH | Z | Pn | E | 2017-11-27 05:22:14 | -0.39 | y | 566 | 105 | |||
| IIEES | SHRO | Z | Pn | E | 2017-11-27 05:22:32 | 0.54 | y | 706 | 68 | |||
| IIEES | TABS | Z | Pn | E | 2017-11-27 05:22:40 | -0.33 | y | 774 | 89 | |||
