Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2017-12-01 19:27:09.0 |
| Date & Time (Local) | 1396/9/10 22:57:09.0 |

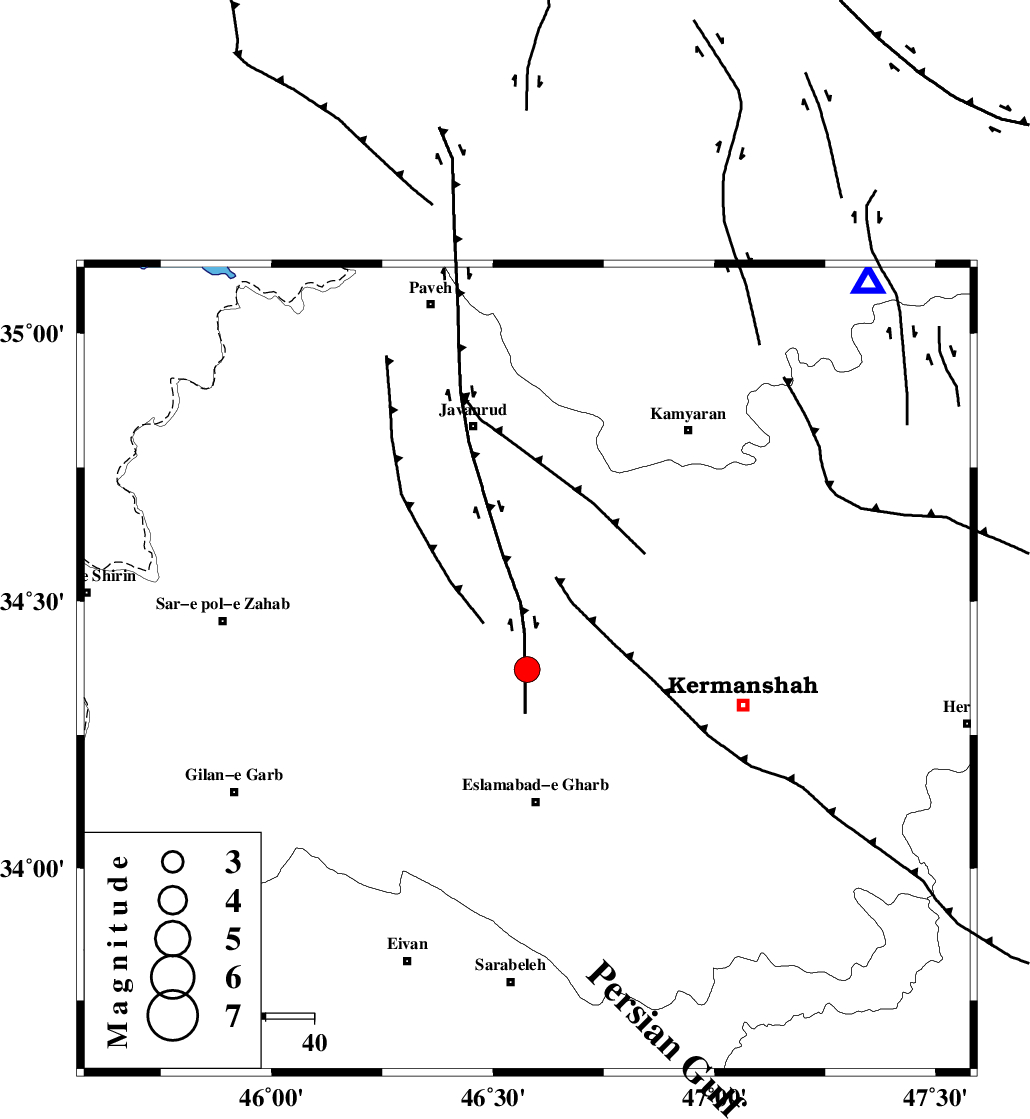

| Location | Lat:34.372 Lon: 46.577 |
| Region | Kermanshah Province, 28 km North of Eslam Abad-E-Gharb |
Nearest Cities |
|
| 14 km North West of Chaqanarges, Kermanshah Province | |
| 16 km East of Gahvareh, Kermanshah Province | |
| 17 km South of Kuzran, Kermanshah Province | |
| 19 km North of Hasanabad, Kermanshah Province | |
| 24 km North West of Rebat, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 51 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 68 km | |
| Number of Phases | 16 |
| RMS | 0.7 |
| Number of Stations | 14 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 9.7 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123021 | IIEES | ILBA | N | 2506.8 | 0.42 | 2017-12-01 19:27:39 | 2017-12-02 06:44:00 | n |
| 123022 | IIEES | ASAO | N | 134.9 | 0.58 | 2017-12-01 19:28:52 | 2017-12-02 06:44:00 | n |
| 123023 | IIEES | GIDE | E | 114.8 | 0.69 | 2017-12-01 19:29:25 | 2017-12-02 06:44:00 | n |
| 123024 | IIEES | GIDE | N | 99.1 | 0.8 | 2017-12-01 19:29:33 | 2017-12-02 06:44:00 | n |
| 123025 | IIEES | GHVR | N | 87.3 | 0.73 | 2017-12-01 19:29:25 | 2017-12-02 06:44:00 | n |
| 123026 | IIEES | GHVR | E | 104.8 | 0.65 | 2017-12-01 19:29:30 | 2017-12-02 06:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-12-01 19:27:23 | -0.78 | y | 89.7 | 202 | |||
| IIEES | SNGE | Z | Pg | E | 2017-12-01 19:27:24 | -2.54 | n | 4 | 107 | 41 | ||
| IIEES | SNGE | N | Sg | E | 2017-12-01 19:27:39 | -1.15 | y | 107 | 41 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-01 19:27:57 | 0.99 | y | 317 | 86 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-01 19:27:56 | 0.27 | y | 319 | 36 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-01 19:27:56 | 0.28 | y | 320 | 102 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-01 19:28:09 | 0.96 | y | 414 | 46 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-01 19:28:09 | -0.32 | y | 428 | 65 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-01 19:28:10 | 0.59 | y | 429 | 87 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-01 19:28:12 | -0.22 | y | 448 | 66 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-01 19:28:19 | -0.04 | y | 506 | 13 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-01 19:28:20 | 0.01 | y | 512 | 73 | |||
| IIEES | MAKU | Z | Pn | E | 2017-12-01 19:28:29 | 0.52 | y | 578 | 344 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-01 19:28:31 | 0 | y | 604 | 105 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-01 19:28:51 | -1.42 | y | 777 | 104 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-01 19:29:42 | -3.4 | n | 4 | 1198 | 128 | ||
